text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

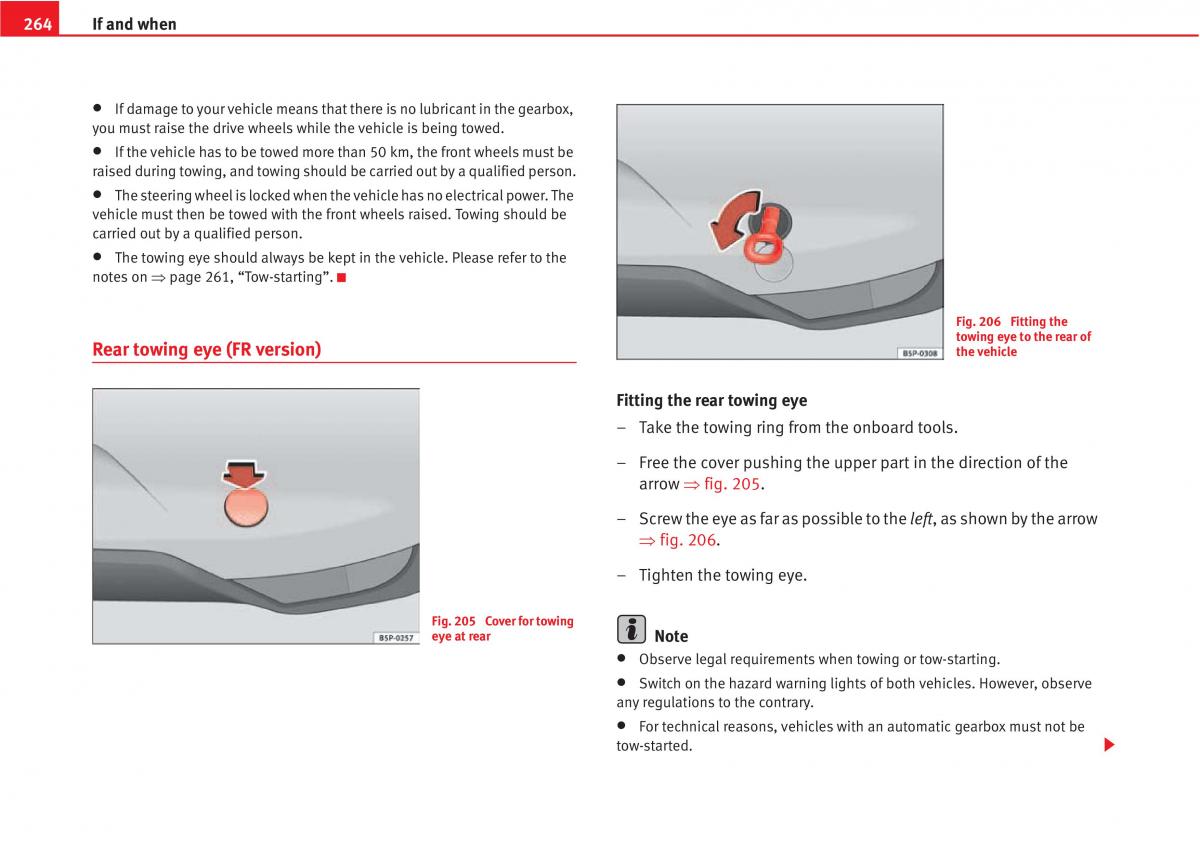

264 If and when • If damage to your vehicle means that there is no lubricant in the gearbox, you must raise the drive wheels while the vehicle is being towed. • If the vehicle has to be towed more than 50 km, the front wheels must be raised during towing, and towing should be carried out by a qualified person. • The steering wheel is locked when the vehicle has no electrical power. The vehicle must then be towed with the front wheels raised. Towing should be carried out by a qualified person. • The towing eye should always be kept in the vehicle. Please refer to the notes on page261, “Tow-starting”. Fig. 206 Fitting the Rear towing eye (FR version) towing eye to the rear of the vehicle Fitting the rear towing eye – Take the towing ring from the onboard tools. – Free the cover pushing the upper part in the direction of the arrow fig. 205. – Screw the eye as far as possible to the left, as shown by the arrow fig. 206. – Tighten the towing eye. Fig. 205 Cover for towing eye at rear Note • Observe legal requirements when towing or tow-starting. • Switch on the hazard warning lights of both vehicles. However, observe any regulations to the contrary. • For technical reasons, vehicles with an automatic gearbox must not be tow-started.
