from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

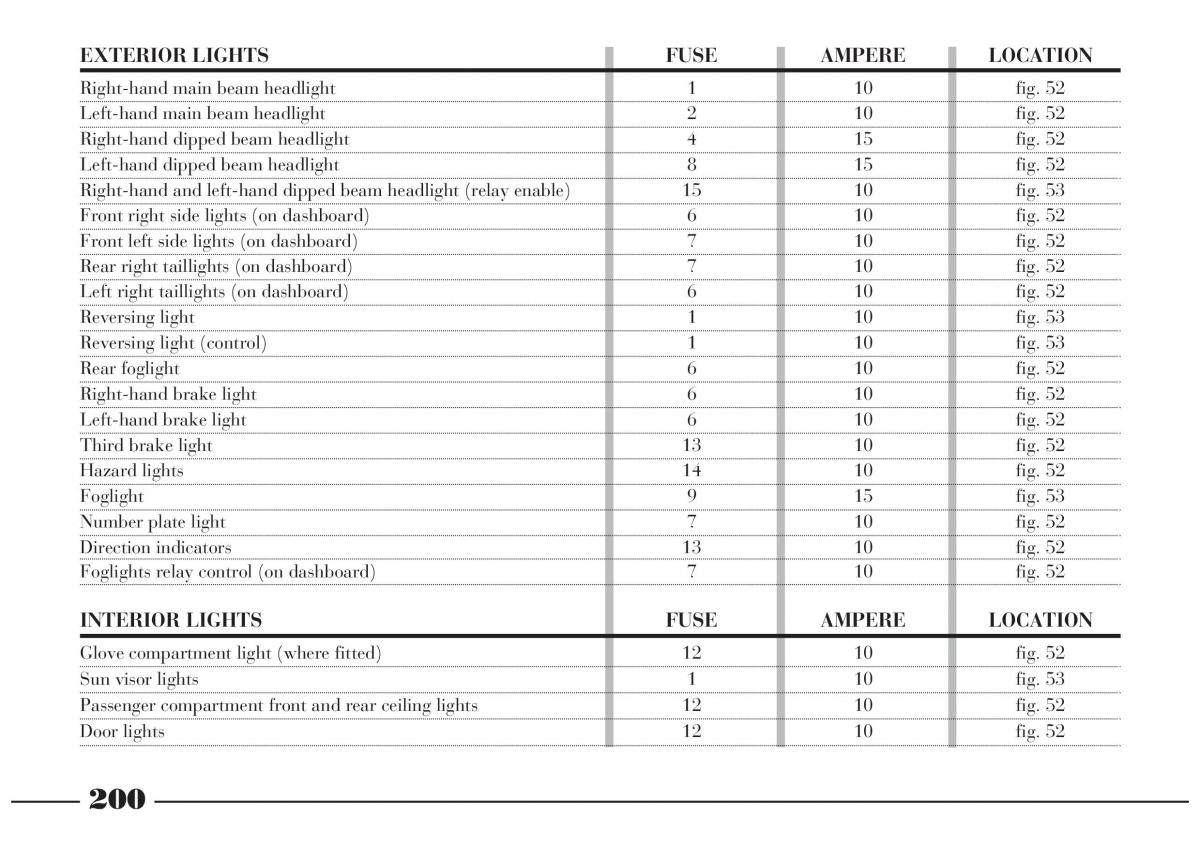

EXTERIOR LIGHTS FUSE AMPERE LOCATION
Right-hand main beam headlight 1 10 fig. 52
Left-hand main beam headlight 2 10 fig. 52
Right-hand dipped beam headlight 4 15 fig. 52
Left-hand dipped beam headlight 8 15 fig. 52
Right-hand and left-hand dipped beam headlight (relay enable)1510fig. 53
Front right side lights (on dashboard) 6 10 fig. 52
Front left side lights (on dashboard) 7 10 fig. 52
Rear right taillights (on dashboard) 7 10 fig. 52
Left right taillights (on dashboard) 6 10 fig. 52
Reversing light 1 10 fig. 53
Reversing light (control) 1 10 fig. 53
Rear foglight 6 10 fig. 52
Right-hand brake light 6 10 fig. 52
Left-hand brake light 6 10 fig. 52
Third brake light 13 10 fig. 52
Hazard lights 14 10 fig. 52
Foglight 9 15 fig. 53
Number plate light 7 10 fig. 52
Direction indicators 13 10 fig. 52
Foglights relay control (on dashboard) 7 10 fig. 52
INTERIOR LIGHTS FUSE AMPERE LOCATION
Glove compartment light (where fitted) 12 10 fig. 52
Sun visor lights 1 10 fig. 53
Passenger compartment front and rear ceiling lights 12 10 fig. 52
Door lights 12 10 fig. 52
200
