text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

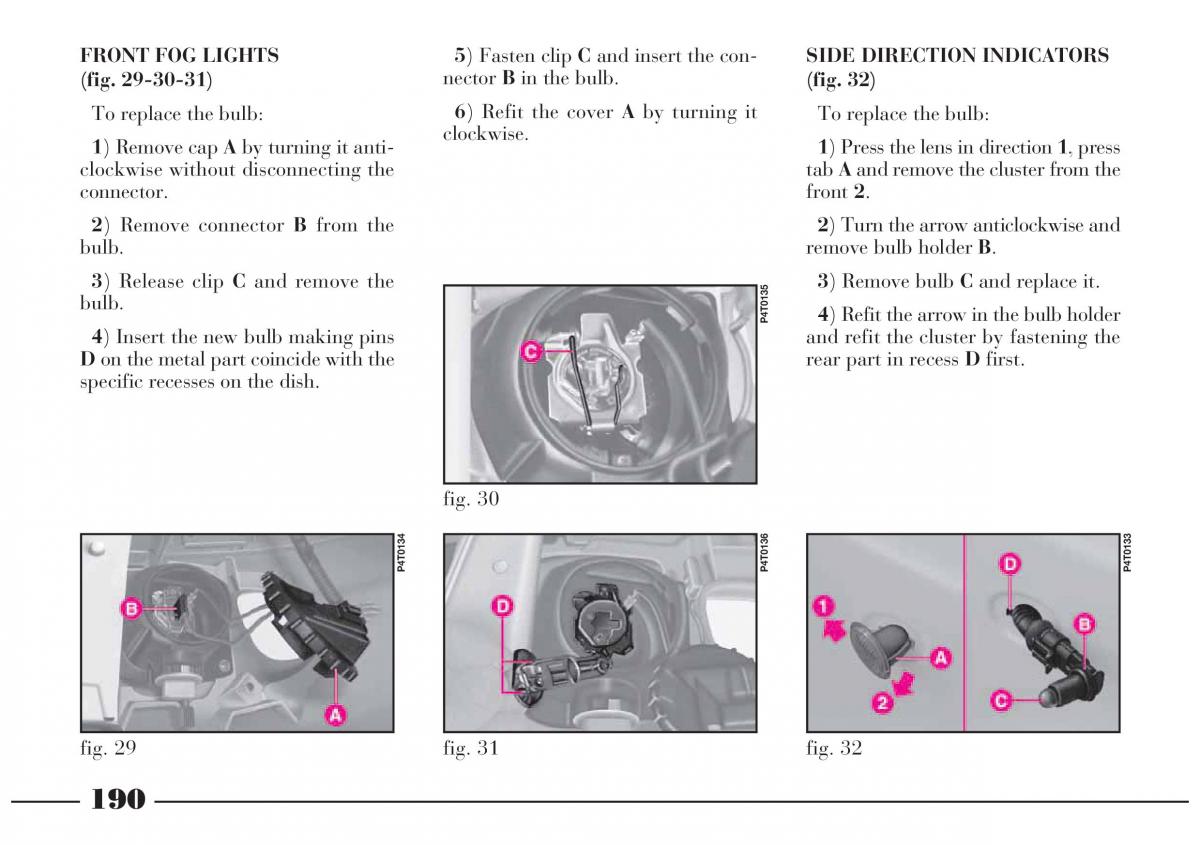

FRONT FOG LIGHTS 5) Fasten clip C and insert the con- SIDE DIRECTION INDICATORS (fig. 29-30-31) nector B in the bulb. (fig. 32) To replace the bulb: 6) Refit the cover A by turning it To replace the bulb: 1) Remove cap A by turning it anti- clockwise. 1) Press the lens in direction 1, press clockwise without disconnecting the tab A and remove the cluster from the connector. front 2. 2) Remove connector B from the 2) Turn the arrow anticlockwise and bulb. remove bulb holder B. 3) Release clip C and remove the 3) Remove bulb C and replace it. bulb. 4) Refit the arrow in the bulb holder P4T0135 4) Insert the new bulb making pins and refit the cluster by fastening the Don the metal part coincide with the rear part in recess Dfirst. specific recesses on the dish. fig. 30 P4T0134 P4T0136 P4T0133 fig. 29 fig. 31 fig. 32 190
