text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

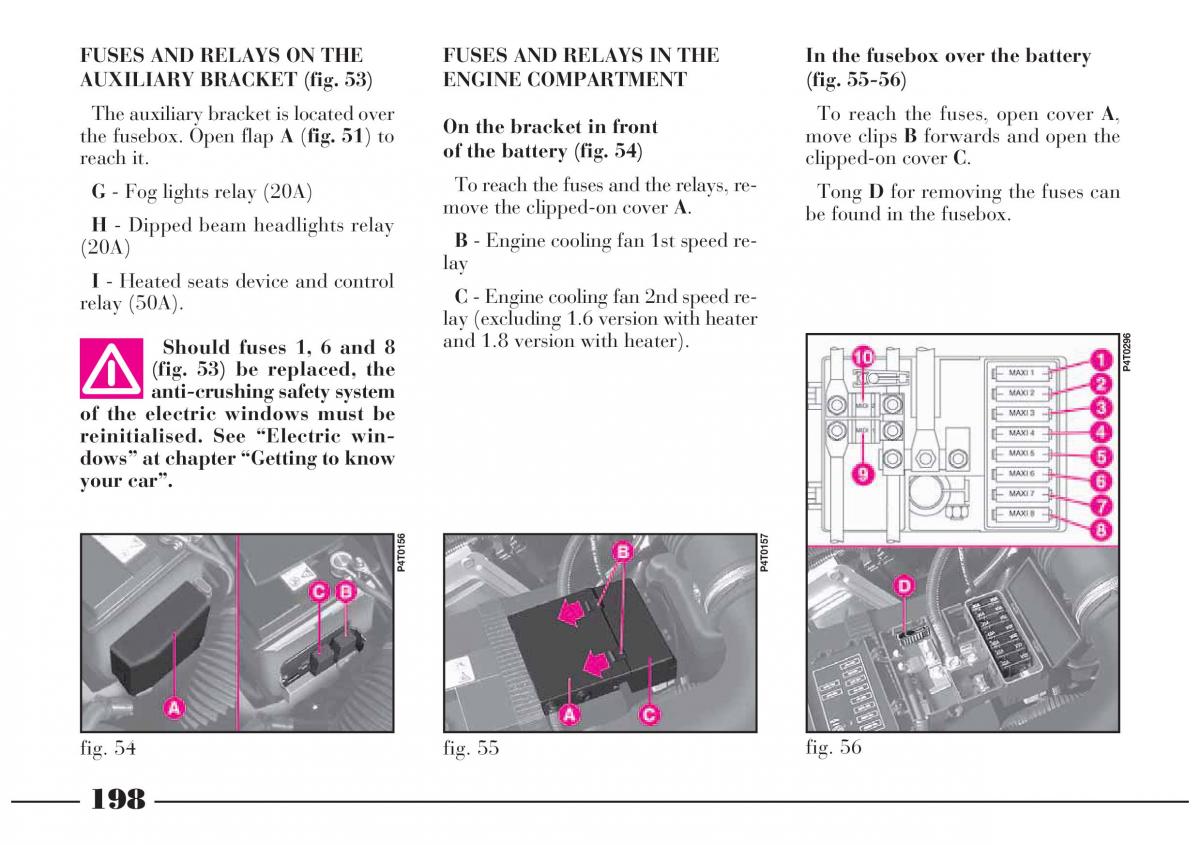

FUSES AND RELAYS ON THE FUSES AND RELAYS IN THE In the fusebox over the battery AUXILIARY BRACKET (fig. 53) ENGINE COMPARTMENT (fig. 55-56) The auxiliary bracket is located over On the bracket in front To reach the fuses, open cover A, the fusebox. Open flap A (fig. 51) to of the battery (fig. 54) move clips B forwards and open the reach it. clipped-on cover C. G- Fog lights relay (20A) To reach the fuses and the relays, re- Tong D for removing the fuses can move the clipped-on cover A. be found in the fusebox. H- Dipped beam headlights relay (20A) B- Engine cooling fan 1st speed re- lay I - Heated seats device and controlC- Engine cooling fan 2nd speed re- relay (50A). lay (excluding 1.6 version with heater and 1.8 version with heater). Should fuses 1, 6 and 8 (fig. 53) be replaced, the P4T0296 anti-crushing safety system of the electric windows must be reinitialised. See “Electric win- dows at chapter “Getting to know your car. P4T0156 P4T0157 fig. 54 fig. 55 fig. 56 198
