text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

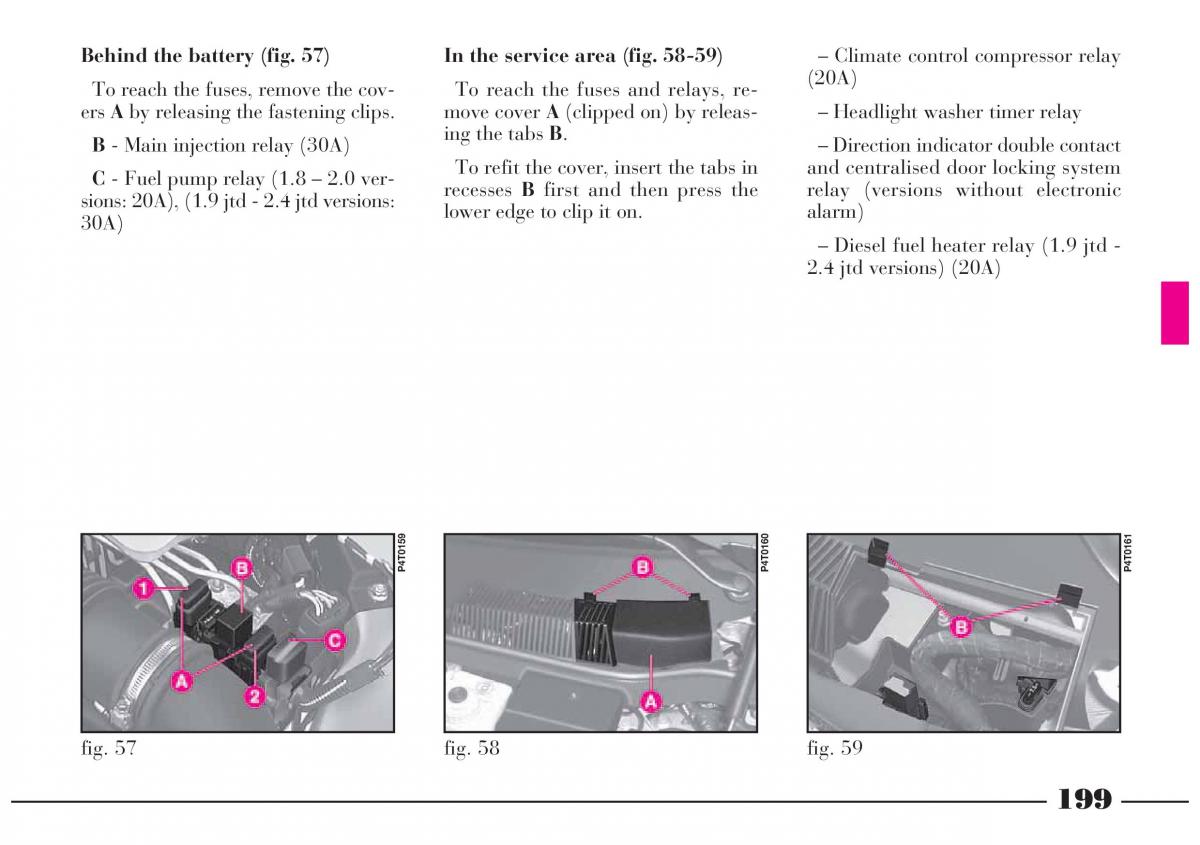

Behind the battery (fig. 57) In the service area (fig. 58-59) – Climate control compressor relay (20A) To reach the fuses, remove the cov- To reach the fuses and relays, re- ers A by releasing the fastening clips. move cover A (clipped on) by releas- – Headlight washer timer relay B- Main injection relay (30A) ing the tabs B. – Direction indicator double contact C- Fuel pump relay (1.8 – 2.0 ver- To refit the cover, insert the tabs in and centralised door locking system sions: 20A), (1.9 jtd - 2.4 jtd versions: recessesB first and then press therelay (versions without electronic 30A) lower edge to clip it on. alarm) – Diesel fuel heater relay (1.9 jtd - 2.4 jtd versions) (20A) P4T0159 P4T0160 P4T0161 fig. 57 fig. 58 fig. 59 199
