owners manual Lancia Lybra

owners manual Lancia Lybra - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005 - Lancia Lybra owners manual EN

Document: pdf (4.22 MB) 298 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

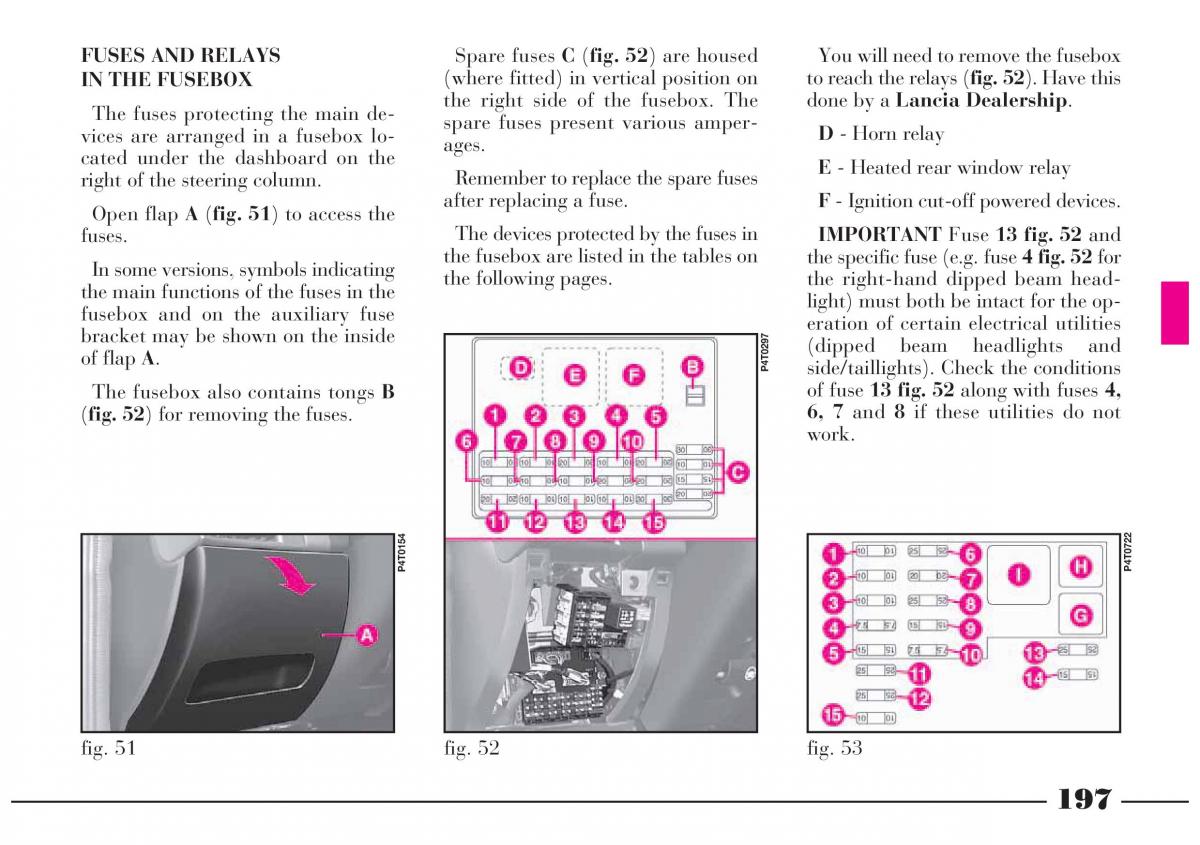

FUSES AND RELAYS Spare fuses C (fig. 52) are housed You will need to remove the fusebox IN THE FUSEBOX (where fitted) in vertical position onto reach the relays ( fig. 52 ). Have this the right side of the fusebox. Thedone by a Lancia Dealership . The fuses protecting the main de- spare fuses present various amper- vices are arranged in a fusebox lo- D- Horn relay ages. cated under the dashboard on the E- Heated rear window relay right of the steering column. Remember to replace the spare fuses Open flap A (fig. 51) to access the after replacing a fuse. F- Ignition cut-off powered devices. fuses. The devices protected by the fuses in IMPORTANTFuse13 fig. 52and In some versions, symbols indicating the fusebox are listed in the tables on the specific fuse (e.g. fuse4 fig. 52 for the main functions of the fuses in the the following pages. the right-hand dipped beam head- light) must both be intact for the op- fusebox and on the auxiliary fuse bracket may be shown on the inside eration of certain electrical utilities of flap A. (dipped beam headlights and P4T0297side/taillights). Check the conditions The fusebox also contains tongs B of fuse 13 fig. 52 along with fuses 4, (fig. 52) for removing the fuses. 6, 7and 8 if these utilities do not work. P4T0154 P4T0722 fig. 51 fig. 52 fig. 53 197
