from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

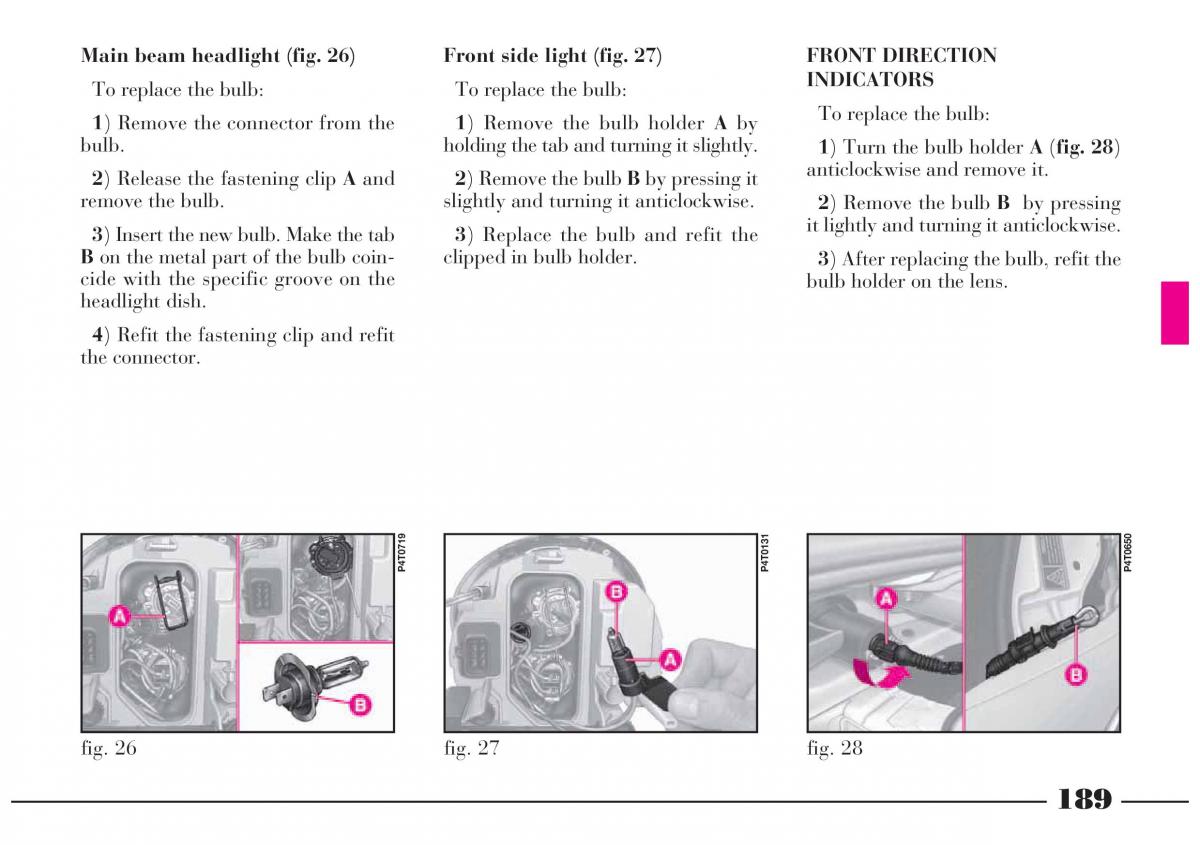

Main beam headlight (fig. 26) Front side light (fig. 27) FRONT DIRECTION
To replace the bulb: To replace the bulb: INDICATORS
To replace the bulb:
1) Remove the bulb holder A by
1) Remove the connector from the
bulb. holding the tab and turning it slightly. 1) Turn the bulb holder A (fig. 28)
2) Release the fastening clip A and 2) Remove the bulb Bby pressing it anticlockwise and remove it.
remove the bulb. slightly and turning it anticlockwise. 2) Remove the bulb B by pressing
it lightly and turning it anticlockwise.
3) Insert the new bulb. Make the tab 3) Replace the bulb and refit the
Bon the metal part of the bulb coin- clipped in bulb holder. 3) After replacing the bulb, refit the
cide with the specific groove on the bulb holder on the lens.
headlight dish.
4) Refit the fastening clip and refit
the connector.
P4T0719 P4T0131 P4T0650
fig. 26 fig. 27 fig. 28
189
