owners manual Lancia Lybra

owners manual Lancia Lybra - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005 - Lancia Lybra owners manual EN

Document: pdf (4.22 MB) 298 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

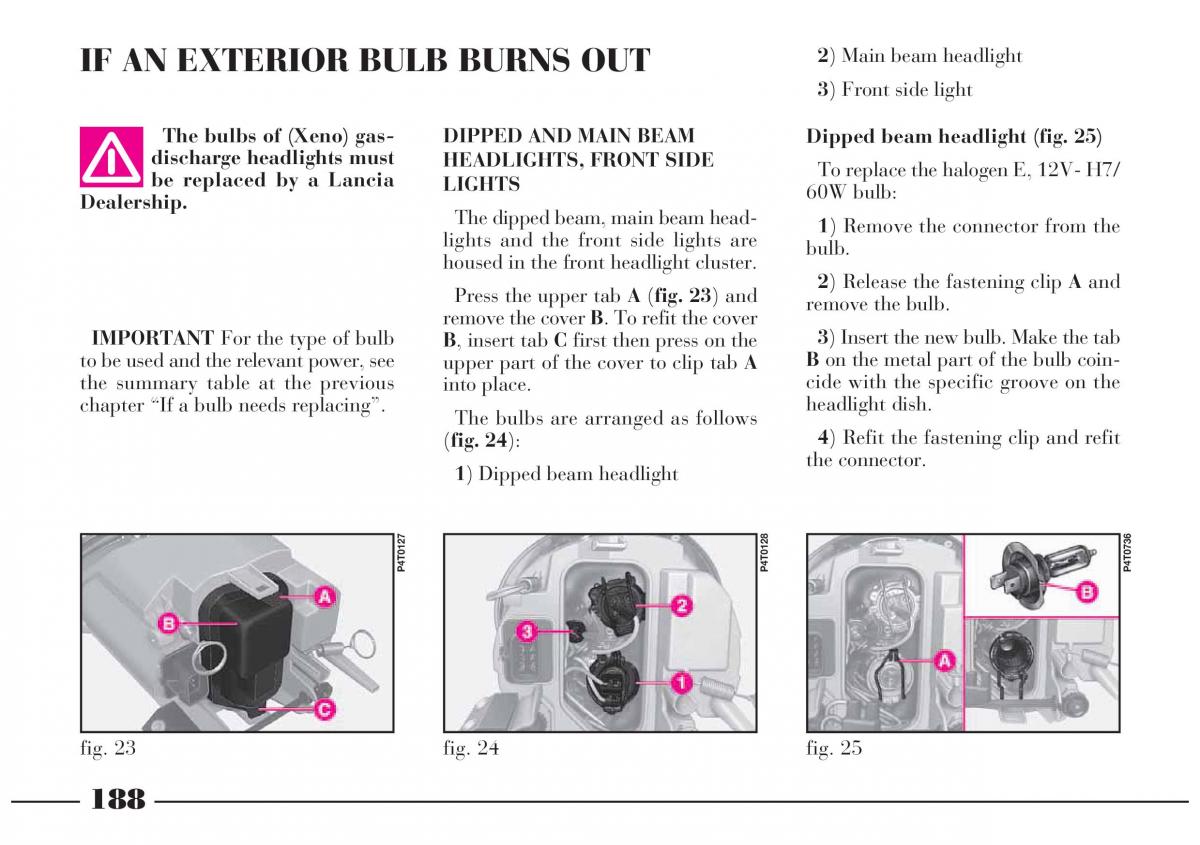

IF AN EXTERIOR BULB BURNS OUT 2) Main beam headlight 3) Front side light The bulbs of (Xeno) gas- DIPPED AND MAIN BEAM Dipped beam headlight (fig. 25) discharge headlights must HEADLIGHTS, FRONT SIDE To replace the halogen E, 12V- H7/ be replaced by a Lancia Dealership. LIGHTS 60W bulb: The dipped beam, main beam head- 1) Remove the connector from the lights and the front side lights are housed in the front headlight cluster. bulb. Press the upper tab A (fig. 23) and 2) Release the fastening clip A and remove the cover B. To refit the cover remove the bulb. IMPORTANT For the type of bulb B, insert tab C first then press on the 3) Insert the new bulb. Make the tab to be used and the relevant power, see upper part of the cover to clip tab A Bon the metal part of the bulb coin- the summary table at the previous cide with the specific groove on the into place. chapter “If a bulb needs replacing”. headlight dish. The bulbs are arranged as follows (fig. 24): 4) Refit the fastening clip and refit 1) Dipped beam headlight the connector. P4T0127 P4T0128 P4T0736 fig. 23 fig. 24 fig. 25 188
