owners manual Nissan Skyline

owners manual Nissan Skyline - year of production: 1998, 1999, 2000, 2001, 2002 - Nissan Skyline R34 workshop service manual EN

Document: pdf (13.3 MB) 230 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

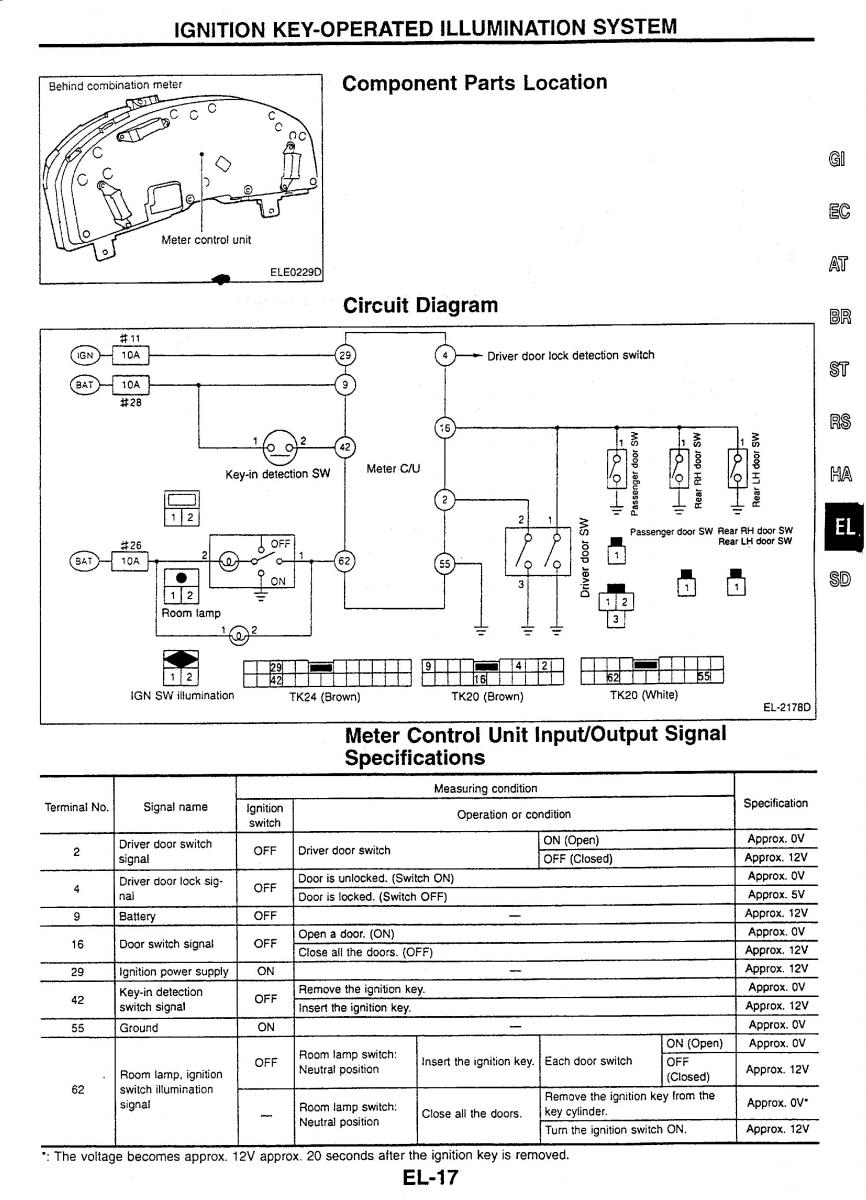

IGNITION KEY-OPERATED ILLUMINATION SYSTEM Behind combination meter Component Parts Location Meter control unit Circuit Diagram 7, . . & Driver door lock detection switch T r 2 1 Passenger door SW Rear RH door SW 326 ' a Rear LH door SW - - 3 Room lamp IGN SW illumination TK24 (Brown) TK20 (Brown) TK20 (White) EL-2 178D I 1 Meter Control Unit Input/Output Signal J Specifications I Measuring condition I Terminal No. Signal name Ignition Operation or condition Specification switch Driver door switch OFF Driver door switch ON (Open) Approx. OV signal OFF (Closed) Approx. 12V Driver door lock sig- OFF Door is unlocked. (Switch ON) Approx. OV nal Door is locked. (Switch OFF) Approx. 5V Battery OFF - Approx. 12V Door switch signal OFF Open a door. (ON) Approx. OV Close all the doors. (OFF) Approx. 12V Ignition power supply ON - Approx. 12V Key-in detection OFF Remove the ignition key. Approx. OV switch signal Insert the ignition key. - Approx. 12V Ground ON Approx. OV Room lamp switch: ON (Open) Approx. OV Room lamp, ignition OFF Neutral position Insert the ignition key. Each door switch OFF Approx. 12V switch illumination (Closed) signal Remove the ignition key from the Approx. OV' - lamp switch: Close all the doors. key cylinder. Neutral position Turn the ignition switch ON. Approx. 12V
