owners manual Lancia Lybra

owners manual Lancia Lybra - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005 - Lancia Lybra owners manual EN

Document: pdf (4.22 MB) 298 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Lancia Lybra, year of production 1999 - 2005:

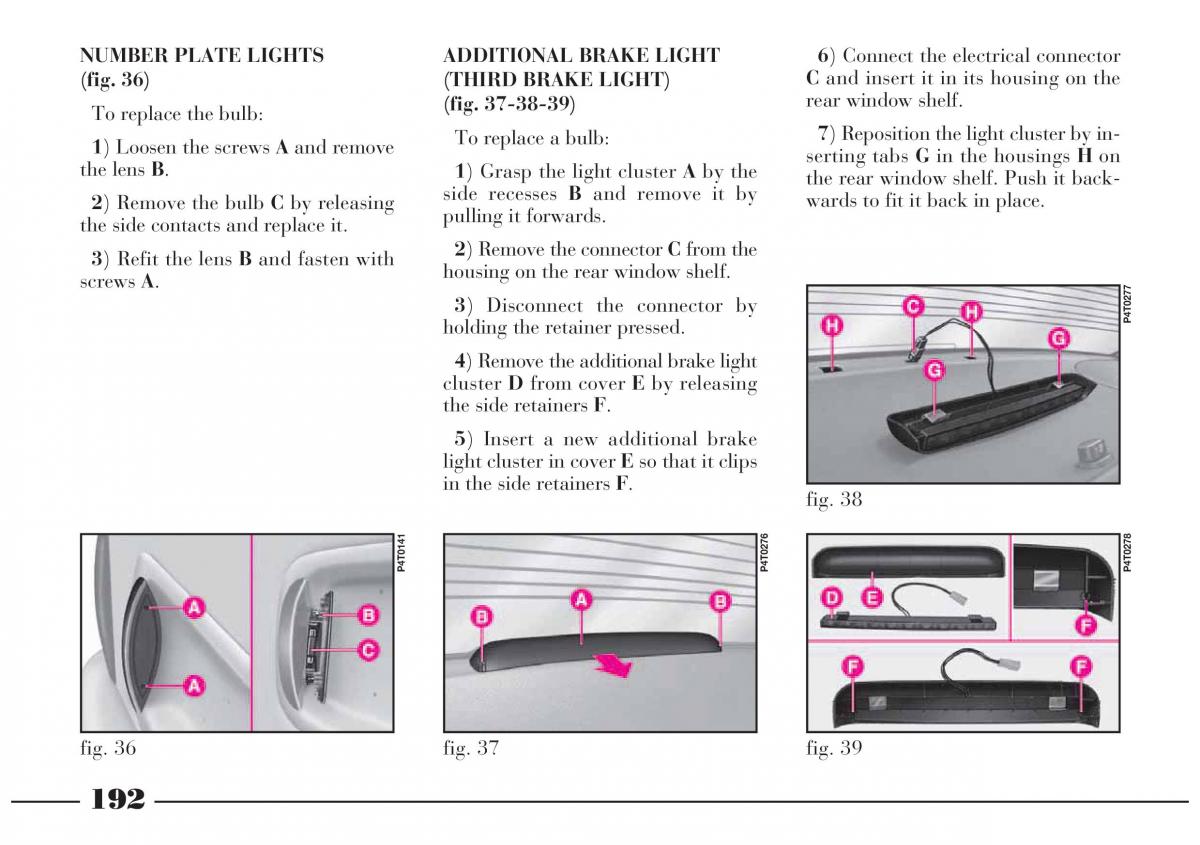

NUMBER PLATE LIGHTS ADDITIONAL BRAKE LIGHT 6) Connect the electrical connector (fig. 36) (THIRD BRAKE LIGHT) Cand insert it in its housing on the To replace the bulb: (fig. 37-38-39) rear window shelf. 1) Loosen the screws Aand remove To replace a bulb: 7) Reposition the light cluster by in- the lens B. 1) Grasp the light cluster A by the serting tabs G in the housings H on the rear window shelf. Push it back- side recesses B and remove it by 2) Remove the bulb C by releasing pulling it forwards. wards to fit it back in place. the side contacts and replace it. 3) Refit the lens B and fasten with 2) Remove the connector Cfrom the screws A. housing on the rear window shelf. 3) Disconnect the connector by holding the retainer pressed. P4T0277 4) Remove the additional brake light clusterD from cover E by releasing the side retainers F. 5) Insert a new additional brake light cluster in cover Eso that it clips in the side retainers F. fig. 38 P4T0141 P4T0276 P4T0278 fig. 36 fig. 37 fig. 39 192
