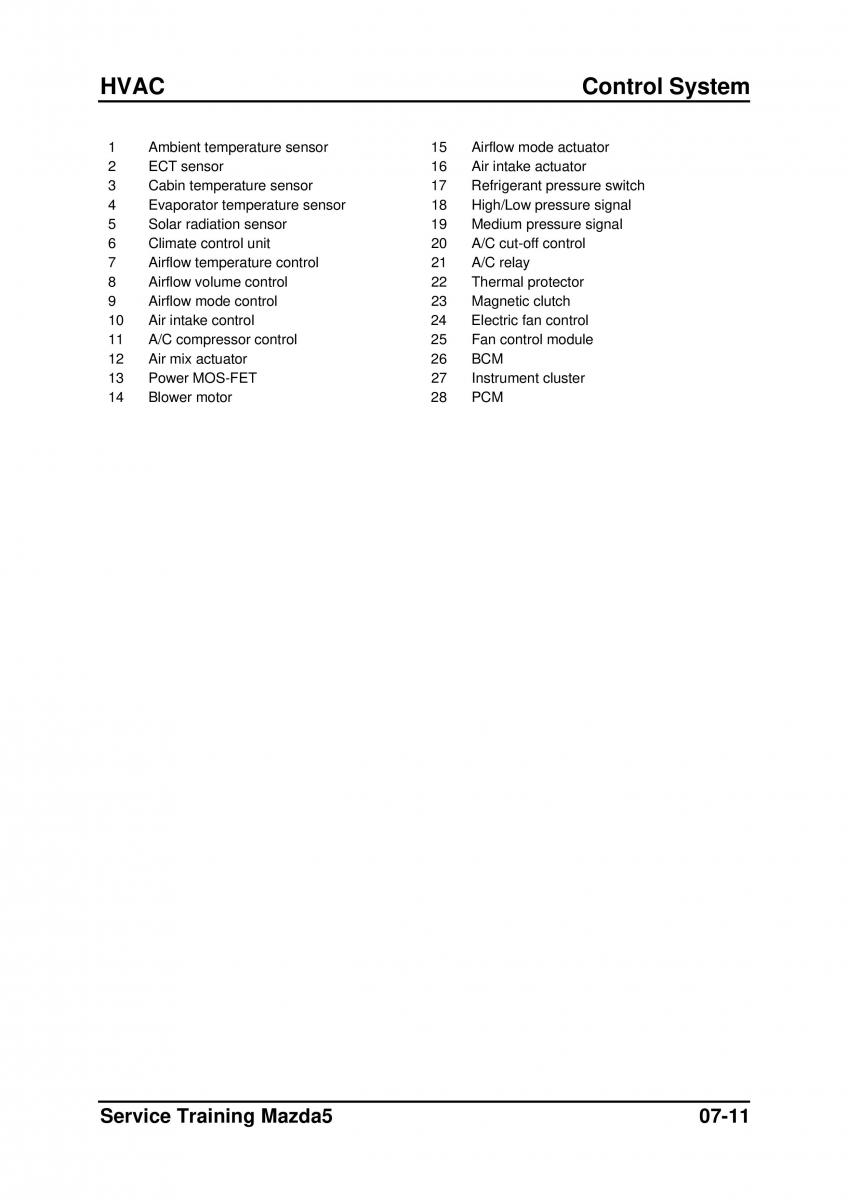

HVAC Control System 1 Ambient temperature sensor 15 Airflow mode actuator 2 ECT sensor 16 Air intake actuator 3 Cabin temperature sensor 17 Refrigerant pressure switch 4 Evaporator temperature sensor 18 High/Low pressure signal 5 Solar radiation sensor 19 Medium pressure signal 6 Climate control unit 20 A/C cut-off control 7 Airflow temperature control 21 A/C relay 8 Airflow volume control 22 Thermal protector 9 Airflow mode control 23 Magnetic clutch 10 Air intake control 24 Electric fan control 11 A/C compressor control 25 Fan control module 12 Air mix actuator 26 BCM 13 Power MOS-FET 27 Instrument cluster 14 Blower motor 28 PCM Service Training Mazda5 07-11
