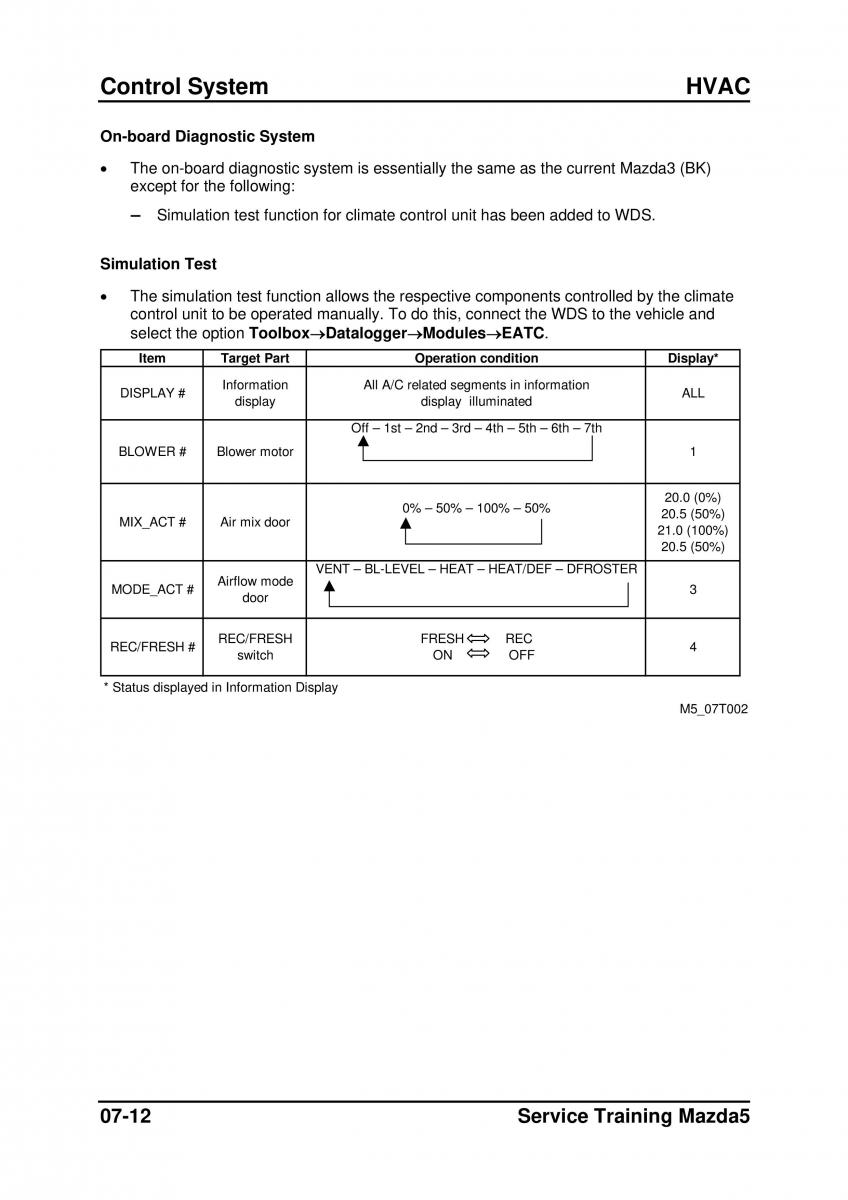

Control System HVAC
On-board Diagnostic System
• The on-board diagnostic system is essentially the same as the current Mazda3 (BK)
except for the following:
– Simulation test function for climate control unit has been added to WDS.
Simulation Test
• The simulation test function allows the respective components controlled by the climate
control unit to be operated manually. To do this, connect the WDS to the vehicle and
select the option Toolbox→Datalogger→Modules→EATC.
Item Target Part Operation condition Display*
DISPLAY #Information All A/C related segments in information ALL
display display illuminated
Off – 1st – 2nd – 3rd – 4th – 5th – 6th – 7th
BLOWER #Blower motor 1
0% – 50% – 100% – 50% 20.0 (0%)
MIX_ACT #Air mix door 20.5 (50%)
21.0 (100%)
20.5 (50%)
Airflow modeVENT – BL-LEVEL – HEAT – HEAT/DEF – DFROSTER
MODE_ACT # door 3
REC/FRESH #REC/FRESH FRESH REC 4
switch ON OFF
* Status displayed in Information Display
M5_07T002
07-12 Service Training Mazda5
