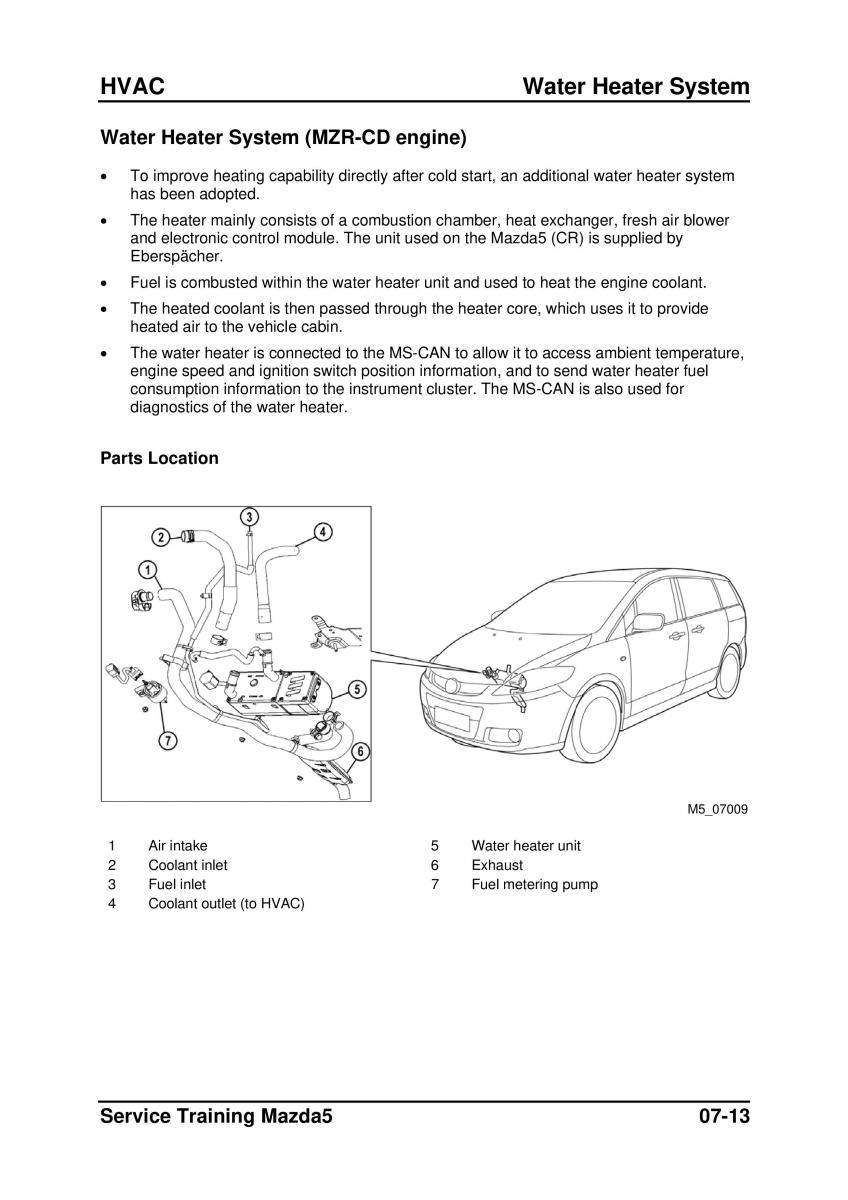

HVAC Water Heater System
Water Heater System (MZR-CD engine)
• To improve heating capability directly after cold start, an additional water heater system
has been adopted.
• The heater mainly consists of a combustion chamber, heat exchanger, fresh air blower
and electronic control module. The unit used on the Mazda5 (CR) is supplied by
Eberspächer.
• Fuel is combusted within the water heater unit and used to heat the engine coolant.
• The heated coolant is then passed through the heater core, which uses it to provide
heated air to the vehicle cabin.
• The water heater is connected to the MS-CAN to allow it to access ambient temperature,
engine speed and ignition switch position information, and to send water heater fuel
consumption information to the instrument cluster. The MS-CAN is also used for
diagnostics of the water heater.
Parts Location
M5_07009
1 Air intake 5 Water heater unit
2 Coolant inlet 6 Exhaust
3 Fuel inlet 7 Fuel metering pump
4 Coolant outlet (to HVAC)
Service Training Mazda5 07-13
