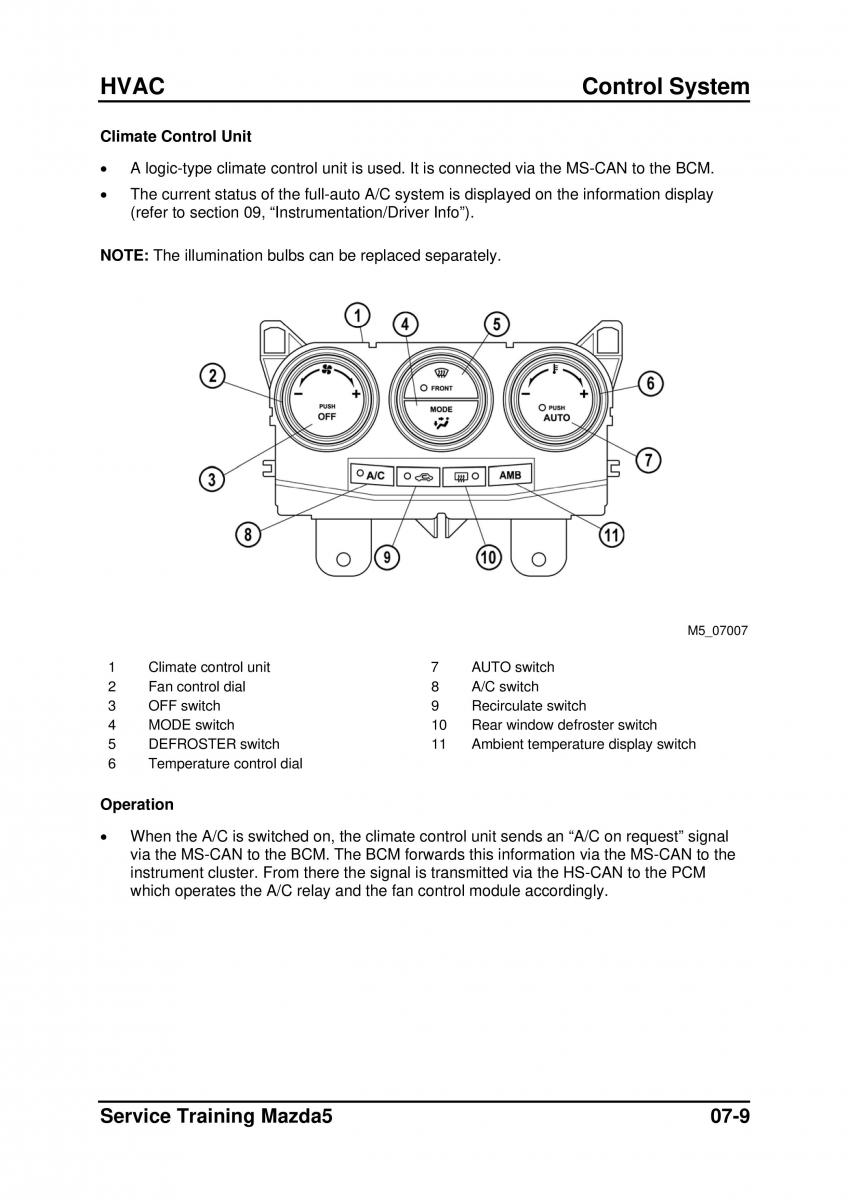

HVAC Control System
Climate Control Unit
• A logic-type climate control unit is used. It is connected via the MS-CAN to the BCM.
• The current status of the full-auto A/C system is displayed on the information display
(refer to section 09, “Instrumentation/Driver Info”).
NOTE: The illumination bulbs can be replaced separately.
M5_07007
1 Climate control unit 7 AUTO switch
2 Fan control dial 8 A/C switch
3 OFF switch 9 Recirculate switch
4 MODE switch 10 Rear window defroster switch
5 DEFROSTER switch 11 Ambient temperature display switch
6 Temperature control dial
Operation
• When the A/C is switched on, the climate control unit sends an “A/C on request” signal
via the MS-CAN to the BCM. The BCM forwards this information via the MS-CAN to the
instrument cluster. From there the signal is transmitted via the HS-CAN to the PCM
which operates the A/C relay and the fan control module accordingly.
Service Training Mazda5 07-9
