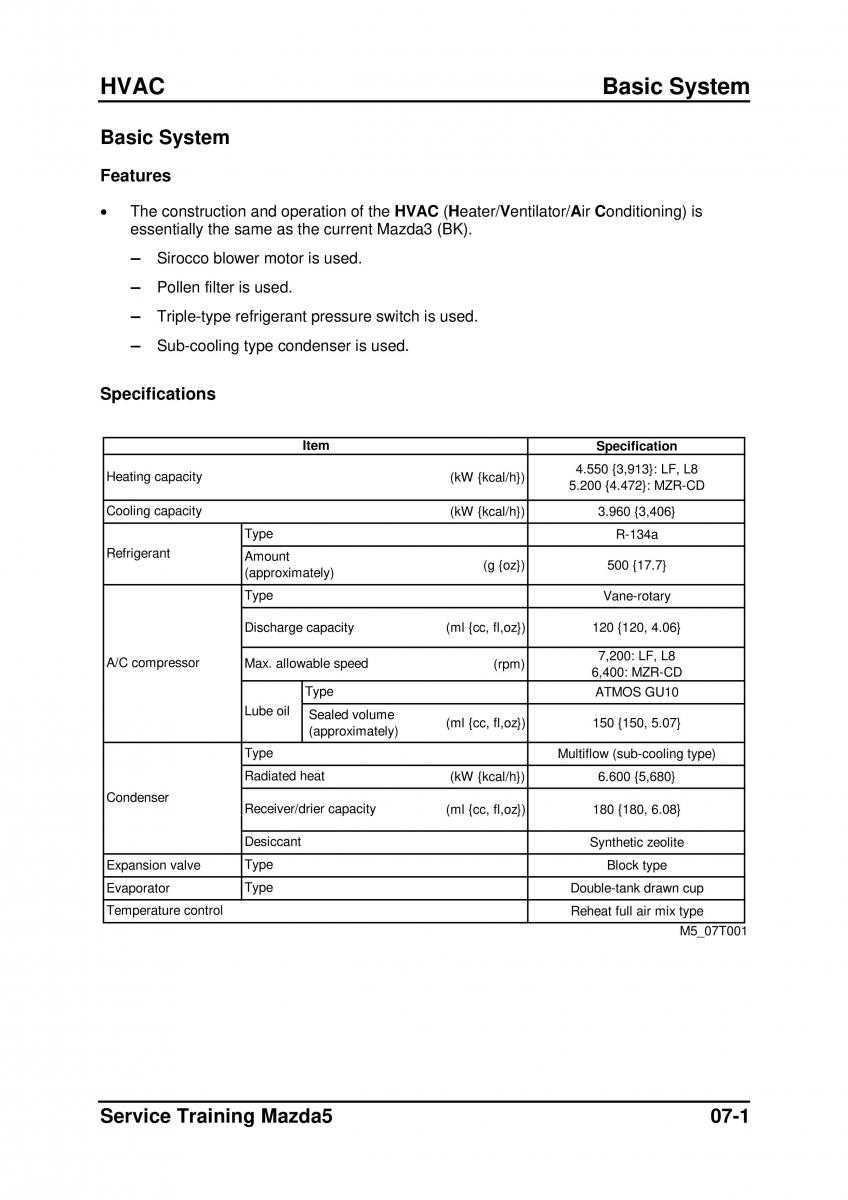

text version of content this owner's manual page from owners manual to the vehicle Mazda 5, year of production 2005 - 2010:
HVAC Basic System
Basic System
Features
• The construction and operation of the HVAC (Heater/Ventilator/Air Conditioning) is
essentially the same as the current Mazda3 (BK).
– Sirocco blower motor is used.
– Pollen filter is used.
– Triple-type refrigerant pressure switch is used.
– Sub-cooling type condenser is used.
Specifications
Item Specification
4.550 {3,913}: LF, L8
Heating capacity
(kW {kcal/h})5.200 {4.472}: MZR-CD
Cooling capacity
(kW {kcal/h}) 3.960 {3,406}
Type R-134a
Refrigerant Amount (g {oz}) 500 {17.7}
(approximately)
Type Vane-rotary
Discharge capacity (ml {cc, fl,oz})120 {120, 4.06}
A/C compressorMax. allowable speed (rpm) 7,200: LF, L8
6,400: MZR-CD
Type ATMOS GU10
Lube oil Sealed volume (ml {cc, fl,oz})150 {150, 5.07}
(approximately)
Type Multiflow (sub-cooling type)
Radiated heat (kW {kcal/h}) 6.600 {5,680}
Condenser Receiver/drier capacity(ml {cc, fl,oz})180 {180, 6.08}
Desiccant Synthetic zeolite
Expansion valveType Block type
Evaporator Type Double-tank drawn cup
Temperature control Reheat full air mix type
M5_07T001
