Audi A4 B8 owners manual page 177

text version of content this owner's manual page from owners manual to the vehicle Audi A4, year of production 2008 - 2015:

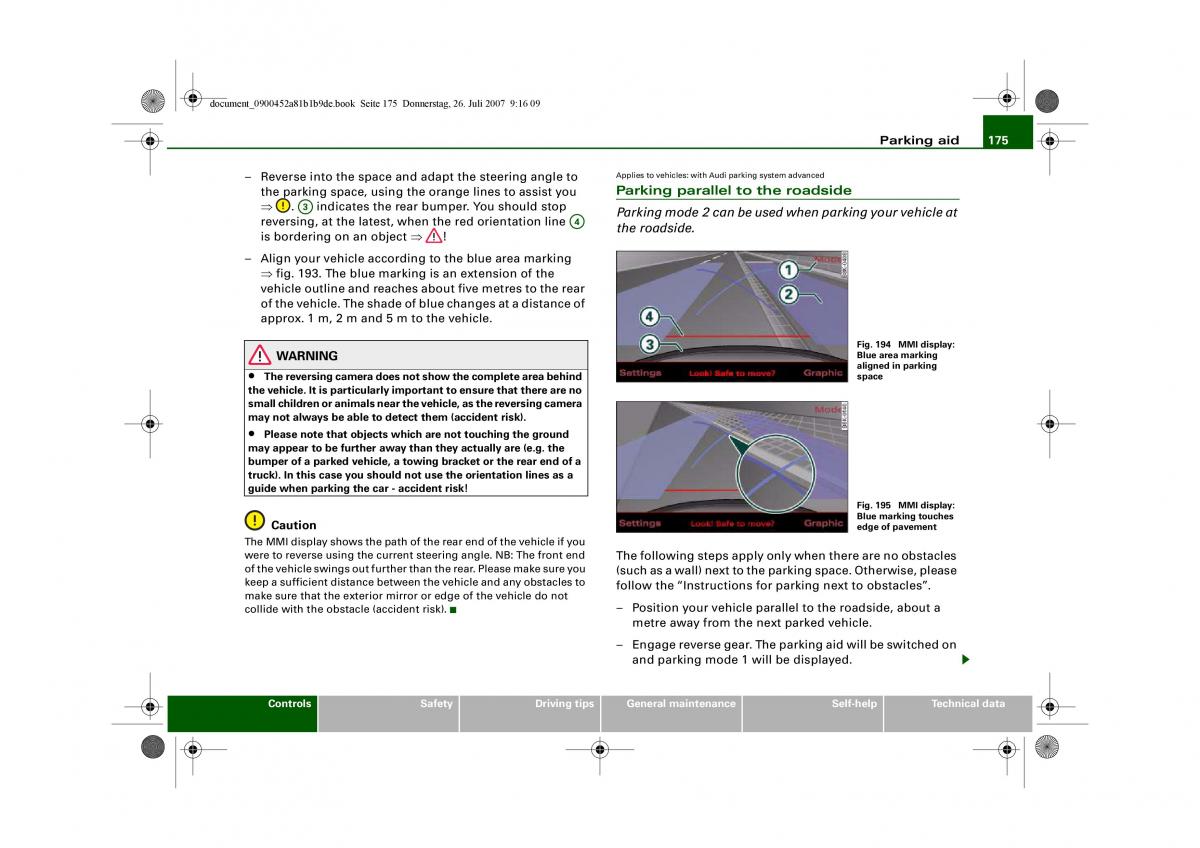

document_0900452a81b1b9de.book Seite 175 Donnerstag, 26. Juli 2007 9:16 09 Parking aid 175 – Reverse into the space and adapt the steering angle to Applies to vehicles: with Audi parking system advanced the parking space, using the orange lines to assist you Parking parallel to the roadside ⇒ . 3 indicates the rear bumper. You should stop A Parking mode 2 can be used when parking your vehicle at reversing, at the latest, when the red orientation line 4 A the roadside. is bordering on an object ⇒ ! – Align your vehicle according to the blue area marking ⇒fig.193. The blue marking is an extension of the vehicle outline and reaches about five metres to the rear of the vehicle. The shade of blue changes at a distance of approx. 1m, 2m and 5m to the vehicle. Fig. 194 MMI display: WARNING Blue area marking aligned in parking • The reversing camera does not show the complete area behind space the vehicle. It is part icularly important to ensure that there are no small children or animals near the vehicle, as the reversing camera may not always be able to detect them (accident risk). • Please note that objects which are not touching the ground may appear to be further away than they actually are (e.g. the bumper of a parked vehicle, a towing bracket or the rear end of a truck). In this case you should not use the orientation lines as a guide when parking the car - accident risk! Fig. 195 MMI display: Caution Blue marking touches edge of pavement The MMI display shows the path of the rear end of the vehicle if you were to reverse using the current steering angle. NB: The front end The following steps apply only when there are no obstacles of the vehicle swings out further than the rear. Please make sure you (such as a wall) next to the parking space. Otherwise, please keep a sufficient distance between the vehicle and any obstacles to follow the “Instructions for parking next to obstacles”. make sure that the exterior mirror or edge of the vehicle do not collide with the obstacle (accident risk). – Position your vehicle parallel to the roadside, about a metre away from the next parked vehicle. – Engage reverse gear. The parking aid will be switched on and parking mode 1 will be displayed. Controls Safety Driving tips General maintenance Self-help Technical data
