document_0900452a81b1b9de.book Seite 174 Donnerstag, 26. Juli 2007 9:16 09

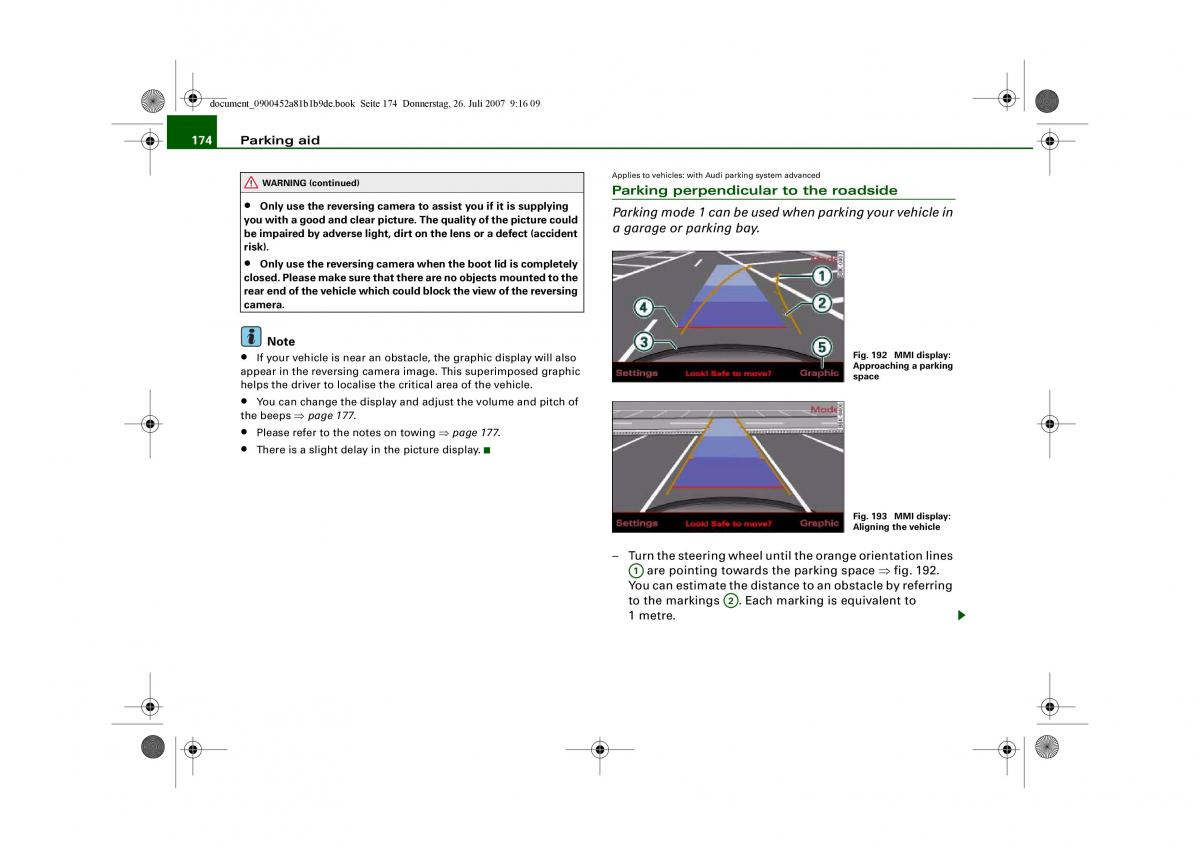

174 Parking aid
WARNING (continued) Applies to vehicles: with Audi parking system advanced
Parking perpendicular to the roadside
• Only use the reversing camera to assist you if it is supplying Parking mode 1 can be used when parking your vehicle in
you with a good and clear picture. The quality of the picture could a garage or parking bay.
be impaired by adverse light, dirt on the lens or a defect (accident
risk).
• Only use the reversing camera when the boot lid is completely
closed. Please make sure that th ere are no objects mounted to the
rear end of the vehicle which coul d block the view of the reversing
camera.
Note
• If your vehicle is near an obstacle, the graphic display will also Fig. 192 MMI display:
appear in the reversing camera image. This superimposed graphic Approaching a parking
helps the driver to localise the critical area of the vehicle. space
• You can change the display and adjust the volume and pitch of
the beeps ⇒ page 177.
• Please refer to the notes on towing ⇒ page 177.
• There is a slight delay in the picture display.
Fig. 193 MMI display:
Aligning the vehicle
– Turn the steering wheel until the orange orientation lines
1 are pointing towards the parking space ⇒ fig. 192.
A
You can estimate the distance to an obstacle by referring
to the markings 2 . Each marking is equivalent to
A
1metre.
