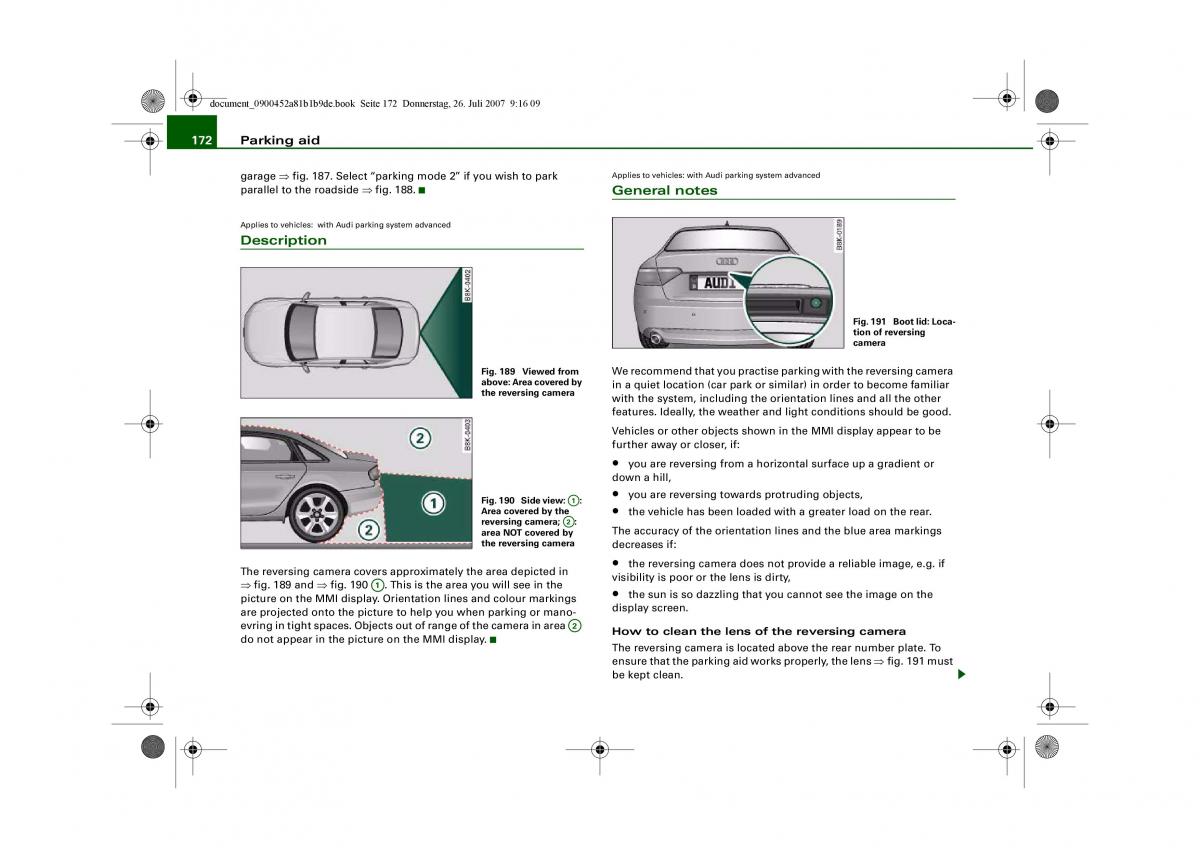

document_0900452a81b1b9de.book Seite 172 Donnerstag, 26. Juli 2007 9:16 09 172 Parking aid garage ⇒fig. 187. Select “parking mode 2” if you wish to park Applies to vehicles: with Audi parking system advanced parallel to the roadside ⇒ fig. 188. General notes Applies to vehicles: with Audi parking system advanced Description Fig. 191 Boot lid: Loca- tion of reversing camera Fig. 189 Viewed from We recommend that you practise parking with the reversing camera above: Area covered by in a quiet location (car park or similar) in order to become familiar the reversing camera with the system, including the orientation lines and all the other features. Ideally, the weather and light conditions should be good. Vehicles or other objects shown in the MMI display appear to be further away or closer, if: • you are reversing from a horizontal surface up a gradient or down a hill, 1 • you are reversing towards protruding objects, Fig. 190 Side view: A: Area covered by the • the vehicle has been loaded with a greater load on the rear. 2 reversing camera; A: The accuracy of the orientation lines and the blue area markings area NOT covered by the reversing camera decreases if: The reversing camera covers approximately the area depicted in • the reversing camera does not provide a reliable image, e.g. if visibility is poor or the lens is dirty, ⇒fig.189 and ⇒fig. 190 1 . This is the area you will see in the A • the sun is so dazzling that you cannot see the image on the picture on the MMI display. Orientation lines and colour markings display screen. are projected onto the picture to help you when parking or mano- evring in tight spaces. Objects out of range of the camera in area 2 A How to clean the lens of the reversing camera do not appear in the picture on the MMI display. The reversing camera is located above the rear number plate. To ensure that the parking aid works properly, the lens ⇒fig.191 must be kept clean.
