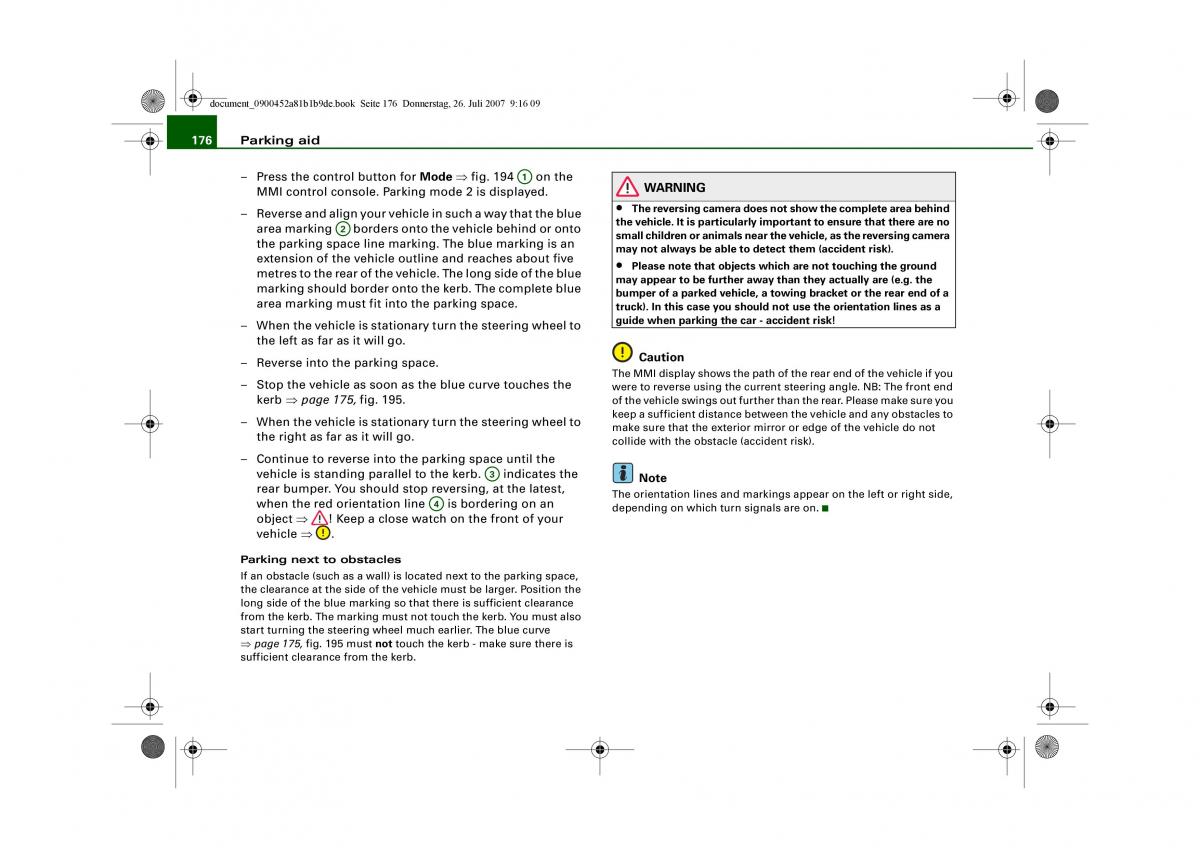

document_0900452a81b1b9de.book Seite 176 Donnerstag, 26. Juli 2007 9:16 09 176 Parking aid 1 – Press the control button for Mode ⇒ fig. 194 on the A WARNING MMI control console. Parking mode 2 is displayed. – Reverse and align your vehicle in such a way that the blue • The reversing camera does not show the complete area behind area marking 2 borders onto the vehicle behind or onto the vehicle. It is part icularly important to ensure that there are no A small children or animals near the vehicle, as the reversing camera the parking space line marking. The blue marking is an may not always be able to detect them (accident risk). extension of the vehicle outline and reaches about five • Please note that objects which are not touching the ground metres to the rear of the vehicle. The long side of the blue may appear to be further away than they actually are (e.g. the marking should border onto the kerb. The complete blue bumper of a parked vehicle, a towing bracket or the rear end of a area marking must fit into the parking space. truck). In this case you should not use the orientation lines as a – When the vehicle is stationary turn the steering wheel to guide when parking the car - accident risk! the left as far as it will go. – Reverse into the parking space. Caution The MMI display shows the path of the rear end of the vehicle if you – Stop the vehicle as soon as the blue curve touches the were to reverse using the current steering angle. NB: The front end kerb ⇒ page 175, fig. 195. of the vehicle swings out further th an the rear. Please make sure you – When the vehicle is stationary turn the steering wheel to keep a sufficient distance between the vehicle and any obstacles to the right as far as it will go. make sure that the exterior mirror or edge of the vehicle do not collide with the obstacle (accident risk). – Continue to reverse into the parking space until the vehicle is standing parallel to the kerb. 3 indicates the A Note rear bumper. You should stop reversing, at the latest, The orientation lines and markings appear on the left or right side, when the red orientation line 4 is bordering on an A depending on which turn signals are on. object ⇒ ! Keep a close watch on the front of your vehicle ⇒ . Parking next to obstacles If an obstacle (such as a wall) is located next to the parking space, the clearance at the side of the vehicle must be larger. Position the long side of the blue marking so that there is sufficient clearance from the kerb. The marking must not touch the kerb. You must also start turning the steering wheel much earlier. The blue curve ⇒page175, fig. 195 must not touch the kerb - make sure there is sufficient clearance from the kerb.
