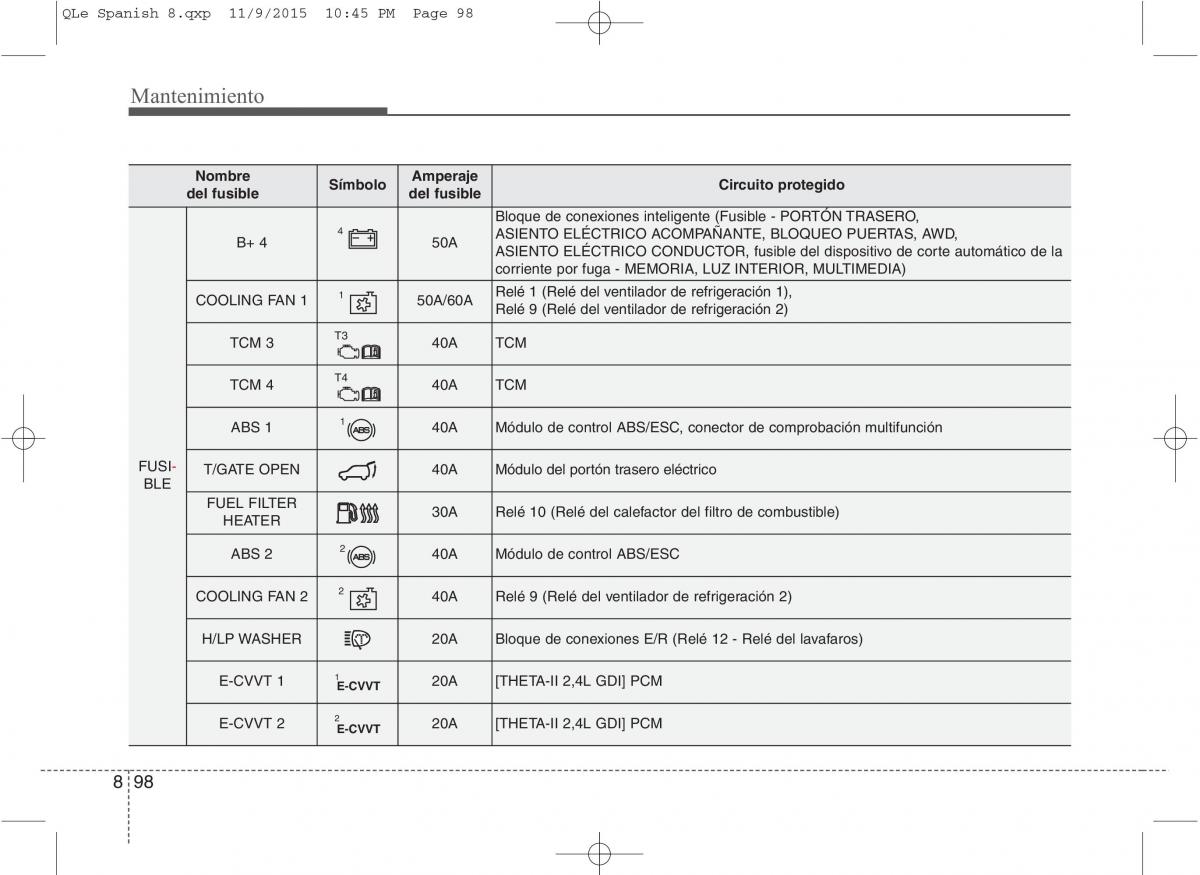

QLe Spanish 8.qxp 11/9/2015 10:45 PM Page 98
Mantenimiento
Nombre Símbolo Amperaje Circuito protegido
del fusible del fusible
Bloque de conexiones inteligente (Fusible - PORTÓN TRASERO,
4 ASIENTO ELÉCTRICO ACOMPAÑANTE, BLOQUEO PUERTAS, AWD,
B+ 4 50A ASIENTO ELÉCTRICO CONDUCTOR, fusible del dispositivo de corte automático de la
corriente por fuga - MEMORIA, LUZ INTERIOR, MULTIMEDIA)
COOLING FAN 1 1 50A/60A Relé 1 (Relé del ventilador de refrigeración 1),
Relé 9 (Relé del ventilador de refrigeración 2)
TCM 3 T3 40A TCM
TCM 4 T4 40A TCM
ABS 1 1 40A Módulo de control ABS/ESC, conector de comprobación multifunción
FUSI- T/GATE OPEN 40A Módulo del portón trasero eléctrico
BLE
FUEL FILTER 30A Relé 10 (Relé del calefactor del filtro de combustible)
HEATER
ABS 2 2 40A Módulo de control ABS/ESC
COOLING FAN 2 2 40A Relé 9 (Relé del ventilador de refrigeración 2)
H/LP WASHER 20A Bloque de conexiones E/R (Relé 12 - Relé del lavafaros)
E-CVVT 1 1 20A [THETA-II 2,4L GDI] PCM
E-CVVT
E-CVVT 2 2 20A [THETA-II 2,4L GDI] PCM
E-CVVT
8 98
