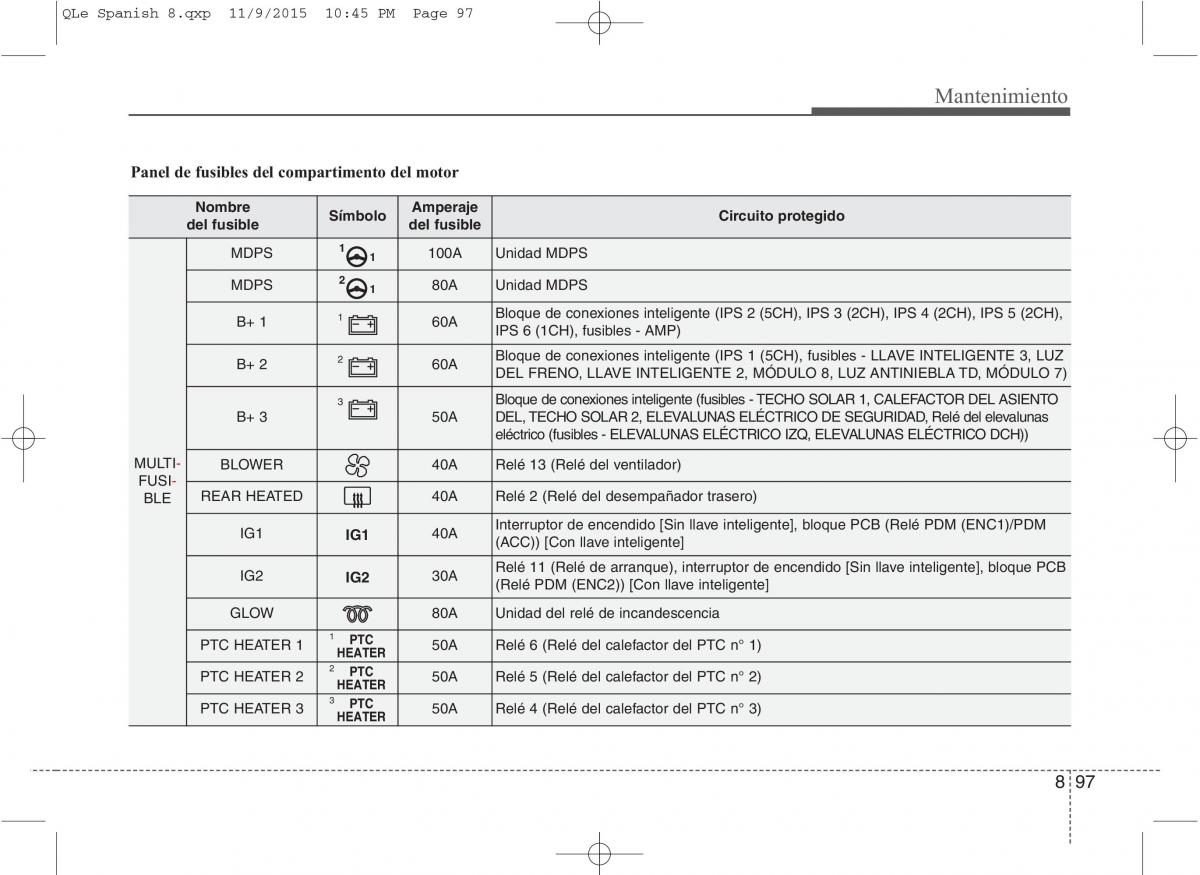

QLe Spanish 8.qxp 11/9/2015 10:45 PM Page 97
Mantenimiento
Panel de fusibles del compartimento del motor
Nombre Símbolo Amperaje Circuito protegido
del fusible del fusible
MDPS 1 1 100A Unidad MDPS
MDPS 2 1 80A Unidad MDPS
B+ 1 1 60A Bloque de conexiones inteligente (IPS 2 (5CH), IPS 3 (2CH), IPS 4 (2CH), IPS 5 (2CH),
IPS 6 (1CH), fusibles - AMP)
B+ 2 2 60A Bloque de conexiones inteligente (IPS 1 (5CH), fusibles - LLAVE INTELIGENTE 3, LUZ
DEL FRENO, LLAVE INTELIGENTE 2, MÓDULO 8, LUZ ANTINIEBLA TD, MÓDULO 7)
3 Bloque de coneles - TECHO SOLAR 1, CALEFxiones inteligente (fusibACTOR DEL ASIENTO
B+ 3 50A DEL, TECHO SOLAR 2, ELEVALUNAS ELÉCTRICO DE SEGURIDAD, Relé del elevalunas
eléctrico (fusibles - ELEVALUNAS ELÉCTRICO IZQ, ELEVALUNAS ELÉCTRICO DCH))
MULTI- BLOWER 40A Relé 13 (Relé del ventilador)
FUSI-
BLE REAR HEATED 40A Relé 2 (Relé del desempañador trasero)
IG1 IG1 40A Interruptor de encendido [Sin llave inteligente], bloque PCB (Relé PDM (ENC1)/PDM
(ACC)) [Con llave inteligente]
IG2 IG2 30A Relé 11 (Relé de arranque), interruptor de encendido [Sin llave inteligente], bloque PCB
(Relé PDM (ENC2)) [Con llave inteligente]
GLOW 80A Unidad del relé de incandescencia
PTC HEATER 1 1 PTC 50A Relé 6 (Relé del calefactor del PTC n° 1)
HEATER
PTC HEATER 2 2 PTC 50A Relé 5 (Relé del calefactor del PTC n° 2)
HEATER
PTC HEATER 3 3 PTC 50A Relé 4 (Relé del calefactor del PTC n° 3)
HEATER
897
