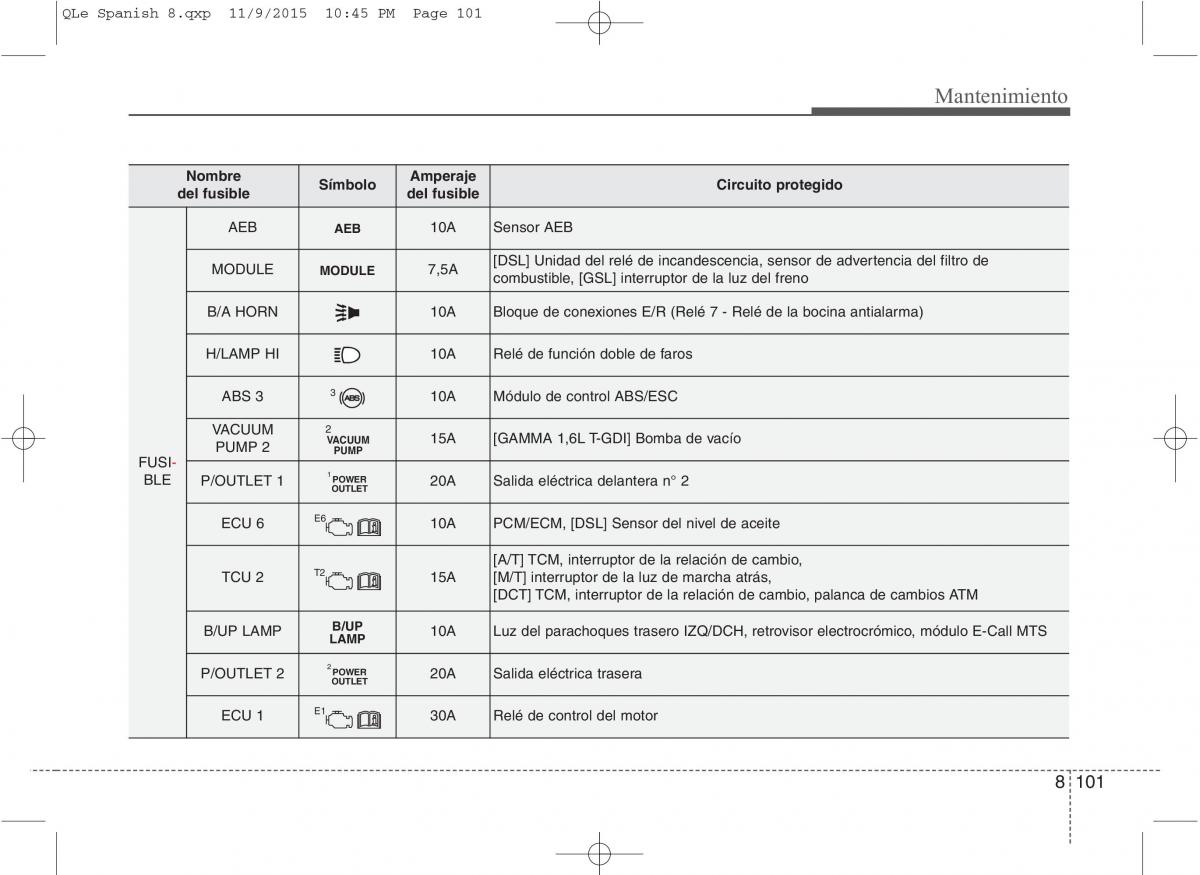

QLe Spanish 8.qxp 11/9/2015 10:45 PM Page 101
Mantenimiento
Nombre Símbolo Amperaje Circuito protegido
del fusible del fusible
AEB AEB 10A Sensor AEB
MODULE MODULE 7,5A [DSL] Unidad del relé de incandescencia, sensor de advertencia del filtro de
combustible, [GSL] interruptor de la luz del freno
B/A HORN 10A Bloque de conexiones E/R (Relé 7 - Relé de la bocina antialarma)
H/LAMP HI 10A Relé de función doble de faros
ABS 3 3 10A Módulo de control ABS/ESC
VACUUM 2 15A [GAMMA 1,6L T-GDI] Bomba de vacío
PUMP 2 VACUUM
PUMP
FUSI-
BLE P/OUTLET 1 1POWER 20A Salida eléctrica delantera n° 2
OUTLET
ECU 6 E6 10A PCM/ECM, [DSL] Sensor del nivel de aceite
[A/T] TCM, interruptor de la relación de cambio,
TCU 2 T2 15A [M/T] interruptor de la luz de marcha atrás,
[DCT] TCM, interruptor de la relación de cambio, palanca de cambios ATM
B/UP LAMP B/UP 10A Luz del parachoques trasero IZQ/DCH, retrovisor electrocrómico, módulo E-Call MTS
LAMP
P/OUTLET 2 2POWER 20A Salida eléctrica trasera
OUTLET
ECU 1 E1 30A Relé de control del motor
8101
