owners manual Toyota Corolla

owners manual Toyota Corolla - year of production: 2013 - Toyota Corolla XI 11 E160 owners manual EN

Document: pdf (18.25 MB) 632 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

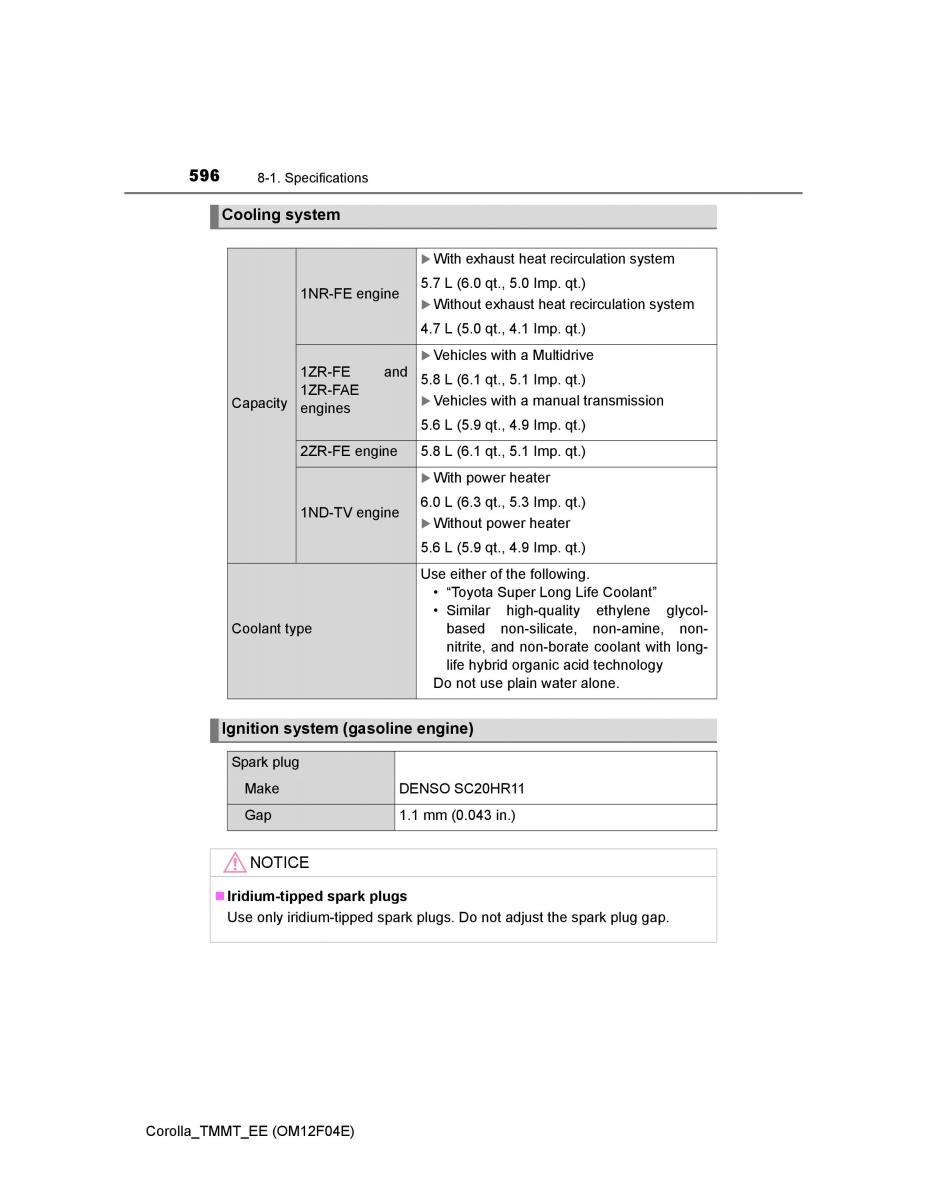

596 8-1. Specifications Cooling system With exhaust heat re circulation system 1NR-FE engine5.7 L (6.0 qt., 5.0 Imp. qt.) Without exhaust heat recirculation system 4.7 L (5.0 qt., 4.1 Imp. qt.) Vehicles with a Multidrive 1ZR-FE and 1ZR-FAE 5.8 L (6.1 qt., 5.1 Imp. qt.) Capacity engines Vehicles with a manual transmission 5.6 L (5.9 qt., 4.9 Imp. qt.) 2ZR-FE engine5.8 L (6.1 qt., 5.1 Imp. qt.) With power heater 1ND-TV engine6.0 L (6.3 qt., 5.3 Imp. qt.) Without power heater 5.6 L (5.9 qt., 4.9 Imp. qt.) Use either of the following. “Toyota Super Long Life Coolant” Similar high-quality ethylene glycol- Coolant type based non-silicate, non-amine, non- nitrite, and non-borate coolant with long- life hybrid organic acid technology Do not use plain water alone. Ignition system (gasoline engine) Spark plug Make DENSO SC20HR11 Gap 1.1 mm (0.043 in.) NOTICE Iridium-tipped spark plugs Use only iridium-tipped spark plugs. Do not adjust the spark plug gap. Corolla_TMMT_EE (OM12F04E)
