text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

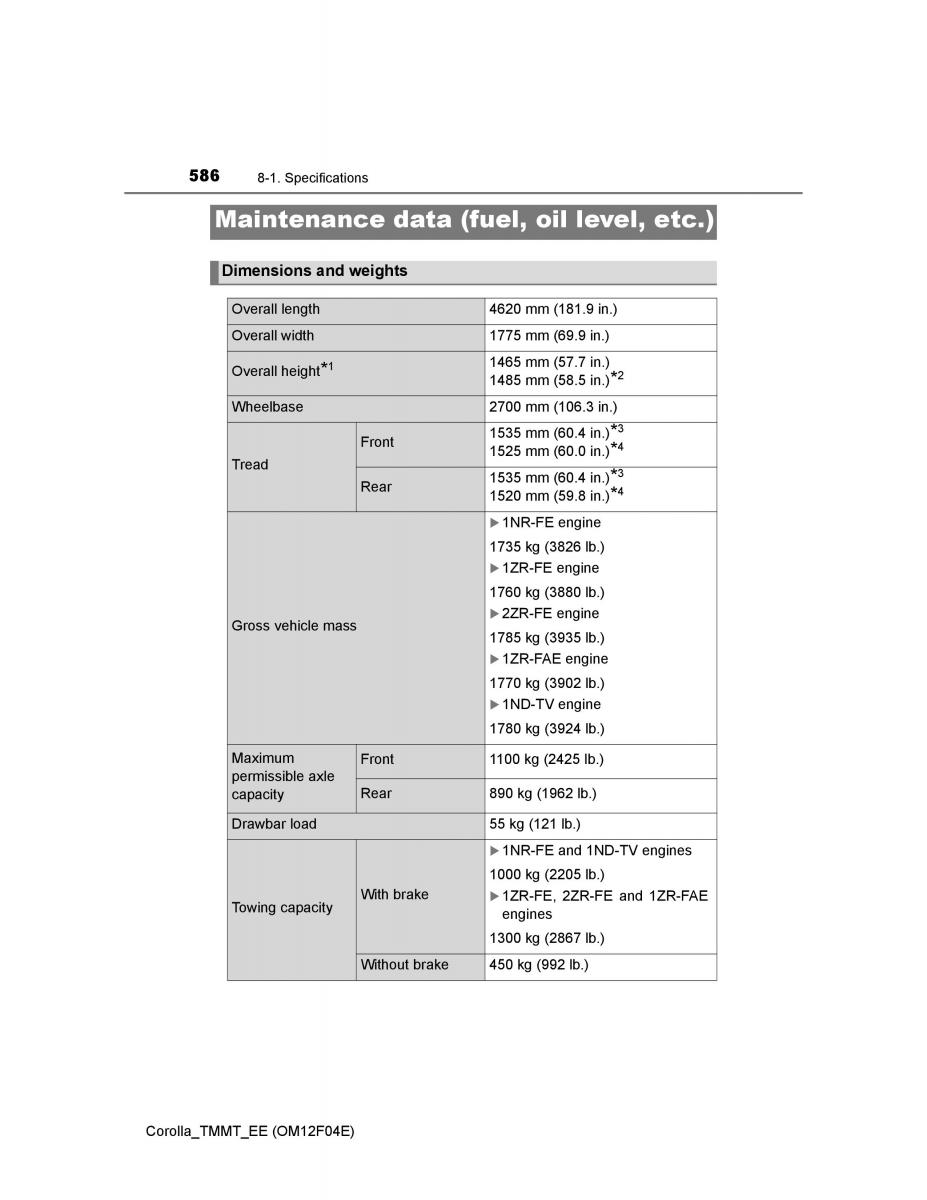

586 8-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weights Overall length 4620 mm (181.9 in.) Overall width 1775 mm (69.9 in.) 1 1465 mm (57.7 in.) Overall height* 2 1485 mm (58.5 in.)* Wheelbase 2700 mm (106.3 in.) 3 Front 1535 mm (60.4 in.)* 4 Tread 1525 mm (60.0 in.)* 3 Rear 1535 mm (60.4 in.)* 4 1520 mm (59.8 in.)* 1NR-FE engine 1735 kg (3826 lb.) 1ZR-FE engine 1760 kg (3880 lb.) Gross vehicle mass 2ZR-FE engine 1785 kg (3935 lb.) 1ZR-FAE engine 1770 kg (3902 lb.) 1ND-TV engine 1780 kg (3924 lb.) Maximum Front 1100 kg (2425 lb.) permissible axle capacity Rear 890 kg (1962 lb.) Drawbar load 55 kg (121 lb.) 1NR-FE and 1ND-TV engines 1000 kg (2205 lb.) Towing capacityWith brake1ZR-FE, 2ZR-FE and 1ZR-FAE engines 1300 kg (2867 lb.) Without brake450 kg (992 lb.) Corolla_TMMT_EE (OM12F04E)
