owners manual Toyota Corolla

owners manual Toyota Corolla - year of production: 2013 - Toyota Corolla XI 11 E160 owners manual EN

Document: pdf (18.25 MB) 632 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

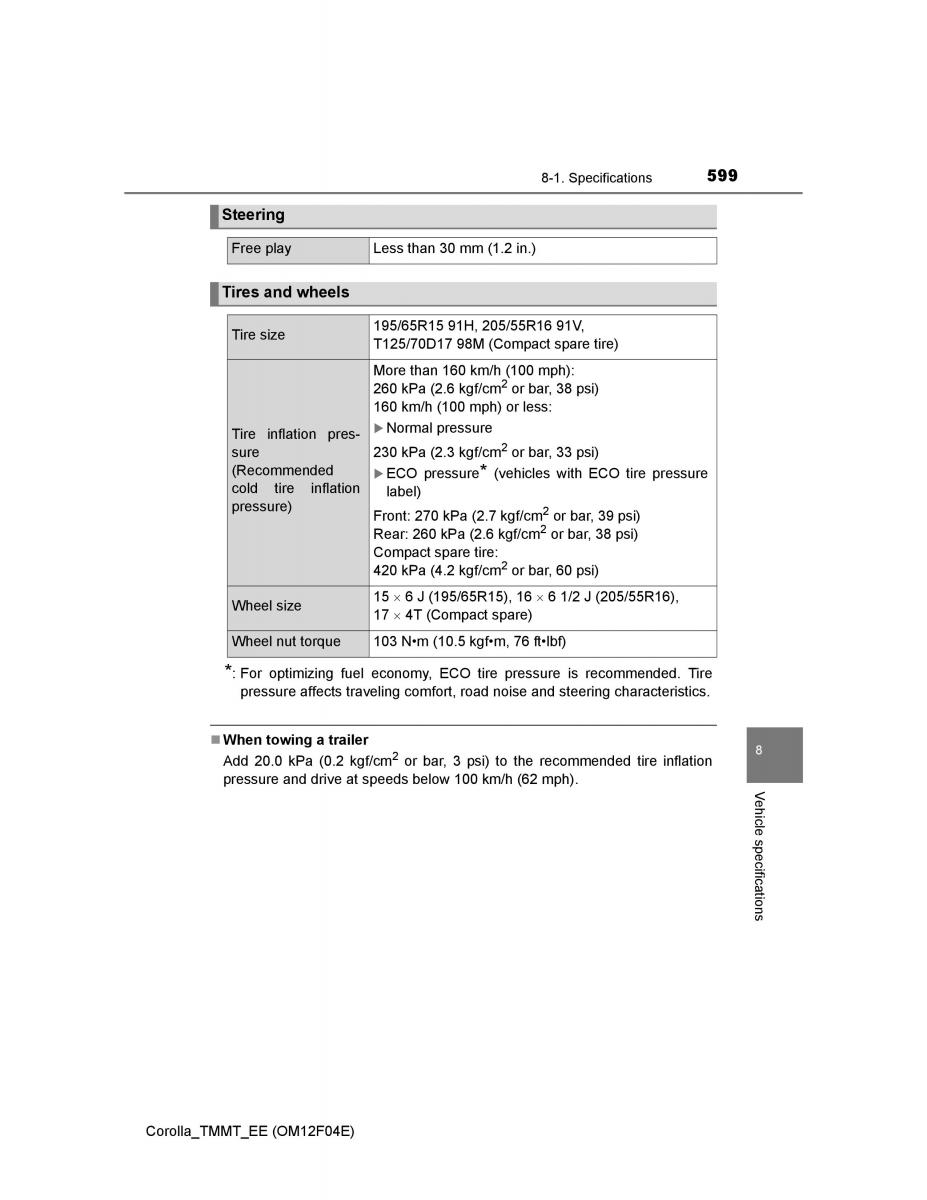

8-1. Specifications599 Steering Free play Less than 30 mm (1.2 in.) Tires and wheels Tire size 195/65R15 91H, 205/55R16 91V, T125/70D17 98M (Compact spare tire) More than 160 km/h (100 mph): 2 260 kPa (2.6 kgf/cm or bar, 38 psi) 160 km/h (100 mph) or less: Normal pressure Tire inflation pres- 2 sure 230 kPa (2.3 kgf/cm or bar, 33 psi) (Recommended ECO pressure* (vehicles with ECO tire pressure cold tire inflation label) pressure) 2 Front: 270 kPa (2.7 kgf/cm or bar, 39 psi) 2 Rear: 260 kPa (2.6 kgf/cm or bar, 38 psi) Compact spare tire: 2 420 kPa (4.2 kgf/cm or bar, 60 psi) Wheel size 15  6 J (195/65R15), 16  6 1/2 J (205/55R16), 17  4T (Compact spare) Wheel nut torque103 Nm (10.5 kgfm, 76 ftlbf) *: For optimizing fuel economy, ECO tire pressure is recommended. Tire pressure affects traveling comfort, road noise and steering characteristics. When towing a trailer 8 2 Add 20.0 kPa (0.2 kgf/cm or bar, 3 psi) to the recommended tire inflation pressure and drive at speeds below 100 km/h (62 mph). Ve hicle spe c ifications Corolla_TMMT_EE (OM12F04E)
