text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

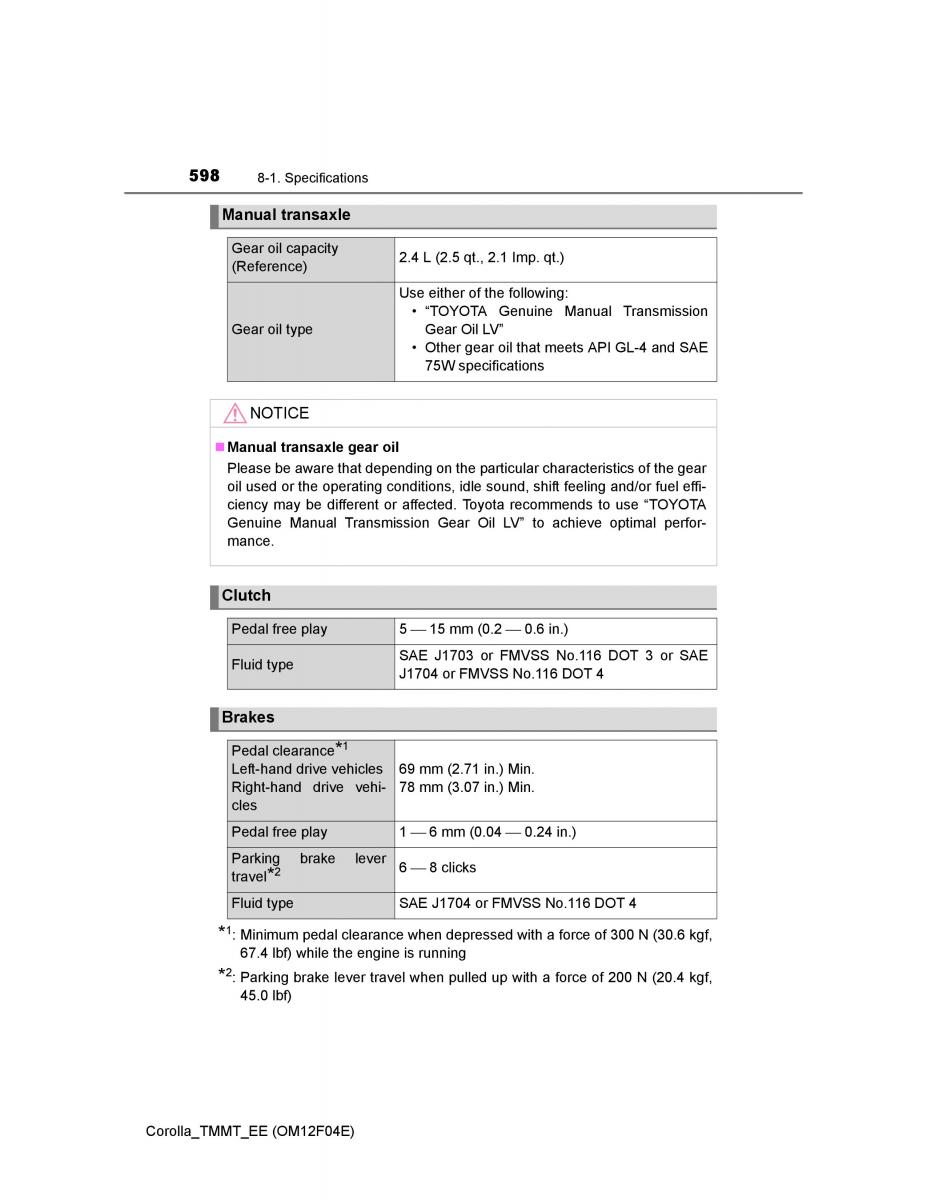

598 8-1. Specifications Manual transaxle Gear oil capacity 2.4 L (2.5 qt., 2.1 Imp. qt.) (Reference) Use either of the following: “TOYOTA Genuine Manual Transmission Gear oil type Gear Oil LV” Other gear oil that meets API GL-4 and SAE 75W specifications NOTICE Manual transaxle gear oil Please be aware that depending on the particular characteristics of the gear oil used or the operating conditions, idle sound, shift feeling and/or fuel effi- ciency may be different or affected. Toyota recommends to use “TOYOTA Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor- mance. Clutch Pedal free play 5  15 mm (0.2  0.6 in.) Fluid type SAE J1703 or FMVSS No.116 DOT 3 or SAE J1704 or FMVSS No.116 DOT 4 Brakes 1 Pedal clearance* Left-hand drive vehicles69 mm (2.71 in.) Min. Right-hand drive vehi-78 mm (3.07 in.) Min. cles Pedal free play 1  6 mm (0.04  0.24 in.) Parking brake lever travel*2 6  8 clicks Fluid type SAE J1704 or FMVSS No.116 DOT 4 1 * : Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf, 67.4 lbf) while the engine is running 2 * : Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0 lbf) Corolla_TMMT_EE (OM12F04E)
