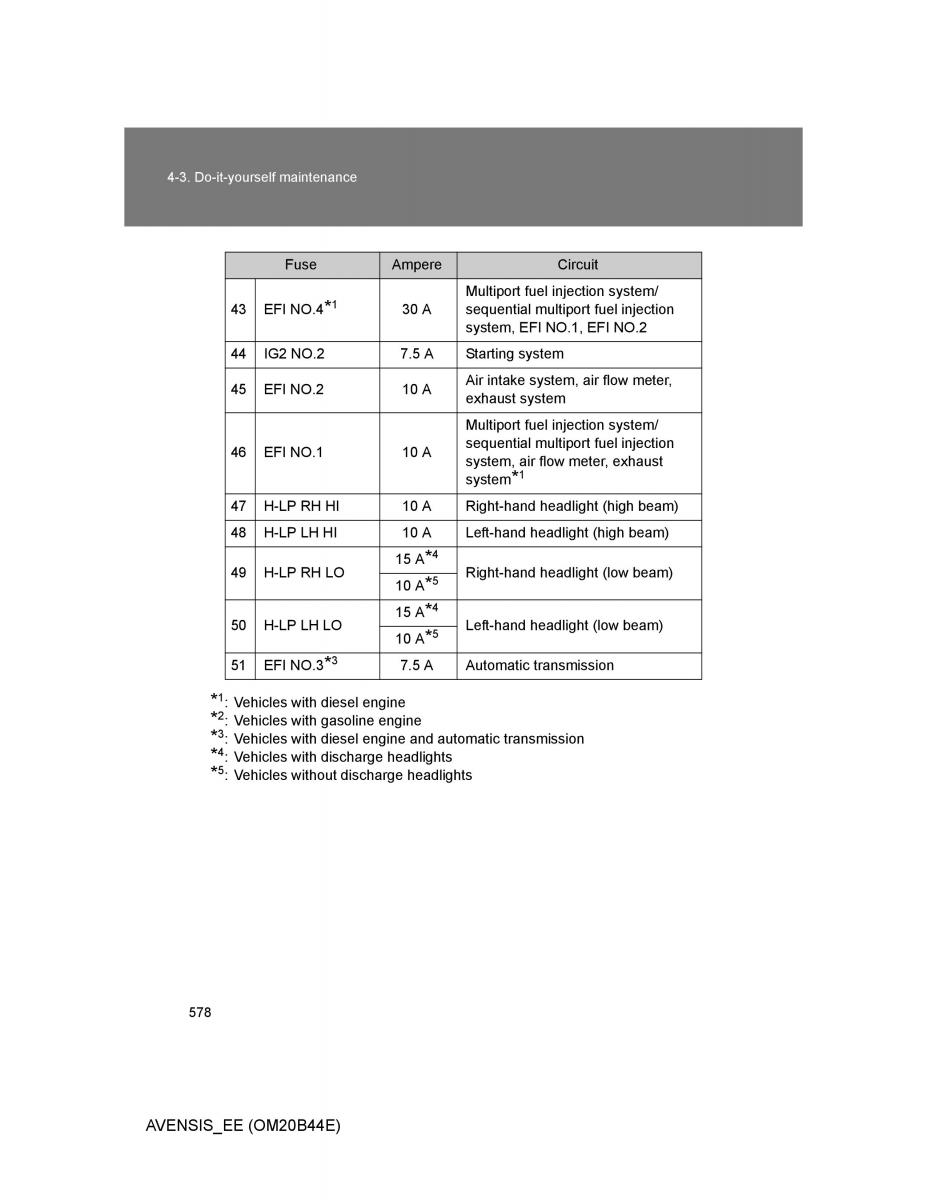

4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
Multiport fuel injection system/
43 EFI NO.4*1 30 A sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
44 IG2 NO.2 7.5 A Starting system
45 EFI NO.2 10 A Air intake system, air flow meter,
exhaust system
Multiport fuel injection system/
46 EFI NO.1 10 A sequential multiport fuel injection
system, air flow meter, exhaust
1
system*
47 H-LP RH HI 10 A Right-hand headlight (high beam)
48 H-LP LH HI 10 A Left-hand headlight (high beam)
15 A*4
49 H-LP RH LO 10 A*5 Right-hand headlight (low beam)
15 A*4
50 H-LP LH LO 10 A*5 Left-hand headlight (low beam)
51 EFI NO.3*3 7.5 A Automatic transmission
1
* : Vehicles with diesel engine
2
* : Vehicles with gasoline engine
3
* : Vehicles with diesel engine and automatic transmission
4
* : Vehicles with discharge headlights
5
* : Vehicles without discharge headlights
578
AVENSIS_EE (OM20B44E)
