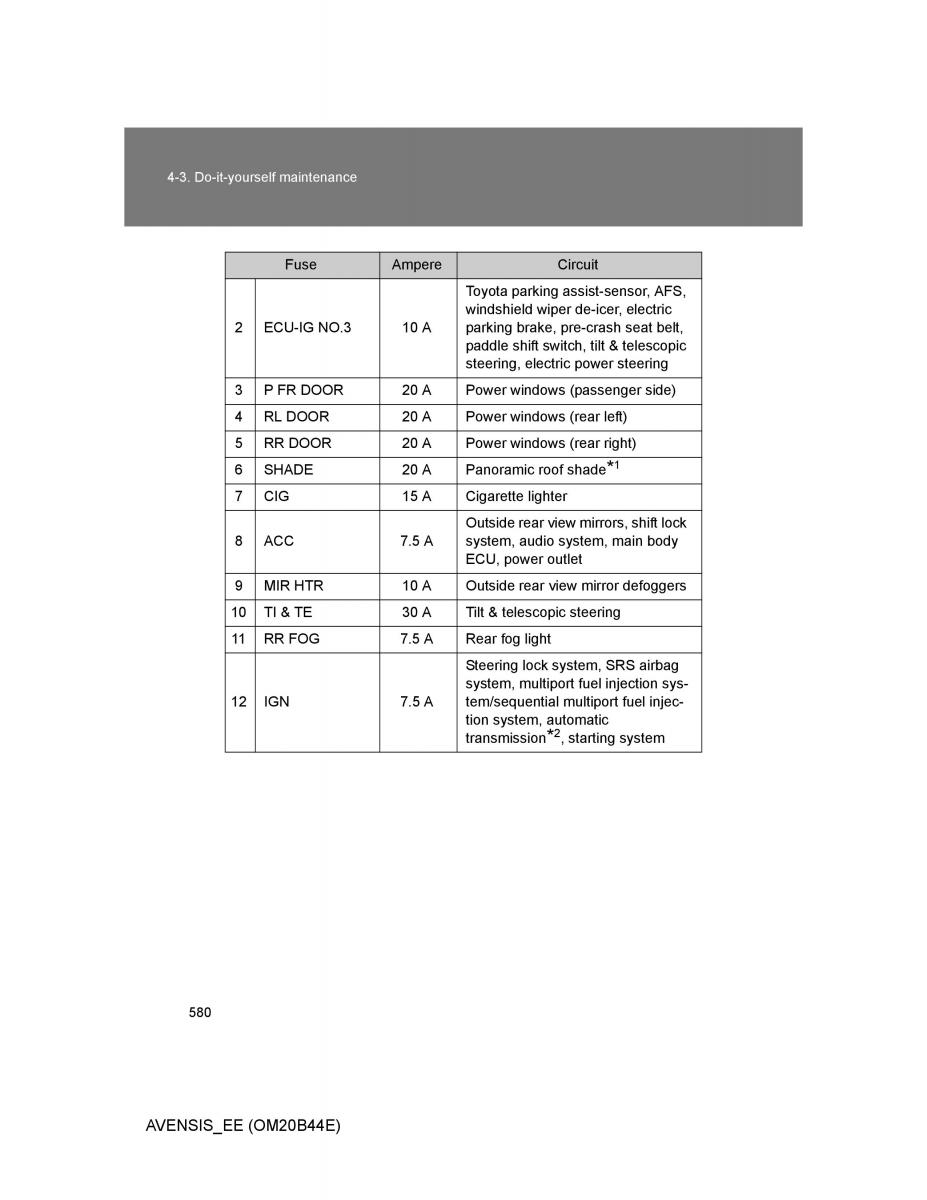

4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
Toyota parking assist-sensor, AFS,
windshield wiper de-icer, electric
2 ECU-IG NO.3 10 A parking brake, pre-crash seat belt,
paddle shift switch, tilt & telescopic
steering, electric power steering
3 P FR DOOR 20 A Power windows (passenger side)
4 RL DOOR 20 A Power windows (rear left)
5 RR DOOR 20 A Power windows (rear right)
1
6 SHADE 20 A Panoramic roof shade*
7 CIG 15 A Cigarette lighter
Outside rear view mirrors, shift lock
8ACC 7system, audio s.5 Aystem, main body
ECU, power outlet
9 MIR HTR 10 A Outside rear view mirror defoggers
10 TI & TE 30 A Tilt & telescopic steering
11 RR FOG 7.5 A Rear fog light
Steering lock system, SRS airbag
system, multiport fuel injection sys-
12 IGN 7.tem/sequential multiport fuel injec-5 A
tion system, automatic
transmission 2
* , starting system
580
AVENSIS_EE (OM20B44E)
