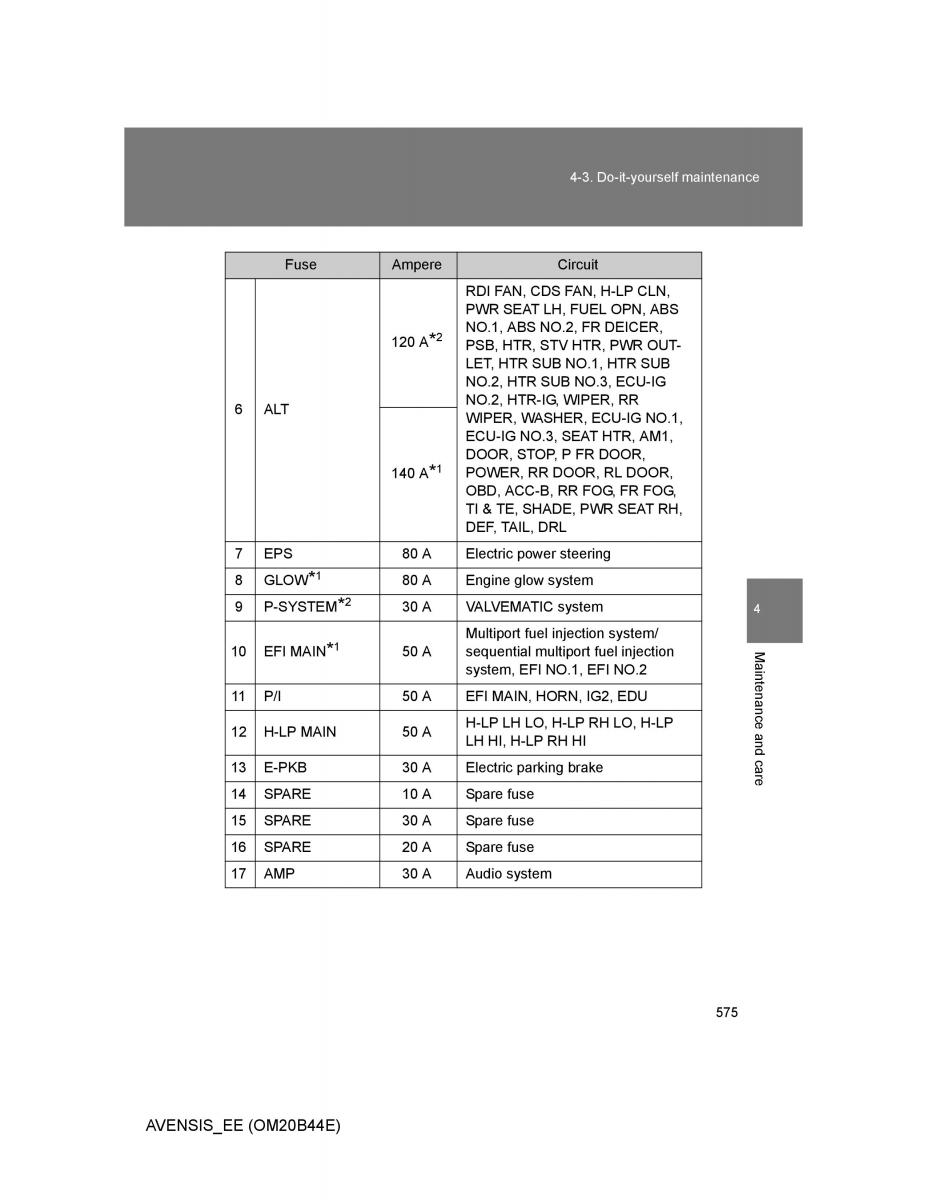

from owners manual to the vehicle Toyota Avensis, year of production 2008 - 2015:
4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
RDI FAN, CDS FAN, H-LP CLN,
PWR SEAT LH, FUEL OPN, ABS
2 NO.1, ABS NO.2, FR DEICER,
120 A* PSB, HTR, STV HTR, PWR OUT-
LET, HTR SUB NO.1, HTR SUB
NO.2, HTR SUB NO.3, ECU-IG
6ALT NO.2, HTR-IG, WIPER, RR
WIPER, WASHER, ECU-IG NO.1,
ECU-IG NO.3, SEAT HTR, AM1,
DOOR, STOP, P FR DOOR,
1 POWER, RR DOOR, RL DOOR,
140 A*
OBD, ACC-B, RR FOG, FR FOG,
TI & TE, SHADE, PWR SEAT RH,
DEF, TAIL, DRL
7 EPS 80 A Electric power steering
1
8GLO*W 80 A Engine glow system
2
9P-SYSTE*M 30 A VALVEMATIC system 4
Multiport fuel injection system/
1 Main
10 EFI MAIN* 50 A sequential multiport fuel injection
system, EFI NO.1, EFI NO.2 ten
11 P/I 50 A EFI MAIN, HORN, IG2, EDU ance
12 H-LP MAIN 50 A H-LP LH LO, H-LP RH LO, H-LP an
LH HI, H-LP RH HI d
13 E-PKB 30 A Electric parking brake care
14 SPARE 10 A Spare fuse
15 SPARE 30 A Spare fuse
16 SPARE 20 A Spare fuse
17 AMP 30 A Audio system
575
AVENSIS_EE (OM20B44E)
