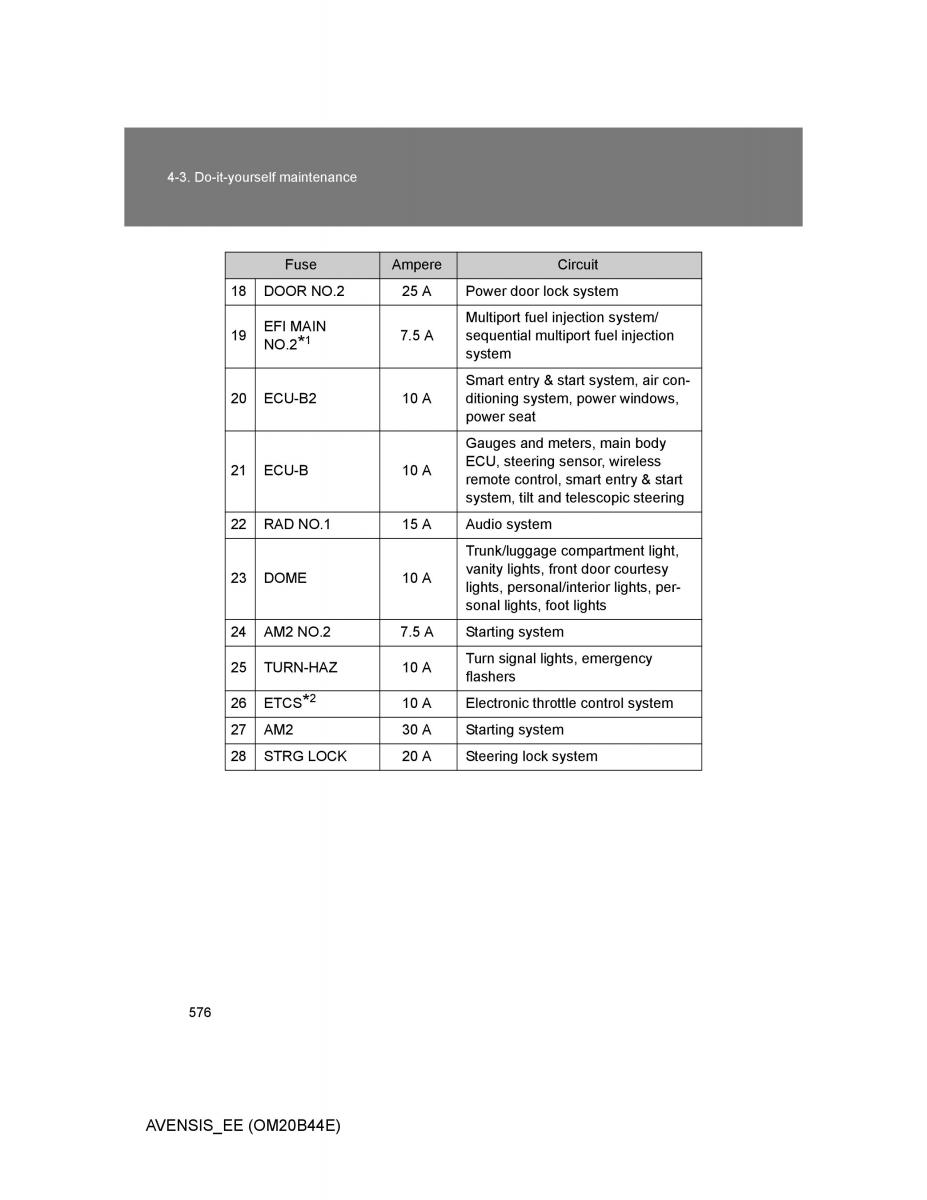

4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
18 DOOR NO.2 25 A Power door lock system
EFI MAIN Multiport fuel injection system/
19 1 7.5 A sequential multiport fuel injection
NO.2* system
Smart entry & start system, air con-
20 ECU-B2 10 A ditioning system, power windows,
power seat
Gauges and meters, main body
21 ECU-B 10 A ECU, steering sensor, wireless
remote control, smart entry & start
system, tilt and telescopic steering
22 RAD NO.1 15 A Audio system
Trunk/luggage compartment light,
23 DOME 10 A vanity lights, front door courtesy
lights, personal/interior lights, per-
sonal lights, foot lights
24 AM2 NO.2 7.5 A Starting system
25 TURN-HAZ 10 A Turn signal lights, emergency
flashers
2
26 ETCS* 10 A Electronic throttle control system
27 AM2 30 A Starting system
28 STRG LOCK 20 A Steering lock system
576
AVENSIS_EE (OM20B44E)
