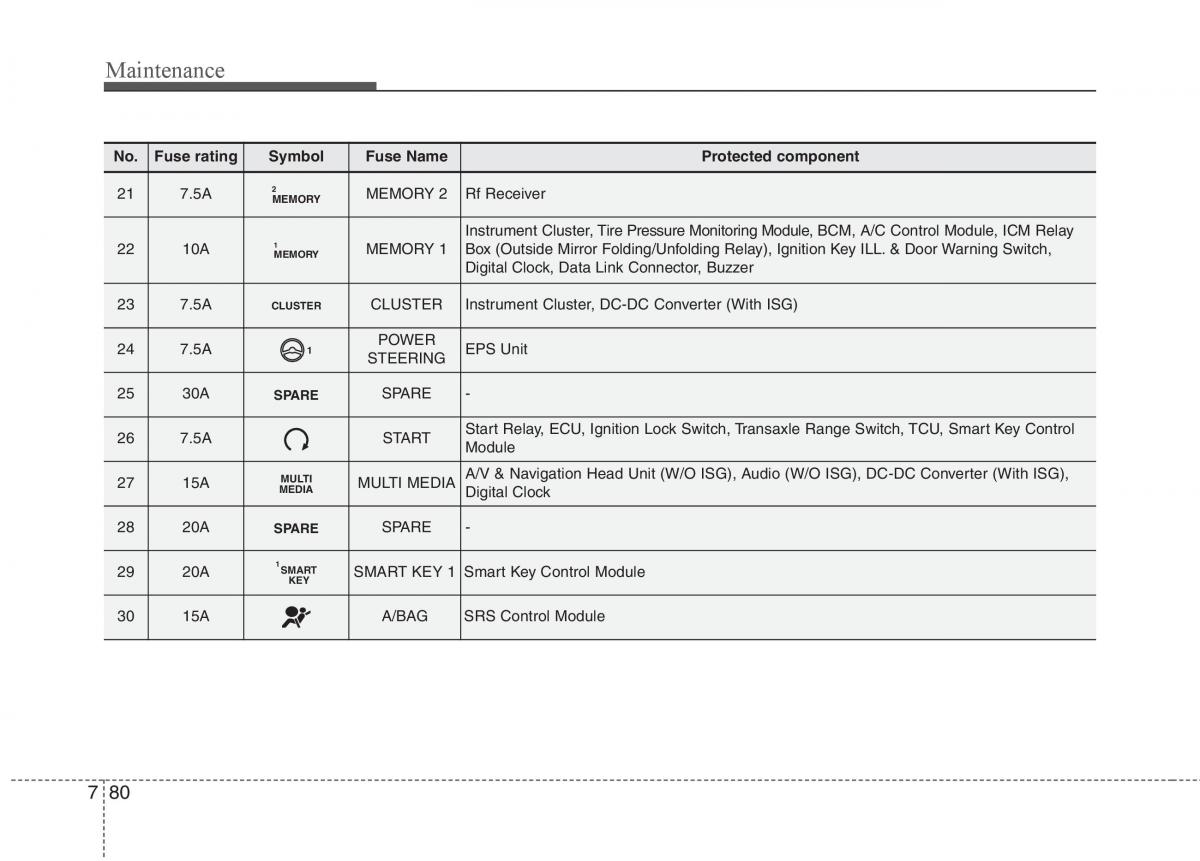

Maintenance
No. Fuse rating Symbol Fuse Name Protected component
21 7.5A 2 MEMORY 2 Rf Receiver
MEMORY
Instrument Cluster, Tire Pressure Monitoring Module, BCM, A/C Control Module, ICM Relay
22 10A 1 MEMORY 1 Box (Outside Mirror Folding/Unfolding Relay), Ignition Key ILL. & Door Warning Switch,
MEMORY
Digital Clock, Data Link Connector, Buzzer
23 7.5A CLUSTER CLUSTER Instrument Cluster, DC-DC Converter (With ISG)
POWER
24 7.5A 1 STEERING EPS Unit
25 30A SPARE SPARE -
26 7.5A START Start Relay, ECU, Ignition Lock Switch, Transaxle Range Switch, TCU, Smart Key Control
Module
27 15A MULTI MULTI MEDIA A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Converter (With ISG),
MEDIA Digital Clock
28 20A SPARE SPARE -
29 20A 1SMART SMART KEY 1 Smart Key Control Module
KEY
30 15A A/BAG SRS Control Module
7 80
