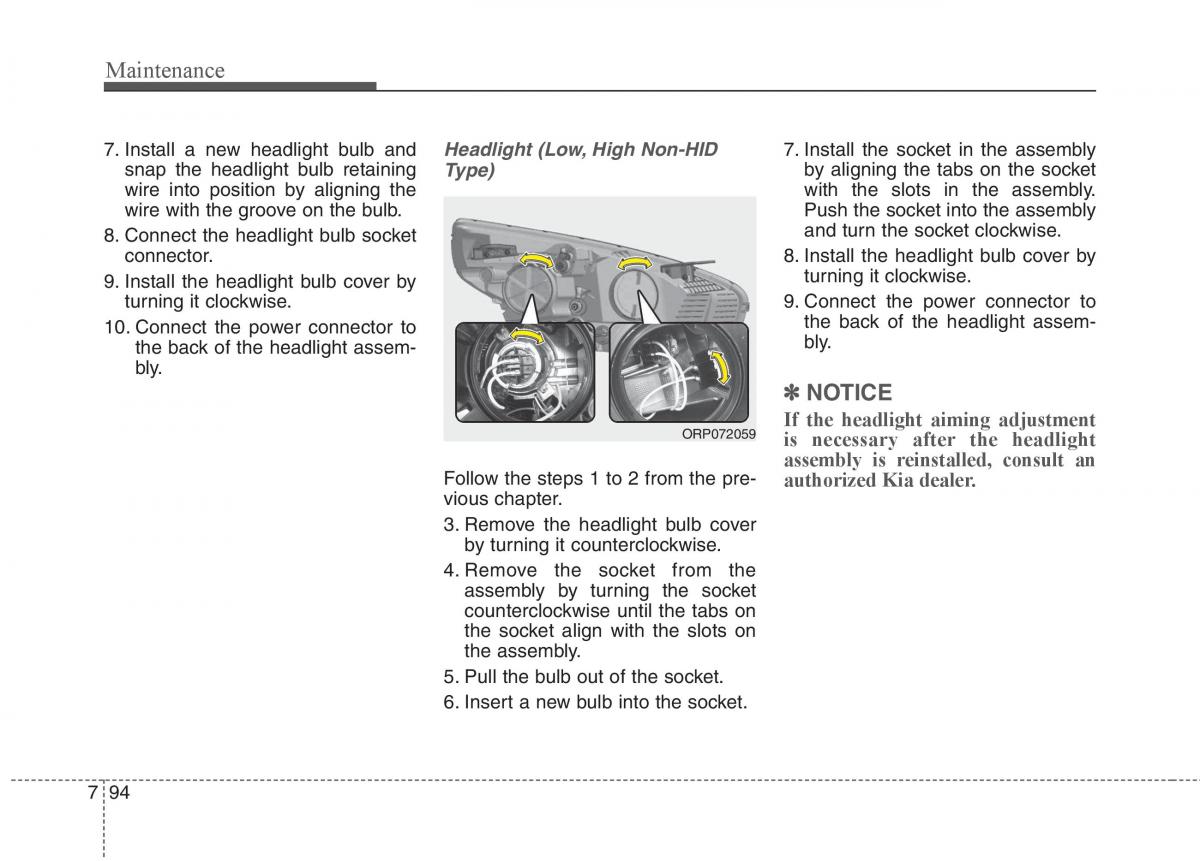

Maintenance
7. Install a new headlight bulb andHeadlight (Low, High Non-HID 7. Install the socket in the assembly
snap the headlight bulb retaining by aligning the tabs on the socket
Type)
wire into position by aligning the with the slots in the assembly.
wire with the groove on the bulb. Push the socket into the assembly
8. Connect the headlight bulb socket and turn the socket clockwise.
connector. 8. Install the headlight bulb cover by
9. Install the headlight bulb cover by turning it clockwise.
turning it clockwise. 9. Connect the power connector to
10. Connect the power connector to the back of the headlight assem-
the back of the headlight assem- bly.
bly.
✽✽ NOTICE
If the headlight aiming adjustment
ORP072059 is necessary after the headlight
assembly is reinstalled, consult an
Follow the steps 1 to 2 from the pre-
authorized Kia dealer.
vious chapter.
3. Remove the headlight bulb cover
by turning it counterclockwise.
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Pull the bulb out of the socket.
6. Insert a new bulb into the socket.
7 94
