text version of content this owner's manual page from owners manual to the vehicle KIA Sorento, year of production 2009:

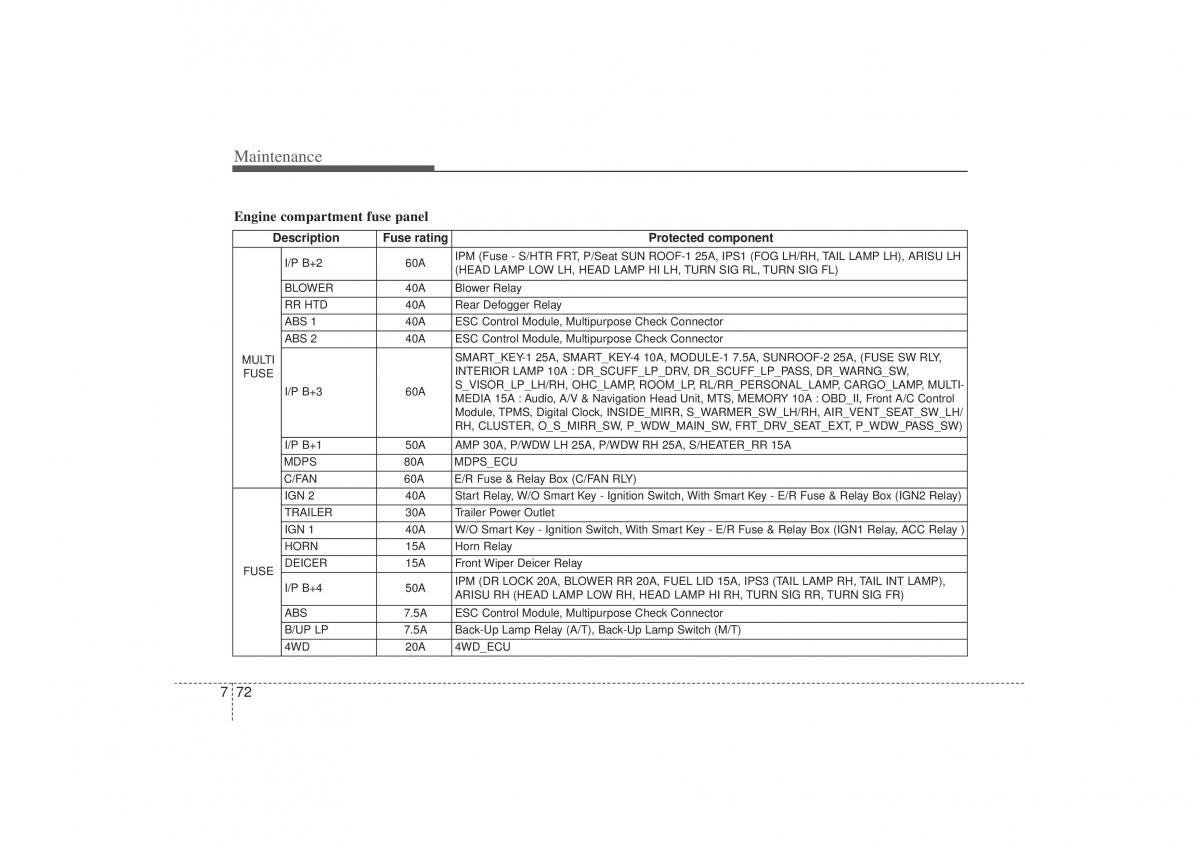

XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 72 Maintenance Engine compartment fuse panel DescriptionFuse rating Protected component I/P B+2 60A IPM (Fuse - S/HTR FRT, P/Seat SUN ROOF-1 25A, IPS1 (FOG LH/RH, TAIL LAMP LH), ARISU LH (HEAD LAMP LOW LH, HEAD LAMP HI LH, TURN SIG RL, TURN SIG FL) BLOWER 40A Blower Relay RR HTD 40A Rear Defogger Relay ABS 1 40A ESC Control Module, Multipurpose Check Connector ABS 2 40A ESC Control Module, Multipurpose Check Connector MULTI SMART_KEY-1 25A, SMART_KEY-4 10A, MODULE-1 7.5A, SUNROOF-2 25A, (FUSE SW RLY, FUSE INTERIOR LAMP 10A :DR_SCUFF_LP_DRV, DR_SCUFF_LP_PASS, DR_WARNG_SW, I/P B+3 60A S_VISOR_LP_LH/RH, OHC_LAMP, ROOM_LP, RL/RR_PERSONAL_LAMP, CARGO_LAMP, MULTI- MEDIA 15A :Audio, A/V & Navigation Head Unit, MTS, MEMORY 10A :OBD_II, Front A/C Control Module, TPMS, Digital Clock, INSIDE_MIRR, S_WARMER_SW_LH/RH, AIR_VENT_SEAT_SW_LH/ RH, CLUSTER, O_S_MIRR_SW, P_WDW_MAIN_SW, FRT_DRV_SEAT_EXT, P_WDW_PASS_SW) I/P B+1 50A AMP 30A, P/WDW LH 25A, P/WDW RH 25A, S/HEATER_RR 15A MDPS 80A MDPS_ECU C/FAN 60A E/R Fuse & Relay Box (C/FAN RLY) IGN 2 40A Start Relay, W/O Smart Key - Ignition Switch, With Smart Key - E/R Fuse & Relay Box (IGN2 Relay) TRAILER 30A Trailer Power Outlet IGN 1 40A W/O Smart Key - Ignition Switch, With Smart Key - E/R Fuse & Relay Box (IGN1 Relay, ACC Relay ) HORN 15A Horn Relay FUSE DEICER 15A Front Wiper Deicer Relay I/P B+4 50A IPM (DR LOCK 20A, BLOWER RR 20A, FUEL LID 15A, IPS3 (TAIL LAMP RH, TAIL INT LAMP), ARISU RH (HEAD LAMP LOW RH, HEAD LAMP HI RH, TURN SIG RR, TURN SIG FR) ABS 7.5A ESC Control Module, Multipurpose Check Connector B/UP LP 7.5A Back-Up Lamp Relay (A/T), Back-Up Lamp Switch (M/T) 4WD 20A4WD_ECU 7 72
