text version of content this owner's manual page from owners manual to the vehicle KIA Sorento, year of production 2009:

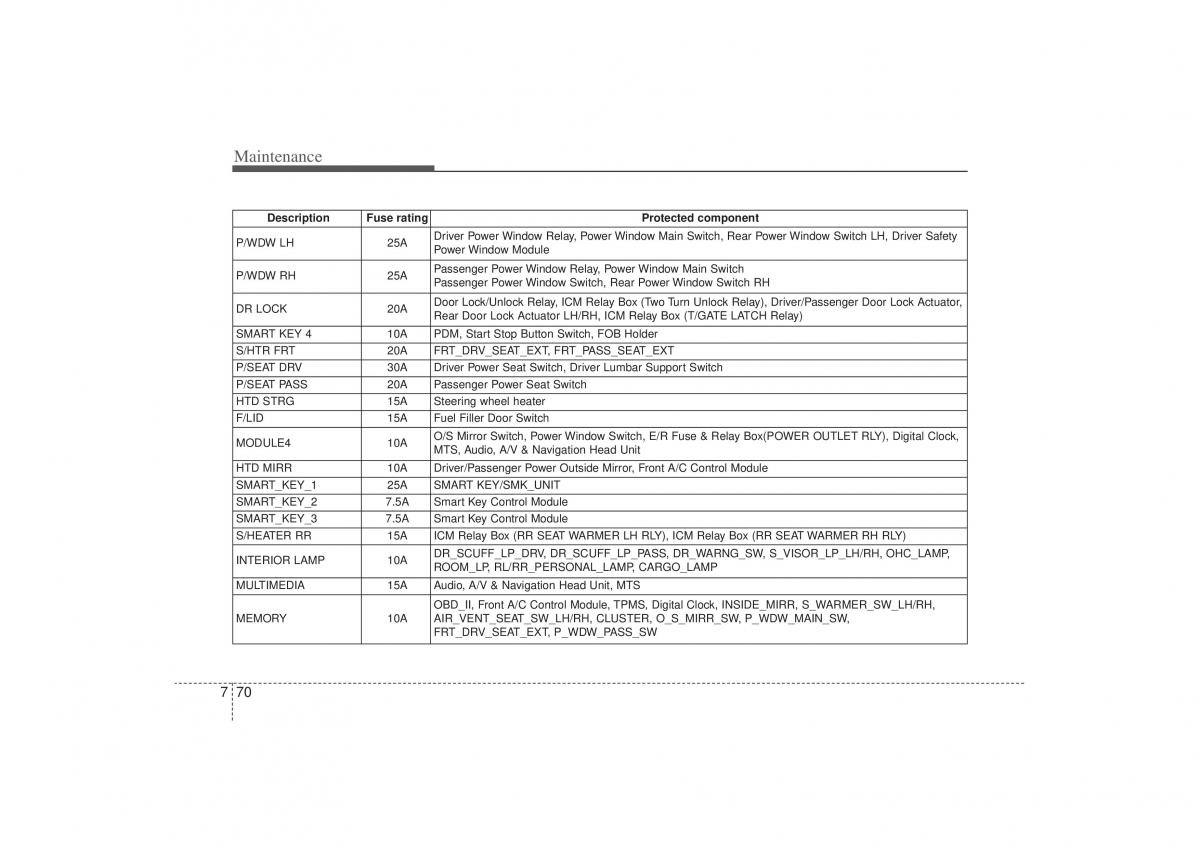

XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 70 Maintenance DescriptionFuse rating Protected component P/WDW LH 25A Driver Power Window Relay, Power Window Main Switch, Rear Power Window Switch LH, Driver Safety Power Window Module P/WDW RH 25A Passenger Power Window Relay, Power Window Main Switch Passenger Power Window Switch, Rear Power Window Switch RH DR LOCK 20A Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay), Driver/Passenger Door Lock Actuator, Rear Door Lock Actuator LH/RH, ICM Relay Box (T/GATE LATCH Relay) SMART KEY 4 10A PDM, Start Stop Button Switch, FOB Holder S/HTR FRT 20A FRT_DRV_SEAT_EXT, FRT_PASS_SEAT_EXT P/SEAT DRV 30A Driver Power Seat Switch, Driver Lumbar Support Switch P/SEAT PASS 20A Passenger Power Seat Switch HTD STRG 15A Steering wheel heater F/LID 15A Fuel Filler Door Switch MODULE4 10A O/S Mirror Switch, Power Window Switch, E/R Fuse & Relay Box(POWER OUTLET RLY), Digital Clock, MTS, Audio, A/V & Navigation Head Unit HTD MIRR 10A Driver/Passenger Power Outside Mirror, Front A/C Control Module SMART_KEY_1 25A SMART KEY/SMK_UNIT SMART_KEY_2 7.5ASmart Key Control Module SMART_KEY_3 7.5ASmart Key Control Module S/HEATER RR 15A ICM Relay Box (RR SEAT WARMER LH RLY), ICM Relay Box (RR SEAT WARMER RH RLY) INTERIOR LAMP 10A DR_SCUFF_LP_DRV, DR_SCUFF_LP_PASS, DR_WARNG_SW, S_VISOR_LP_LH/RH, OHC_LAMP, ROOM_LP, RL/RR_PERSONAL_LAMP, CARGO_LAMP MULTIMEDIA 15A Audio, A/V & Navigation Head Unit, MTS OBD_II, Front A/C Control Module, TPMS, Digital Clock, INSIDE_MIRR, S_WARMER_SW_LH/RH, MEMORY 10A AIR_VENT_SEAT_SW_LH/RH, CLUSTER, O_S_MIRR_SW, P_WDW_MAIN_SW, FRT_DRV_SEAT_EXT, P_WDW_PASS_SW 7 70
