text version of content this owner's manual page from owners manual to the vehicle KIA Sorento, year of production 2009:

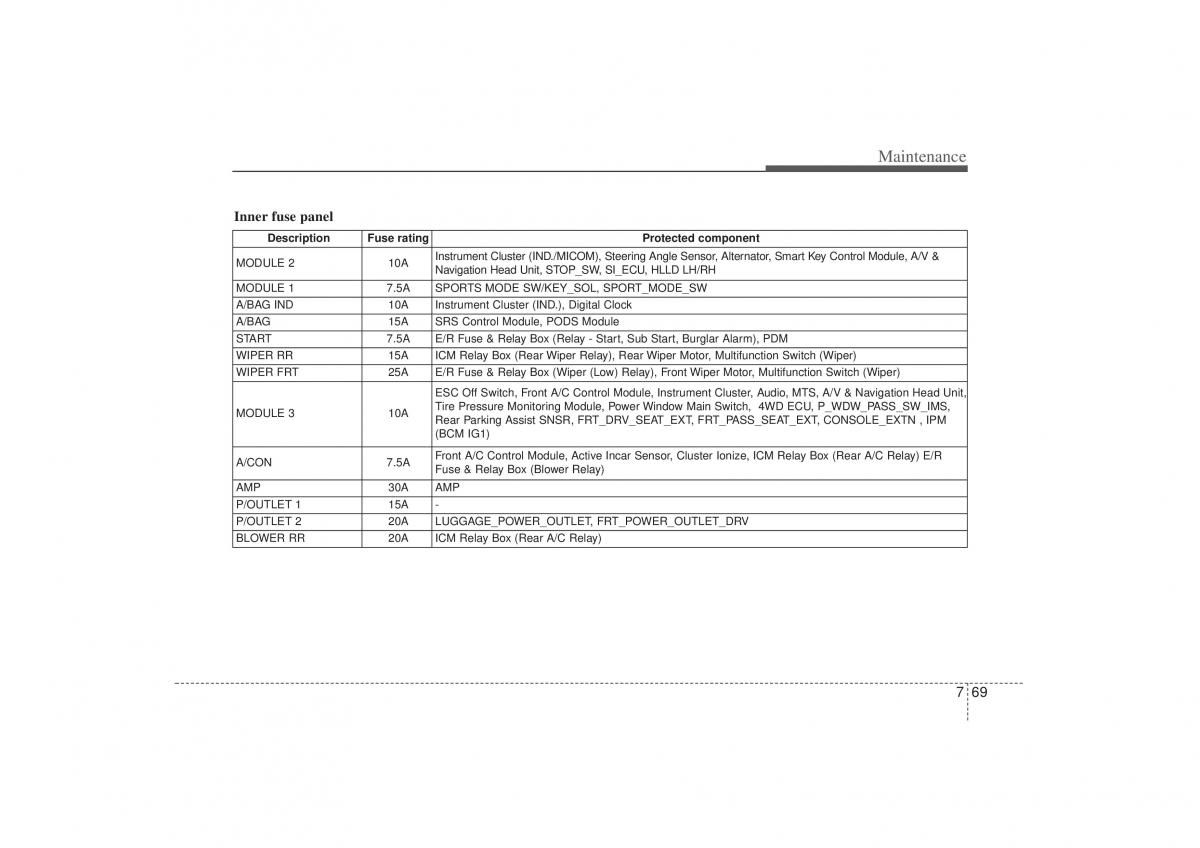

XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 69 Maintenance Inner fuse panel DescriptionFuse rating Protected component MODULE 2 10A Instrument Cluster (IND./MICOM), Steering Angle Sensor, Alternator, Smart Key Control Module, A/V & Navigation Head Unit, STOP_SW, SI_ECU, HLLD LH/RH MODULE 1 7.5ASPORTS MODE SW/KEY_SOL, SPORT_MODE_SW A/BAG IND 10A Instrument Cluster (IND.), Digital Clock A/BAG 15A SRS Control Module, PODS Module START 7.5AE/R Fuse & Relay Box (Relay - Start, Sub Start, Burglar Alarm), PDM WIPER RR 15A ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor, Multifunction Switch (Wiper) WIPER FRT 25A E/R Fuse & Relay Box (Wiper (Low) Relay), Front Wiper Motor, Multifunction Switch (Wiper) ESC Off Switch, Front A/C Control Module, Instrument Cluster, Audio, MTS, A/V & Navigation Head Unit, MODULE 3 10A Tire Pressure Monitoring Module, Power Window Main Switch, 4WD ECU, P_WDW_PASS_SW_IMS, Rear Parking Assist SNSR, FRT_DRV_SEAT_EXT, FRT_PASS_SEAT_EXT, CONSOLE_EXTN , IPM (BCM IG1) A/CON 7.5AFront A/C Control Module, Active Incar Sensor, Cluster Ionize, ICM Relay Box (Rear A/C Relay) E/R Fuse & Relay Box (Blower Relay) AMP 30A AMP P/OUTLET 1 15A - P/OUTLET 2 20A LUGGAGE_POWER_OUTLET, FRT_POWER_OUTLET_DRV BLOWER RR 20A ICM Relay Box (Rear A/C Relay) 769
