text version of content this owner's manual page from owners manual to the vehicle KIA Sorento, year of production 2009:

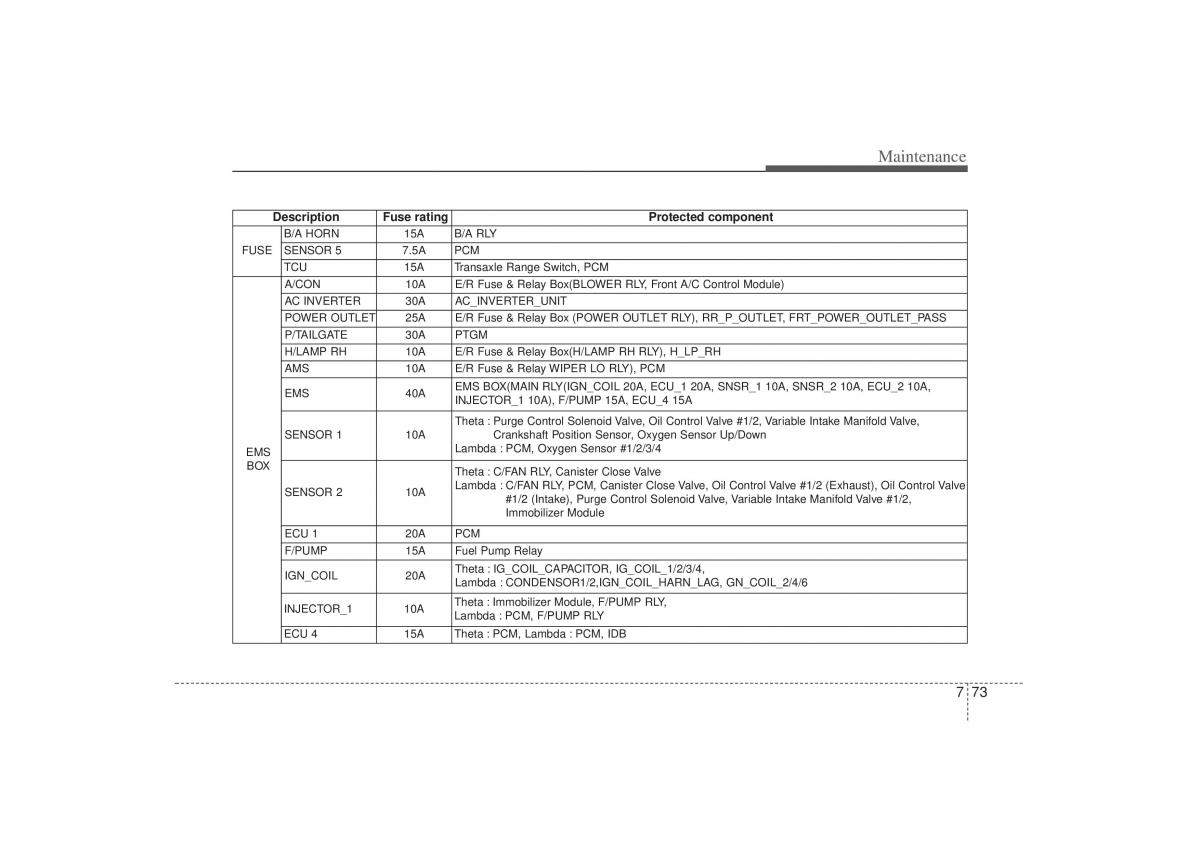

XM(FL) CAN(ENG) 7.QXP 1/23/2013 3:37 PM Page 73 Maintenance DescriptionFuse rating Protected component B/A HORN 15A B/A RLY FUSE SENSOR 5 7.5A PCM TCU 15A Transaxle Range Switch, PCM A/CON 10A E/R Fuse & Relay Box(BLOWER RLY, Front A/C Control Module) AC INVERTER 30AAC_INVERTER_UNIT POWER OUTLET 25A E/R Fuse & Relay Box (POWER OUTLET RLY), RR_P_OUTLET, FRT_POWER_OUTLET_PASS P/TAILGATE30A PTGM H/LAMP RH 10A E/R Fuse & Relay Box(H/LAMP RH RLY), H_LP_RH AMS 10A E/R Fuse & Relay WIPER LO RLY), PCM EMS 40A EMS BOX(MAIN RLY(IGN_COIL 20A, ECU_1 20A, SNSR_1 10A, SNSR_2 10A, ECU_2 10A, INJECTOR_1 10A), F/PUMP 15A, ECU_4 15A Theta : Purge Control Solenoid Valve, Oil Control Valve #1/2, Variable Intake Manifold Valve, SENSOR 1 10A Crankshaft Position Sensor, Oxygen Sensor Up/Down EMS Lambda :PCM, Oxygen Sensor #1/2/3/4 BOX Theta : C/FAN RLY, Canister Close Valve SENSOR 2 10A Lambda :C/FAN RLY, PCM, Canister Close Valve, Oil Control Valve #1/2 (Exhaust), Oil Control Valve #1/2 (Intake), Purge Control Solenoid Valve, Variable Intake Manifold Valve #1/2, Immobilizer Module ECU 1 20A PCM F/PUMP 15A Fuel Pump Relay IGN_COIL 20A Theta : IG_COIL_CAPACITOR, IG_COIL_1/2/3/4, Lambda :CONDENSOR1/2,IGN_COIL_HARN_LAG, GN_COIL_2/4/6 INJECTOR_110A Theta : Immobilizer Module, F/PUMP RLY, Lambda :PCM, F/PUMP RLY ECU 4 15A Theta : PCM, Lambda : PCM, IDB 773
