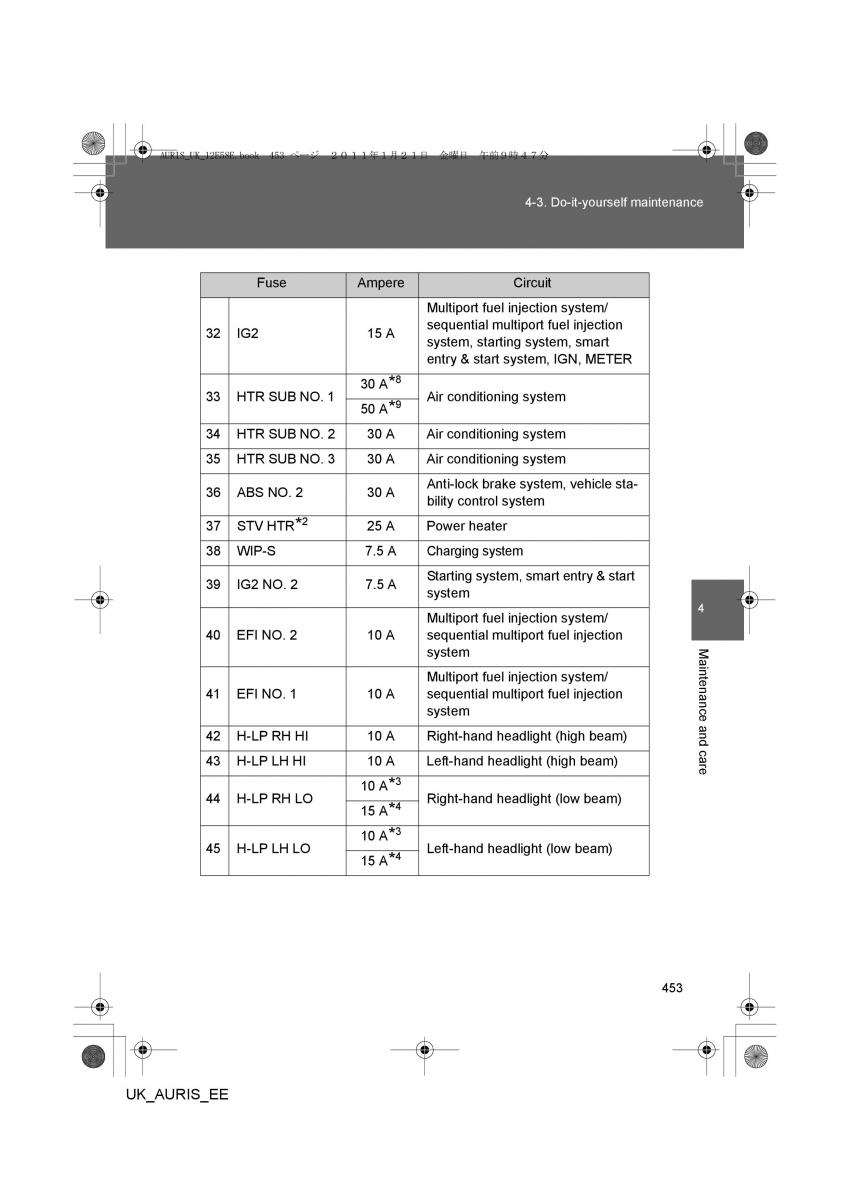

AURIS_UK_12E58E.book 453 ページ 㧞㧜㧝㧝年㧝月㧞㧝日 金曜日 午前９時４７分
4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
Multiport fuel injection system/
32 IG2 15 A sequential multiport fuel injection
system, starting system, smart
entry & start system, IGN, METER
30 A*8
33 HTR SUB NO. 1 50 A*9 Air conditioning system
34 HTR SUB NO. 2 30 A Air conditioning system
35 HTR SUB NO. 3 30 A Air conditioning system
36 ABS NO. 2 30 A Anti-lock brake system, vehicle sta-
bility control system
2
37 STV HTR* 25 A Power heater
38 WIP-S 7.5 A Charging system
39 IG2 NO. 2 7.5 A Starting system, smart entry & start
system
Multiport fuel injection system/ 4
40 EFI NO. 2 10 A sequential multiport fuel injection
system M
a
in
Multiport fuel injection system/ ten
41 EFI NO. 1 10 A sequential multiport fuel injection anc
system e a
42 H-LP RH HI 10 A Right-hand headlight (high beam) nd
ca
43 H-LP LH HI 10 A3 Left-hand headlight (high beam) re
44 H-LP RH LO 10 A* Right-hand headlight (low beam)
15 A*4
10 A*3
45 H-LP LH LO 15 A*4 Left-hand headlight (low beam)
453
UK_AURIS_EE
