AURIS_UK_12E58E.book 455 ページ 㧞㧜㧝㧝年㧝月㧞㧝日 金曜日 午前９時４７分
4-3. Do-it-yourself maintenance

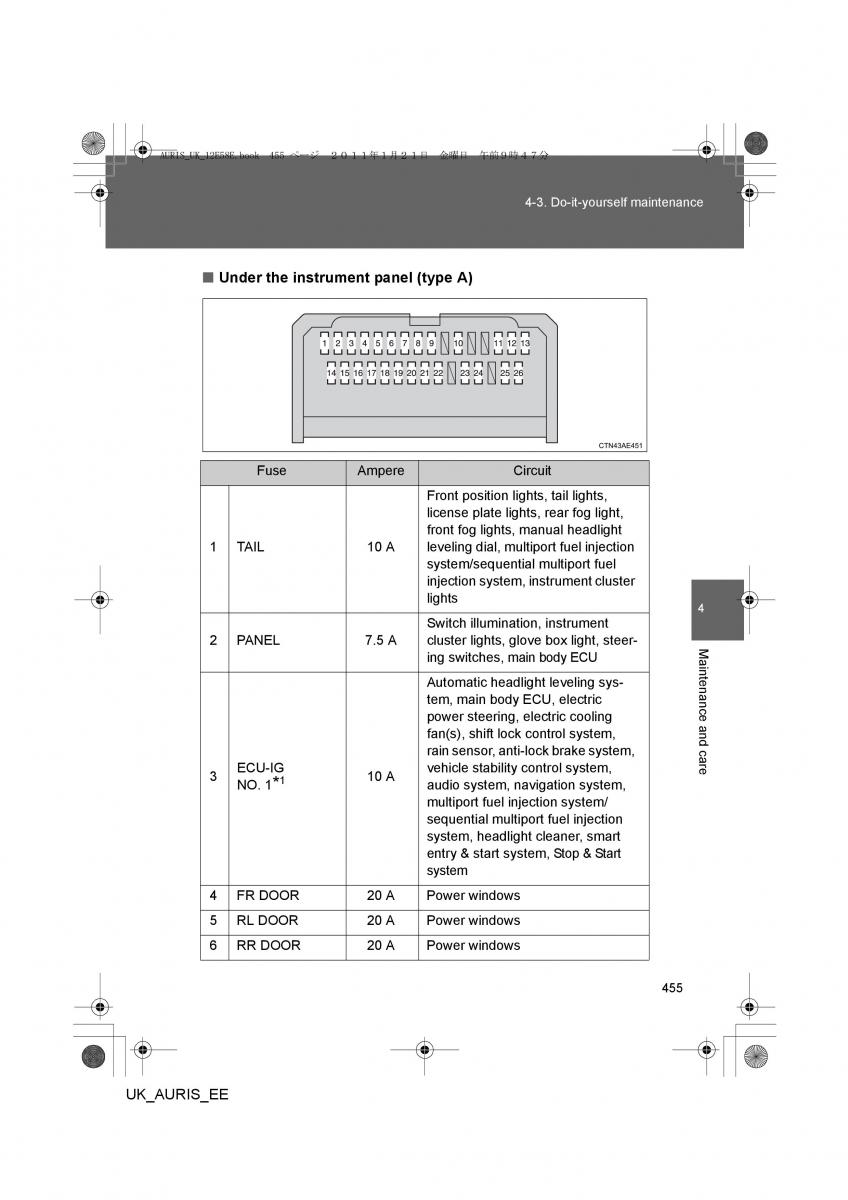

■Under the instrument panel (type A)
Fuse Ampere Circuit
Front position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
1 TAIL 10 A leveling dial, multiport fuel injection
system/sequential multiport fuel
injection system, instrument cluster
lights 4
Switch illumination, instrument
2 PANEL 7.5 A cluster lights, glove box light, steer-M
ing switches, main body ECU a
in
Automatic headlight leveling sys- ten
tem, main body ECU, electric anc
power steering, electric cooling e a
fan(s), shift lock control system, nd
rain sensor, anti-lock brake system, ca
3 ECU-IG 10 A vehicle stability control system, re
1
NO. 1* audio system, navigation system,
multiport fuel injection system/
sequential multiport fuel injection
system, headlight cleaner, smart
entry & start system, Stop & Start
system
4 FR DOOR 20 A Power windows
5 RL DOOR 20 A Power windows
6 RR DOOR 20 A Power windows
455
UK_AURIS_EE
