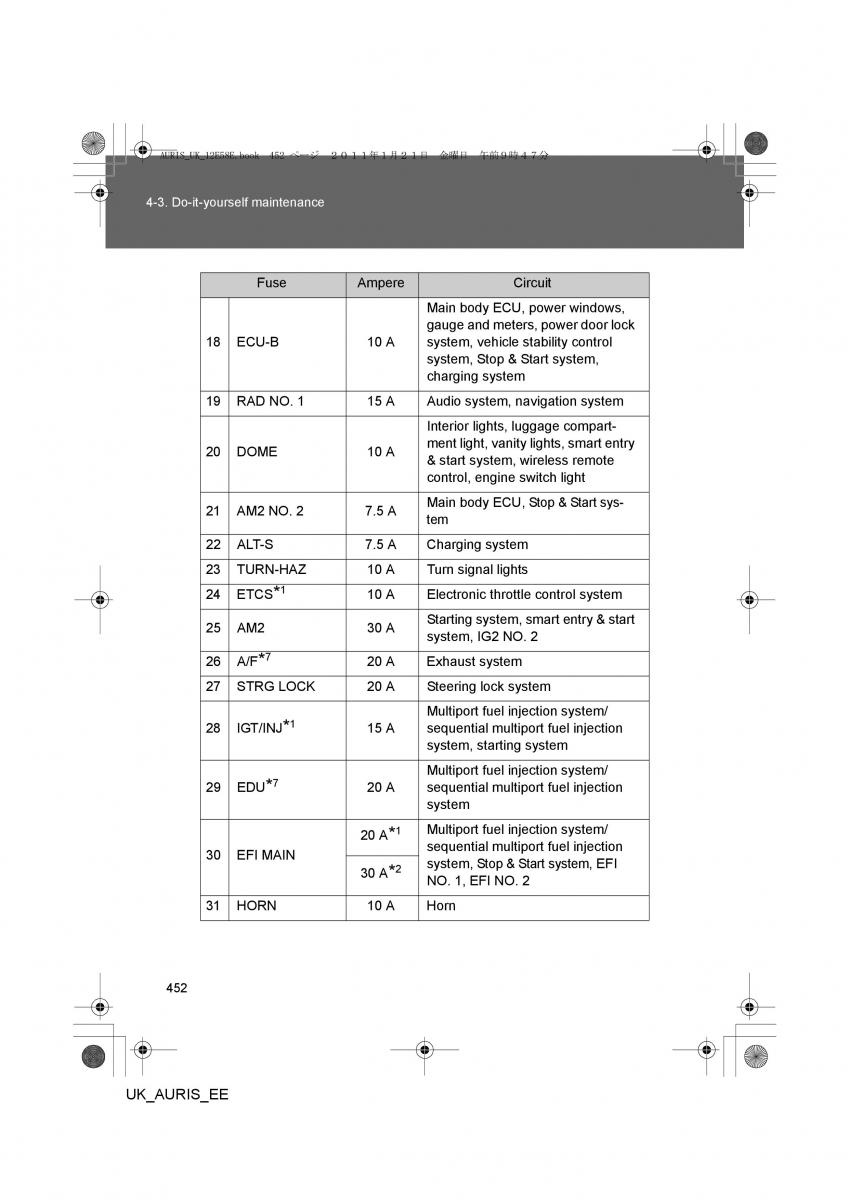

AURIS_UK_12E58E.book 452 ページ 㧞㧜㧝㧝年㧝月㧞㧝日 金曜日 午前９時４７分
4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
Main body ECU, power windows,
gauge and meters, power door lock
18 ECU-B 10 A system, vehicle stability control
system, Stop & Start system,
charging system
19 RAD NO. 1 15 A Audio system, navigation system
Interior lights, luggage compart-
20 DOME 10 A ment light, vanity lights, smart entry
& start system, wireless remote
control, engine switch light
21 AM2 NO. 2 7.5 A Main body ECU, Stop & Start sys-
tem
22 ALT-S 7.5 A Charging system
23 TURN-HAZ 10 A Turn signal lights
1
24 ETCS* 10 A Electronic throttle control system
25 AM2 30 A Starting system, smart entry & start
system, IG2 NO. 2
7
26 A/F* 20 A Exhaust system
27 STRG LOCK 20 A Steering lock system
Multiport fuel injection system/
28 IGT/INJ*1 15 A sequential multiport fuel injection
system, starting system
Multiport fuel injection system/
29 EDU*7 20 A sequential multiport fuel injection
system
20 A*1 Multiport fuel injection system/
30 EFI MAIN sequential multiport fuel injection
30 A*2 system, Stop & Start system, EFI
NO. 1, EFI NO. 2
31 HORN 10 A Horn
452
UK_AURIS_EE
