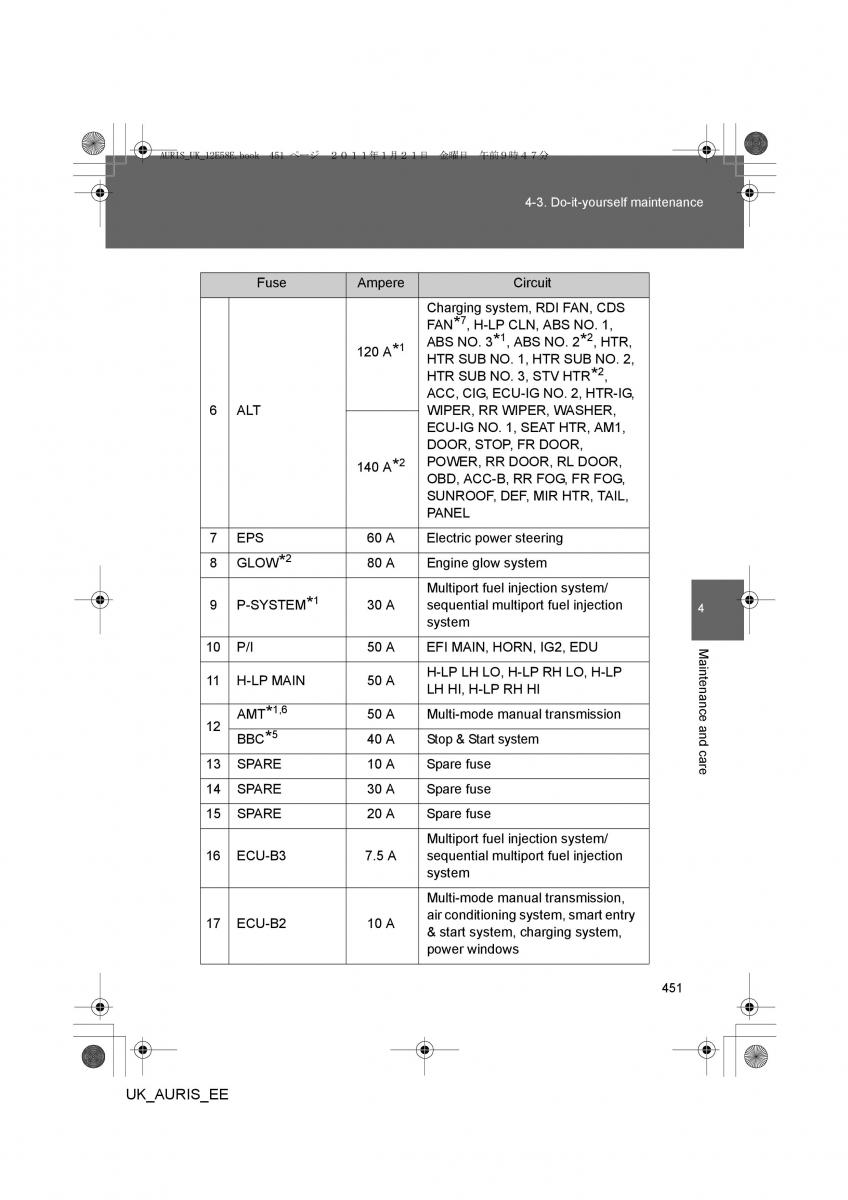

AURIS_UK_12E58E.book 451 ページ 㧞㧜㧝㧝年㧝月㧞㧝日 金曜日 午前９時４７分
4-3. Do-it-yourself maintenance
Fuse Ampere Circuit
Charging system, RDI FAN, CDS
7
FAN* , H-LP CLN, ABS NO. 1,
1 2
1 ABS NO. 3* , ABS NO. 2* , HTR,
120 A* HTR SUB NO. 1, HTR SUB NO. 2,
2
HTR SUB NO. 3, STV HTR* ,
ACC, CIG, ECU-IG NO. 2, HTR-IG,
6ALT WIPER, RR WIPER, WASHER,
ECU-IG NO. 1, SEAT HTR, AM1,
DOOR, STOP, FR DOOR,
140 A 2 POWER, RR DOOR, RL DOOR,
* OBD, ACC-B, RR FOG, FR FOG,
SUNROOF, DEF, MIR HTR, TAIL,
PANEL
7 EPS 60 A Electric power steering
2
8GLO*W 80 A Engine glow system
Multiport fuel injection system/
1
9 P-SYSTEM* 30 A sequential multiport fuel injection 4
system
10 P/I 50 A EFI MAIN, HORN, IG2, EDU M
a
in
11 H-LP MAIN 50 A H-LP LH LO, H-LP RH LO, H-LP ten
LH HI, H-LP RH HI anc
AMT*1,6 50 A Multi-mode manual transmission e a
12 5 nd
BBC* 40 A Stop & Start system ca
13 SPARE 10 A Spare fuse re
14 SPARE 30 A Spare fuse
15 SPARE 20 A Spare fuse
Multiport fuel injection system/
16 ECU-B3 7.5 A sequential multiport fuel injection
system
Multi-mode manual transmission,
17 ECU-B2 10 A air conditioning system, smart entry
& start system, charging system,
power windows
451
UK_AURIS_EE
