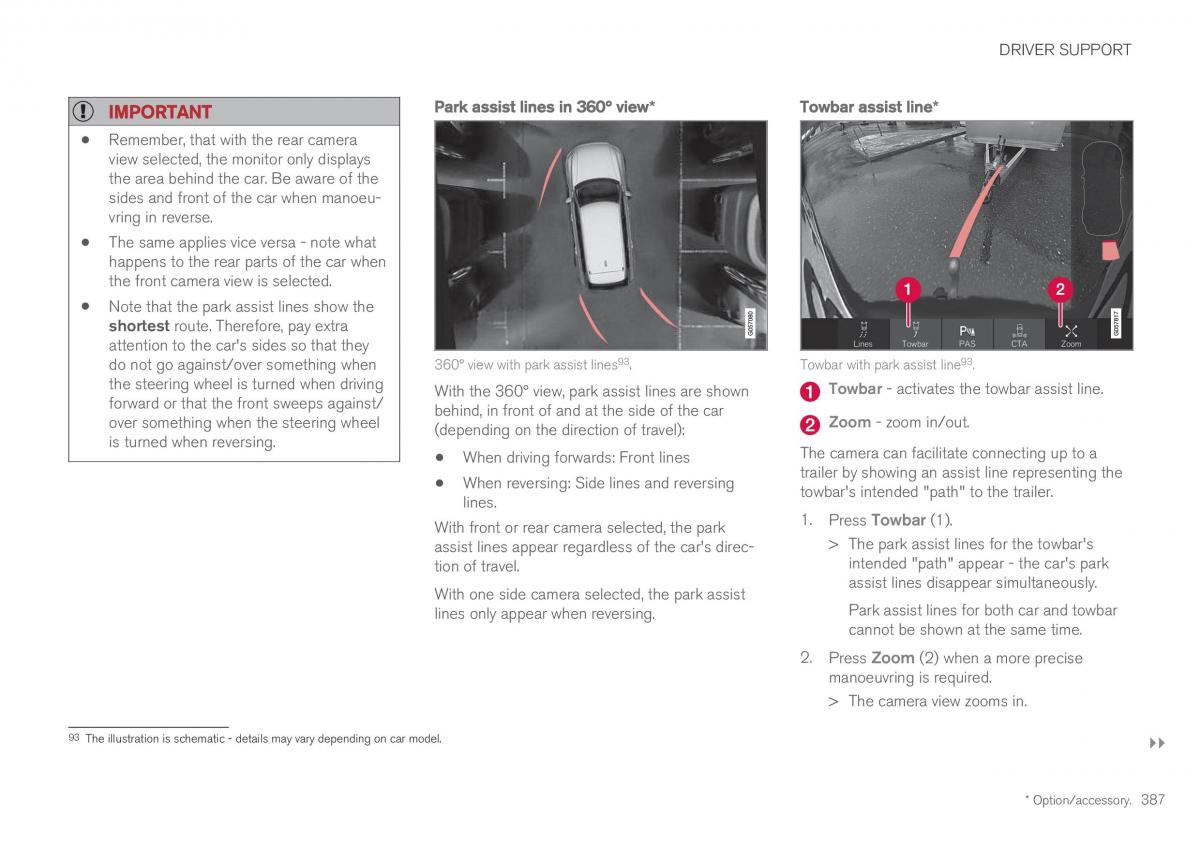

DRIVER SUPPORT
IMPORTANT Park assist lines in 360° view* Towbar assist line*
Remember, that with the rear camera
•
view selected, the monitor only displays
the area behind the car. Be aware of the
sides and front of the car when manoeu-
vring in reverse.
The same applies vice versa - note what
•
happens to the rear parts of the car when
the front camera view is selected.
Note that the park assist lines show the
•
shortest route. Therefore, pay extra
attention to the cars sides so that they
93 93
do not go against/over something when 360° view with park assist lines. Towbar with park assist line.
the steering wheel is turned when driving With the 360° view, park assist lines are shown Towbar - activates the towbar assist line.
forward or that the front sweeps against/ behind, in front of and at the side of the car
over something when the steering wheel (depending on the direction of travel): Zoom - zoom in/out.
is turned when reversing. The camera can facilitate connecting up to a
When driving forwards: Front lines
• trailer by showing an assist line representing the
When reversing: Side lines and reversing
• towbars intended "path" to the trailer.
lines.
With front or rear camera selected, the park 1. Press Towbar (1).
assist lines appear regardless of the cars direc- > The park assist lines for the towbars
tion of travel. intended "path" appear - the cars park
With one side camera selected, the park assist assist lines disappear simultaneously.
lines only appear when reversing. Park assist lines for both car and towbar
cannot be shown at the same time.
2. Press Zoom (2) when a more precise
manoeuvring is required.
> The camera view zooms in.
93 The illustration is schematic - details may vary depending on car model.
}}
* Option/accessory. 387
