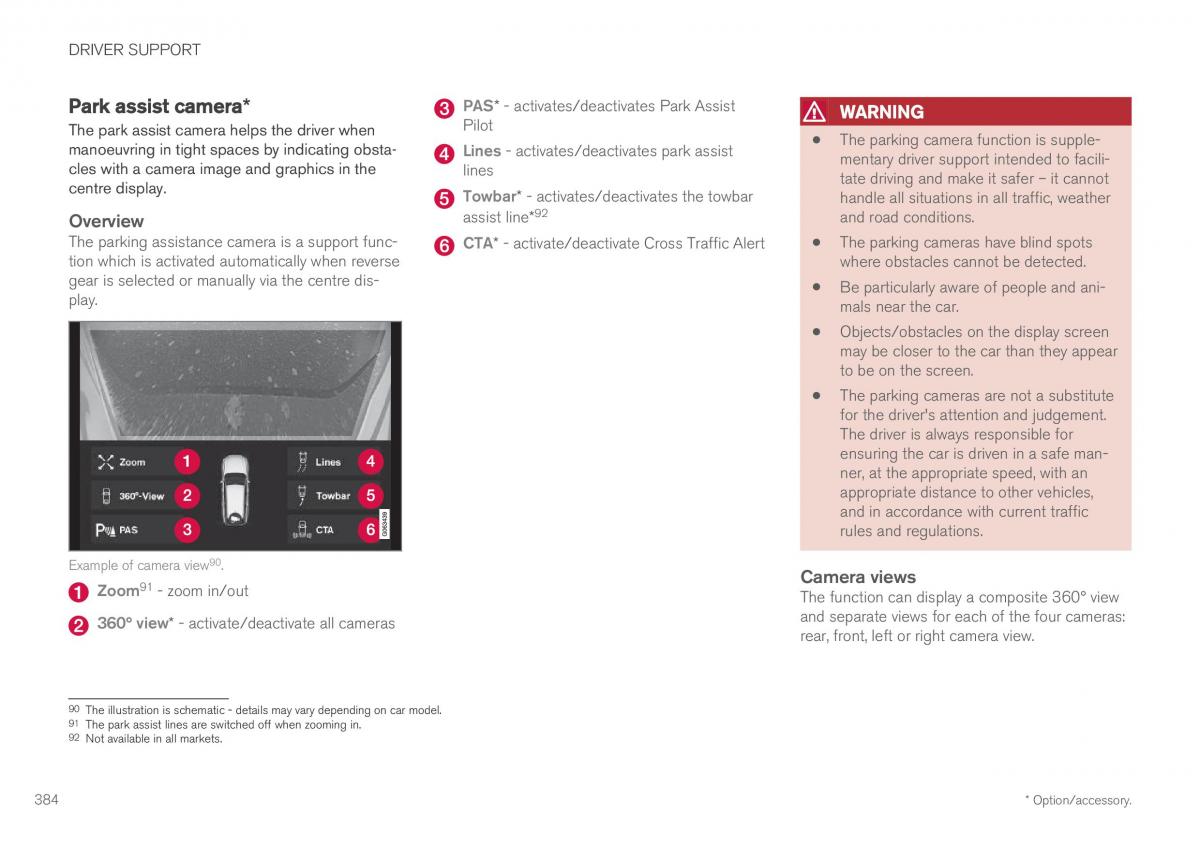

DRIVER SUPPORT
Park assist camera* PAS* - activates/deactivates Park Assist WARNING
The park assist camera helps the driver when Pilot
The parking camera function is supple-
manoeuvring in tight spaces by indicating obsta- Lines - activates/deactivates park assist •
cles with a camera image and graphics in the lines mentary driver support intended to facili-
centre display. tate driving and make it safer – it cannot
Towbar* - activates/deactivates the towbar handle all situations in all traffic, weather
Overview assist line*92 and road conditions.
The parking assistance camera is a support func- CTA* - activate/deactivate Cross Traffic Alert The parking cameras have blind spots
•
tion which is activated automatically when reverse where obstacles cannot be detected.
gear is selected or manually via the centre dis- Be particularly aware of people and ani-
play. •
mals near the car.
Objects/obstacles on the display screen
•
may be closer to the car than they appear
to be on the screen.
The parking cameras are not a substitute
•
for the drivers attention and judgement.
The driver is always responsible for
ensuring the car is driven in a safe man-
ner, at the appropriate speed, with an
appropriate distance to other vehicles,
and in accordance with current traffic
rules and regulations.
90
Example of camera view . Camera views
91
Zoom - zoom in/out The function can display a composite 360° view
360° view* - activate/deactivate all cameras and separate views for each of the four cameras:
rear, front, left or right camera view.
90 The illustration is schematic - details may vary depending on car model.
91 The park assist lines are switched off when zooming in.
92 Not available in all markets.
384 * Option/accessory.
