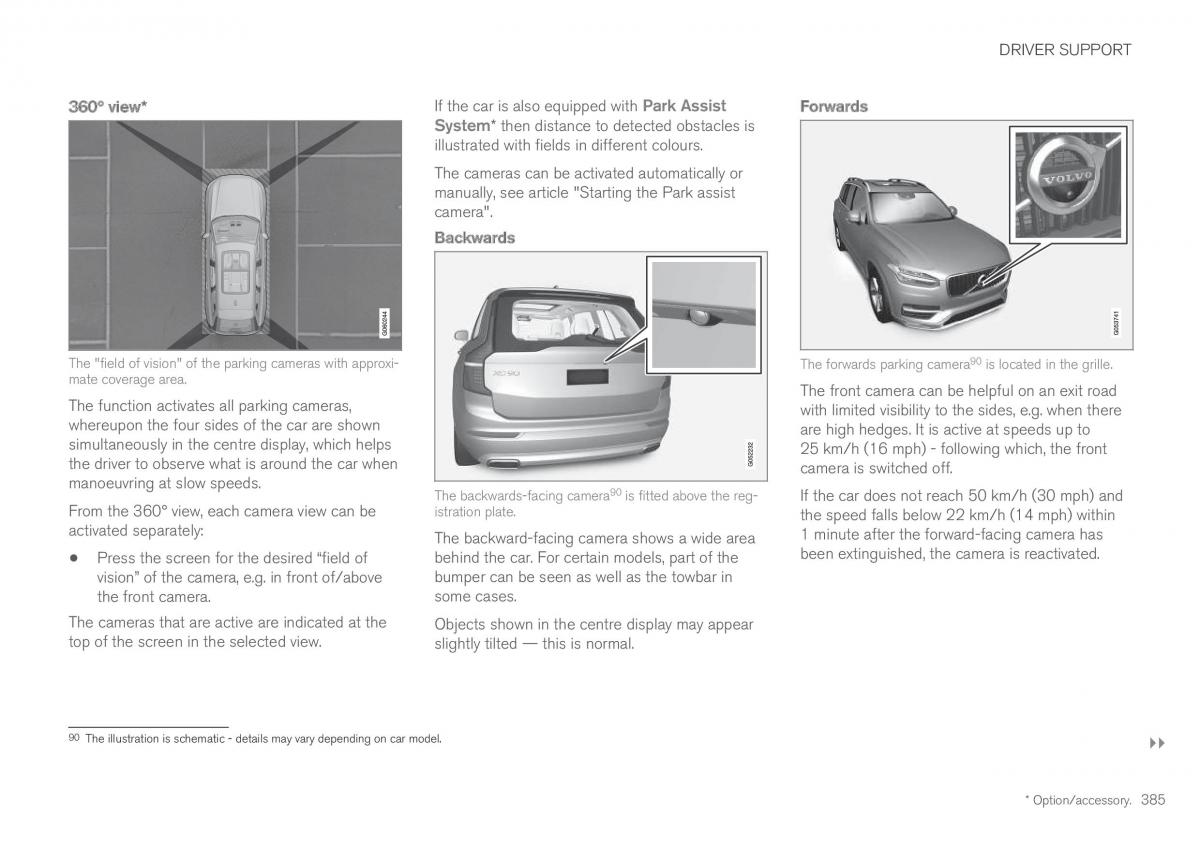

DRIVER SUPPORT
360° view* If the car is also equipped with Park Assist Forwards
System* then distance to detected obstacles is
illustrated with fields in different colours.
The cameras can be activated automatically or
manually, see article "Starting the Park assist
camera".
Backwards
The "field of vision" of the parking cameras with approxi- 90
The forwards parking camera is located in the grille.
mate coverage area. The front camera can be helpful on an exit road
The function activates all parking cameras, with limited visibility to the sides, e.g. when there
whereupon the four sides of the car are shown are high hedges. It is active at speeds up to
simultaneously in the centre display, which helps 25 km/h (16 mph) - following which, the front
the driver to observe what is around the car when camera is switched off.
manoeuvring at slow speeds. 90
The backwards-facing camera is fitted above the reg-If the car does not reach 50 km/h (30 mph) and
From the 360° view, each camera view can be istration plate. the speed falls below 22 km/h (14 mph) within
activated separately: The backward-facing camera shows a wide area 1 minute after the forward-facing camera has
Press the screen for the desired “field of behind the car. For certain models, part of the been extinguished, the camera is reactivated.
•
vision” of the camera, e.g. in front of/above bumper can be seen as well as the towbar in
the front camera. some cases.
The cameras that are active are indicated at the Objects shown in the centre display may appear
top of the screen in the selected view. slightly tilted — this is normal.
90 The illustration is schematic - details may vary depending on car model.
}}
* Option/accessory. 385
