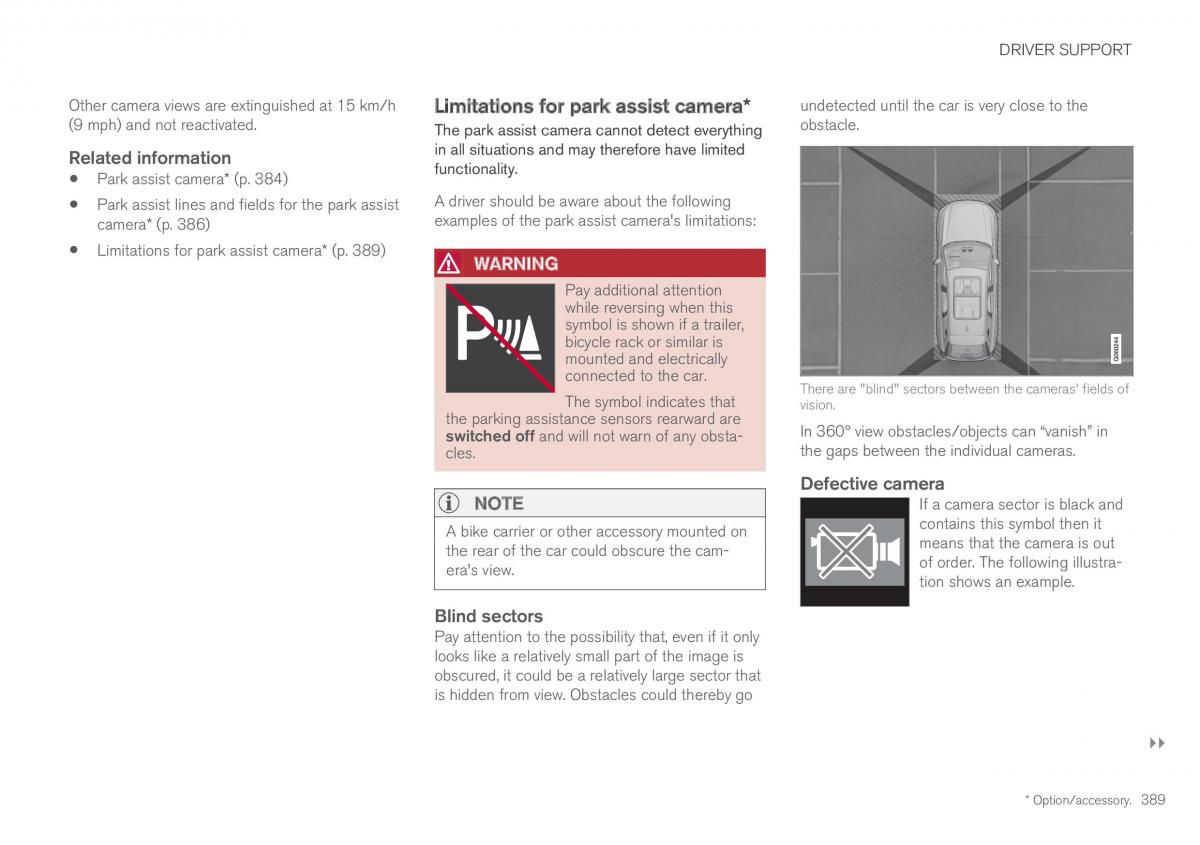

DRIVER SUPPORT
Other camera views are extinguished at 15 km/hLimitations for park assist camera*undetected until the car is very close to the
(9 mph) and not reactivated. The park assist camera cannot detect everythingobstacle.
Related information in all situations and may therefore have limited
Park assist camera* (p. 384) functionality.
•
Park assist lines and fields for the park assistA driver should be aware about the following
•
camera* (p. 386) examples of the park assist cameras limitations:
• Limitations for park assist camera* (p. 389)WARNING
Pay additional attention
while reversing when this
symbol is shown if a trailer,
bicycle rack or similar is
mounted and electrically
connected to the car.
The symbol indicates thatThere are "blind" sectors between the cameras fields of
vision.
the parking assistance sensors rearward areIn 360° view obstacles/objects can “vanish” in
switched off and will not warn of any obsta-
cles. the gaps between the individual cameras.
Defective camera
NOTE If a camera sector is black and
A bike carrier or other accessory mounted on contains this symbol then it
the rear of the car could obscure the cam- means that the camera is out
eras view. of order. The following illustra-
tion shows an example.
Blind sectors
Pay attention to the possibility that, even if it only
looks like a relatively small part of the image is
obscured, it could be a relatively large sector that
is hidden from view. Obstacles could thereby go
}}
* Option/accessory. 389
