text version of content this owner's manual page from owners manual to the vehicle Suzuki Vitara, year of production 2015:

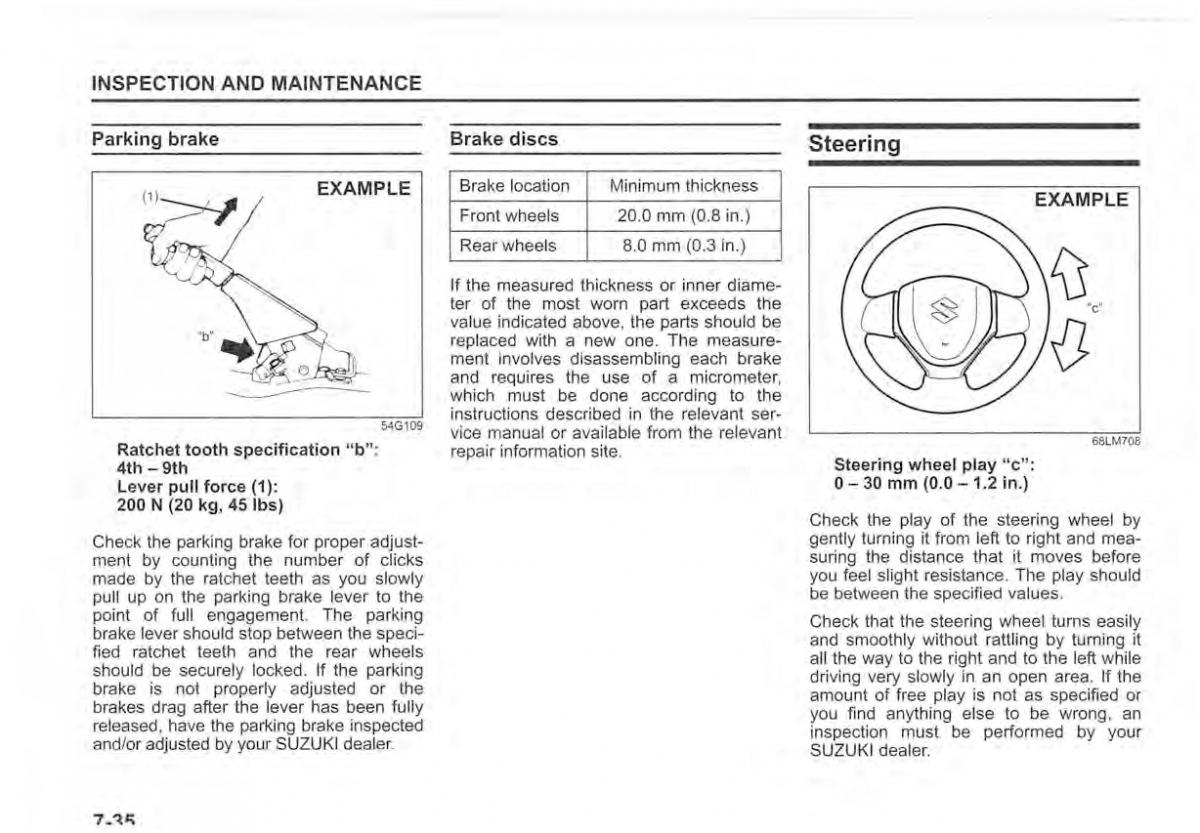

INSPECTION AND MAINTENANCE Parking brake Brake discs Steering EXAMPLE Brake location Minimum thickness EXAMPLE Front wheels 20.0 mm (0.8 in.) Rear wheels 8.0 mm (0.3 in.) If the measured thickness or inner diame- ter of the most worn part exceeds the value indicated above, the parts should be replaced with a new one. The measure- ment involves disassembling each brake and requires the use of a micrometer, which must be done according to the instructions described 54G109 in the relevant ser- Ratchet tooth specification "b": vice manual or available from the relevant 68LM708 4th - 9th repair information site. Steering wheel play "c": Lever pull force (1): 0-30 mm (0.0 -1.2 in.) 200 N (20 kg, 45 Ibs) Check the play of the steering wheel by Check the parking brake for proper adjust- gently turning it from left to right and mea- ment by counting the number of clicks suring the distance that it moves before made by the ratchet teeth as you slowly you feel slight resistance. The play should pull up on the parking brake lever to the be between the specified values. point of full engagement. The parking Check that the steering wheel turns easily brake lever should stop between the speci- and smoothly without rattling by turning it fied ratchet teeth and the rear wheels all the way to the right and to the left while should be securely locked. If the parking driving very slowly in an open area. If the brake is not properly adjusted or the amount brakes drag after the lever has been fully of free play is not as specified or released, have the parking brake inspected you find anything else to be wrong, an and/or adjusted by your SUZUKI dealer. inspection must be performed by your SUZUKI dealer.
