text version of content this owner's manual page from owners manual to the vehicle Suzuki Vitara, year of production 2015:

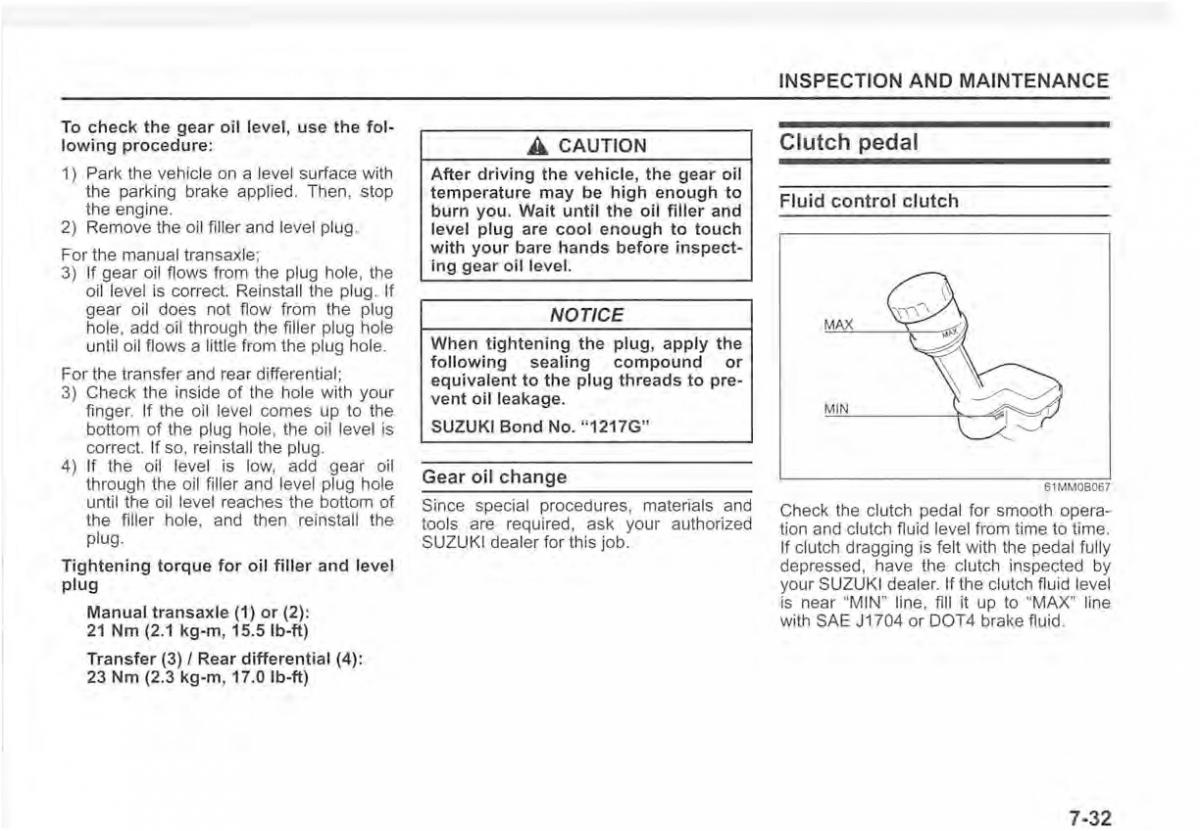

INSPECTION AND MAINTENANCE To check the gear oil level, use the fol- Clutch pedal procedure: lowing A CAUTION 1) Park the vehicle on a level surface with After driving the vehicle, the gear oil the parking brake applied. Then, stop temperature may be high enough to Fluid control clutch the engine. burn you. Wait until the oil filler and 2) Remove the oil filler and level plug. level plug are cool enough to touch For the manual transaxle; with your bare hands before inspect- oil level. 3) If gear oil flows from the plug hole, the ing gear oil level is correct. Reinstall the plug. If gear oil does not flow from the plug NOTICE MAX hole, add oil through the filler plug hole When tightening the plug, apply the a little from the plug hole. until oil flows following sealing compound or For the transfer and rear differential; equivalent to the plug threads to pre- 3) Check the inside of the hole with your oil leakage. finger. If the oil level comes up to the vent MIN bottom of the plug hole, the oil level is SUZUKI Bond No. "1217G" correct. If so, reinstall the plug. 4) If the oil level is low, add gear oil Gear oil change through the oil filler and level plug hole 61MMOB067 until the oil level reaches the bottom of Since special procedures, materials and Check the clutch pedal for smooth opera- the filler hole, and then reinstall the tools are required, ask your authorized tion and clutch fluid level from time to time. plug. SUZUKI dealer for this job. If clutch dragging is felt with the pedal fully Tightening torque for oil filler and level depressed, have the clutch inspected by plug your SUZUKI dealer. If the clutch fluid level Manual transaxle (1) or (2): is near "MIN" line, fill it up to "MAX" line 21 Nm (2.1 kg-m, 15.5 Ib-ft) with SAE J1704 or 00T4 brake fluid. Transfer (3) I Rear differential (4): 23 Nm (2.3 kg-m, 17.0 Ib-ft) 7-32
