text version of content this owner's manual page from owners manual to the vehicle Suzuki Vitara, year of production 2015:

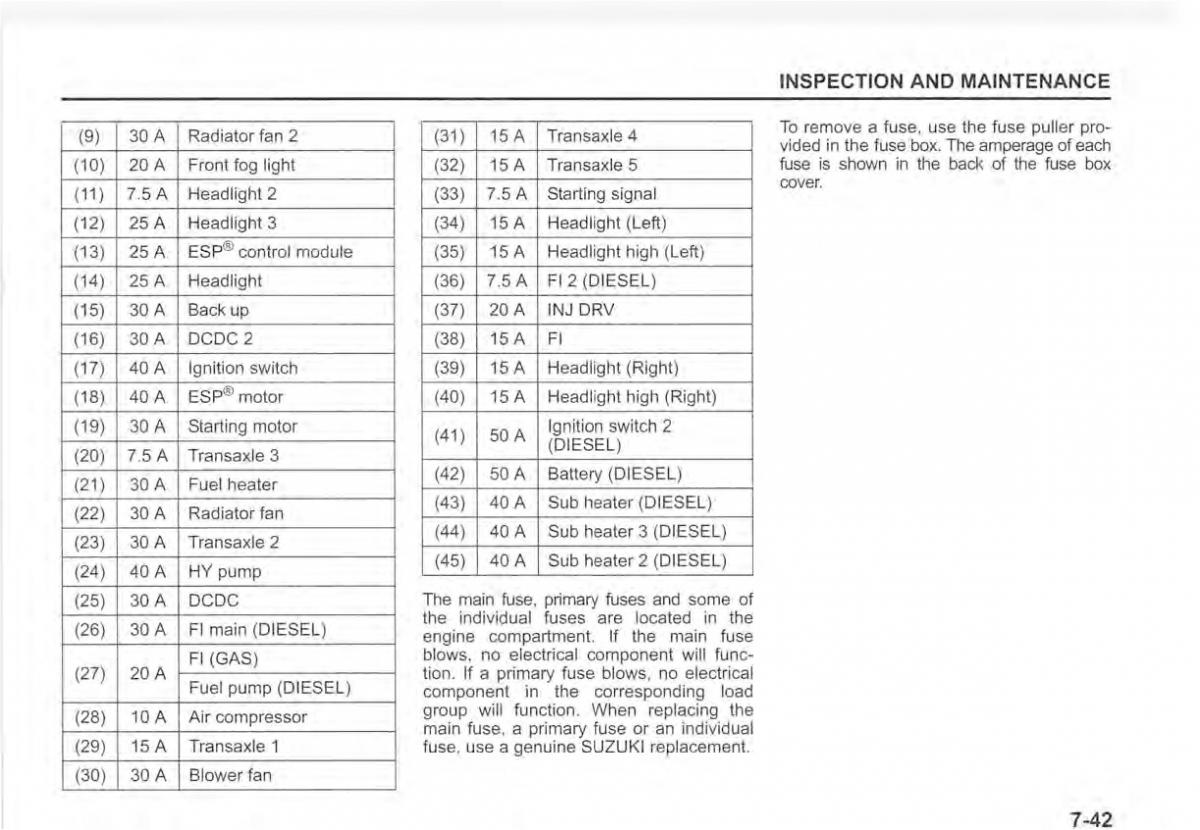

INSPECTION AND MAINTENANCE 30 A Radiator fan 2 (31 ) 15 A Transaxle 4 To remove a fuse, use the fuse puller pro- (9) vided in the fuse box. The amperage of each (10) 20 A Front fog light (32) 15 A Transaxle 5 fuse is shown in the back of the fuse box (11 ) 7.5 A Headlight 2 (33) 7.5 A Starting signal cover. (12) 25A Headlight 3 (34) 15 A Headlight (Left) (13) 25A ESP® control module (35) 15 A Headlight high (Left) (14) 25A Headlight (36) 7.5 A FI 2 (DIESEL) (15) 30A Back up (37) 20A INJ DRV (16) 30A DC DC 2 (38) 15 A FI (17) 40A Ignition switch (39) 15 A Headlight (Right) (18) 40 A ESP® motor (40) 15 A Headlight high (Right) (19) 30 A Starting motor (41 ) 50A Ignition switch 2 (20) 7.5 A Transaxle 3 (DIESEL) Battery (21 ) 30A Fuel heater (42) 50 A (DIESEL) (22) 30A Radiator fan (43) 40 A Sub heater (DIESEL) (23) 30 A Transaxle 2 (44) 40A Sub heater 3 (DIESEL) (24) 40 A HY pump (45) 40A Sub heater 2 (DIESEL) (25) 30 A DCDC The main fuse, primary fuses and some of (26) 30 A FI main (DIESEL) the individual fuses are located in the If the main fuse engine compartment. FI (GAS) blows, no electrical component will func- (27) 20A Fuel pump (DIESEL) tion. If a primary fuse blows, no electrical component in the corresponding load (28) 10 A Air compressor group will function. When replacing the main fuse, a primary fuse or an individual (29) 15 A Transaxle 1 fuse, use a genuine SUZUKI replacement. (30) 30 A Blower fan 7-42
