text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

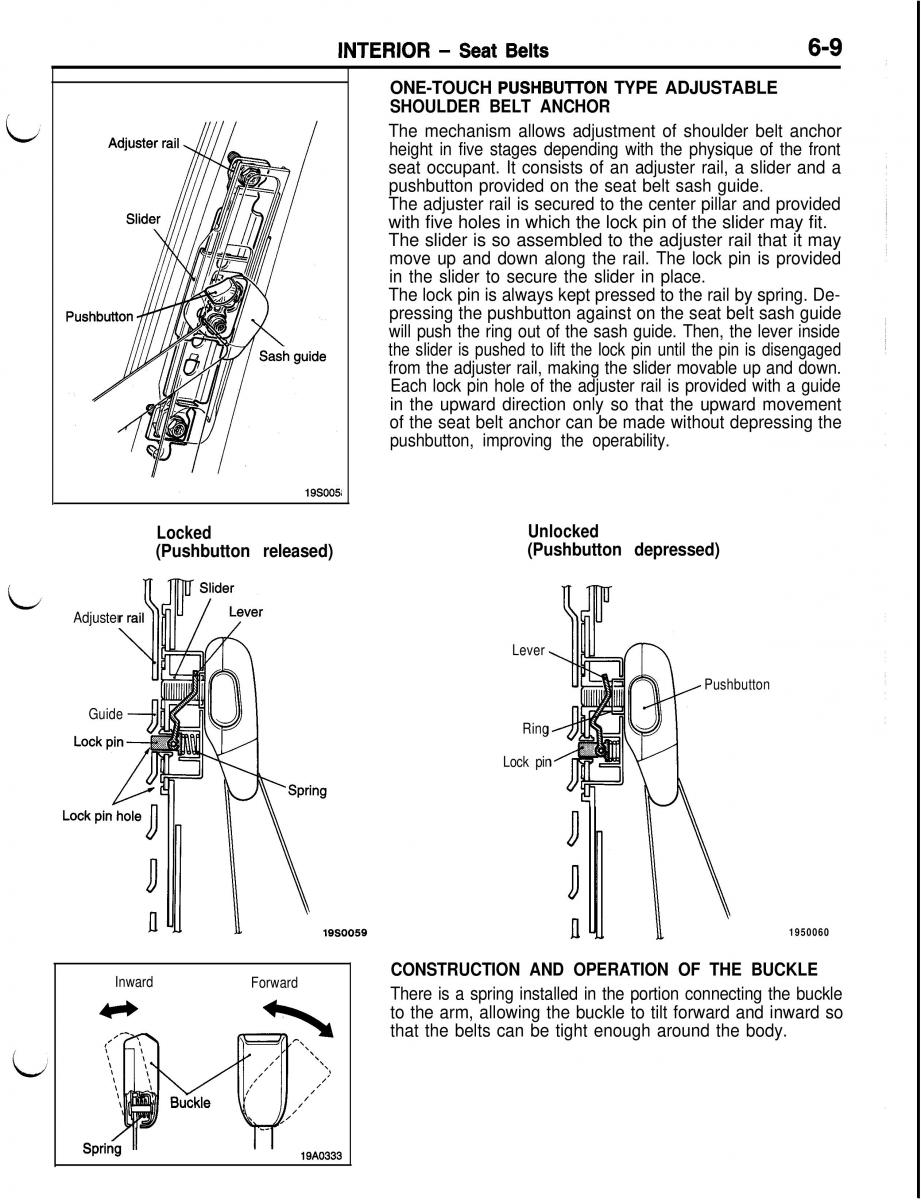

INTERIOR - Seat Belts 6-9 ONE-TOUCH PUSHBUlTON TYPE ADJUSTABLE SHOULDER BELT ANCHOR The mechanism allows adjustment of shoulder belt anchor height in five stages depending with the physique of the front seat occupant. It consists of an adjuster rail, a slider and a pushbutton provided on the seat belt sash guide. The adjuster rail is secured to the center pillar and provided with five holes in which the lock pin of the slider may fit. The slider is so assembled to the adjuster rail that it may move up and down along the rail. The lock pin is provided in the slider to secure the slider in place. The lock pin is always kept pressed to the rail by spring. De- pressing the pushbutton against on the seat belt sash guide will push the ring out of the sash guide. Then, the lever inside the slider is pushed to lift the lock pin until the pin is disengaged from the adjuster rail, making the slider movable up and down. Each lock pin hole of the adjuster rail is provided with a guide in the upward direction only so that the upward movement of the seat belt anchor can be made without depressing the pushbutton, improving the operability. Locked Unlocked (Pushbutton released) (Pushbutton depressed) Adjuster rail 4 Lever Pushbutton Guide Ring Lock pin 1950060 Inward Forward CONSTRUCTION AND OPERATION OF THE BUCKLE There is a spring installed in the portion connecting the buckle to the arm, allowing the buckle to tilt forward and inward so that the belts can be tight enough around the body.
