text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

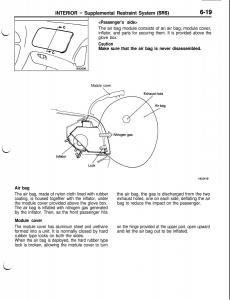

INTERIOR - Supplemental Restraint System(SW) 6-19 The air bag module consists of an air bag, module cover, inflator, and parts for securing them. It is provided above the glove box. Caution Make sure that the air bag is never disassembled. Module cover Lock / 191-0419 Air bag The air bag, made of nylon cloth lined with rubberthe air bag, the gas is discharged from the two coating, is housed together with the inflator, underexhaust holes, one on each side, deflating the air the module cover provided above the glove box.bag to reduce the impact on the passenger. The air bag is inflated with nitrogen gas generated by the inflator. Then, as the front passenger hits Module cover The module cover has aluminum sheet and urethaneon the hinge provided at the upper part, open upward and let the air bag out to be inflated. formed into a unit. It is normally closed by hard rubber type locks on both the sides. When the air bag is deployed, the hard rubber type lock is broken, allowing the module cover to turn
