text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

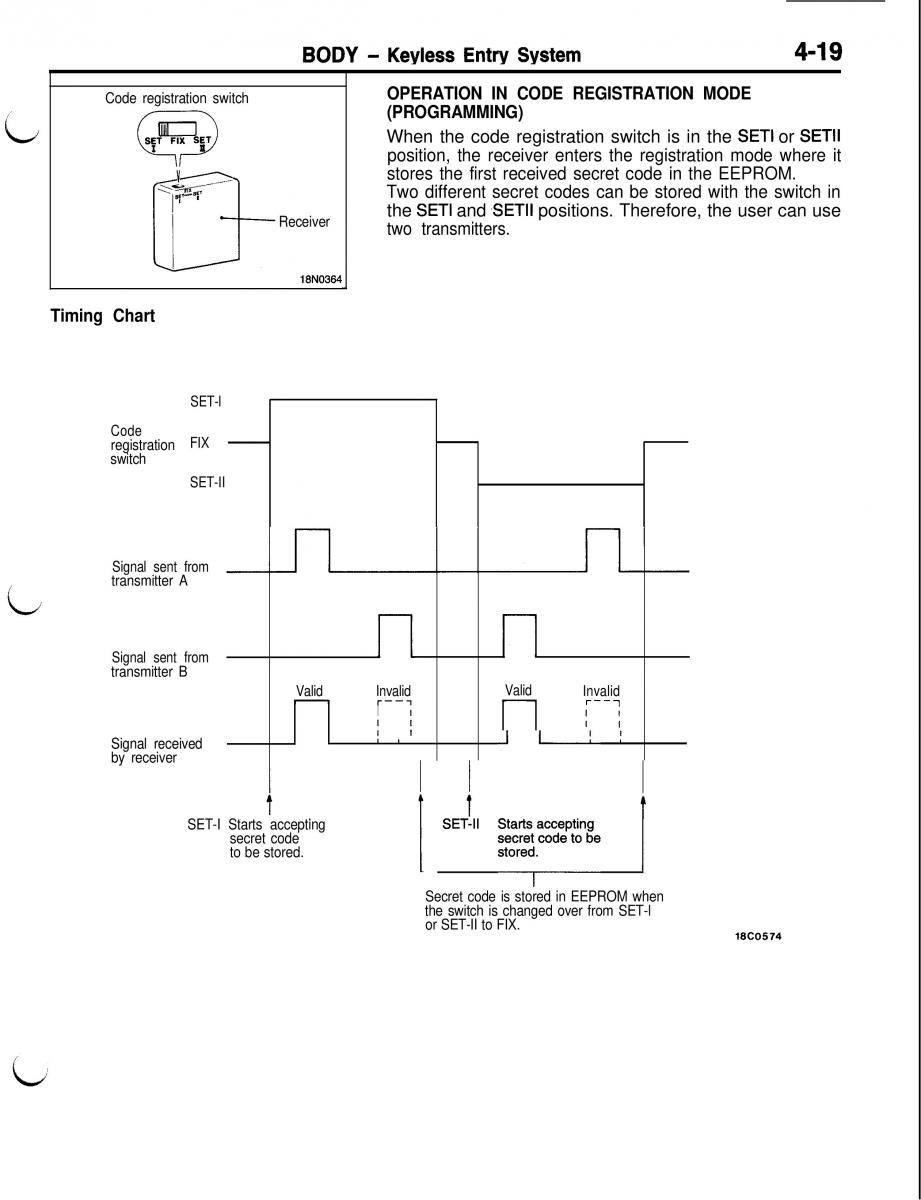

BODY - Keyless Entry System 4-19 Code registration switch OPERATION IN CODE REGISTRATION MODE /’ (PROGRAMMING) L When the code registration switch is in theSETI or SETII position, the receiver enters the registration mode where it V stores the first received secret code in the EEPROM. *-<-- Two different secret codes can be stored with the switch in I *T-"s Receiver the SETI and ,SETII positions. Therefore, the user can use L3 two transmitters. 18N0384 Timing Chart SET-l Code FIX registration switch SET-II Signal sent from L transmitter A Signal sent from transmitter B Valid Invalid Valid Invalid - r--7 r--q I I I I I I I I Signal received I by receiver 1 ’ ’ ’ i sE!ll “:‘-; ! / SET-I Starts accepting secret code to be stored. Secret code is stored in EEPROM when the switch is changed over from SET-l or SET-II to FIX. *EC0574
